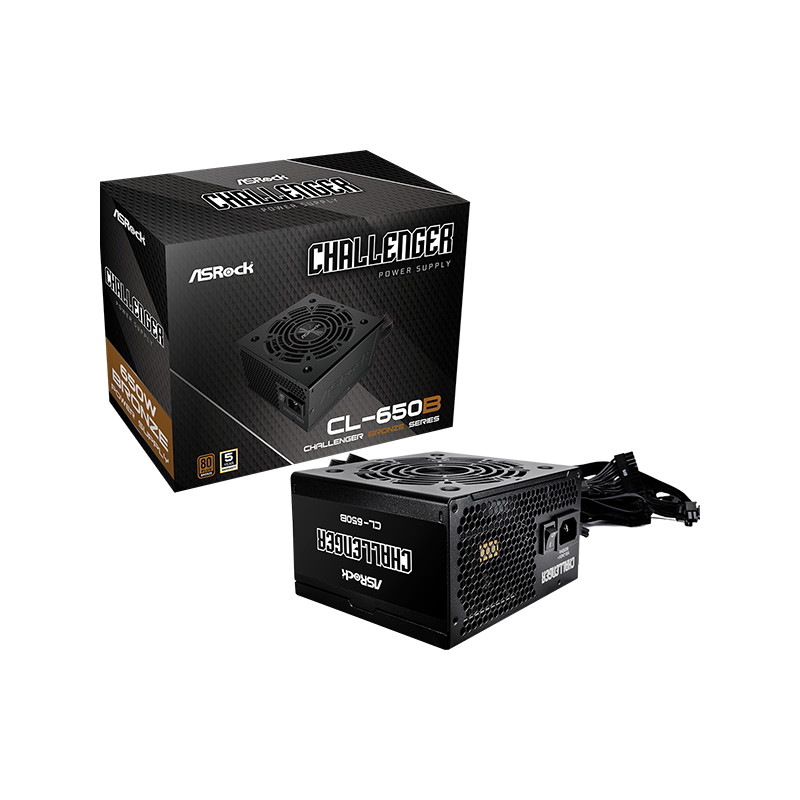

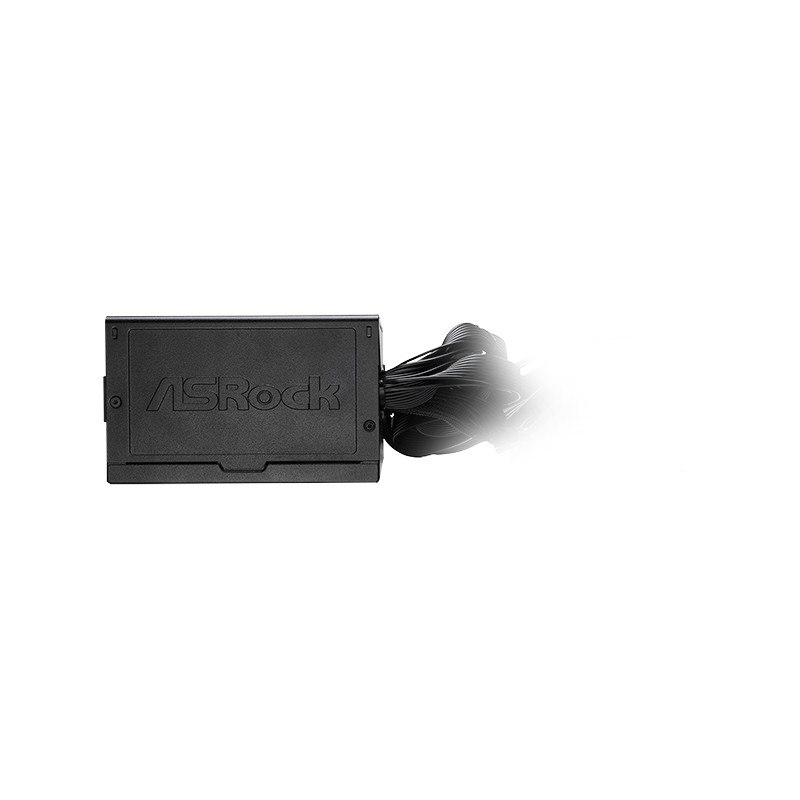

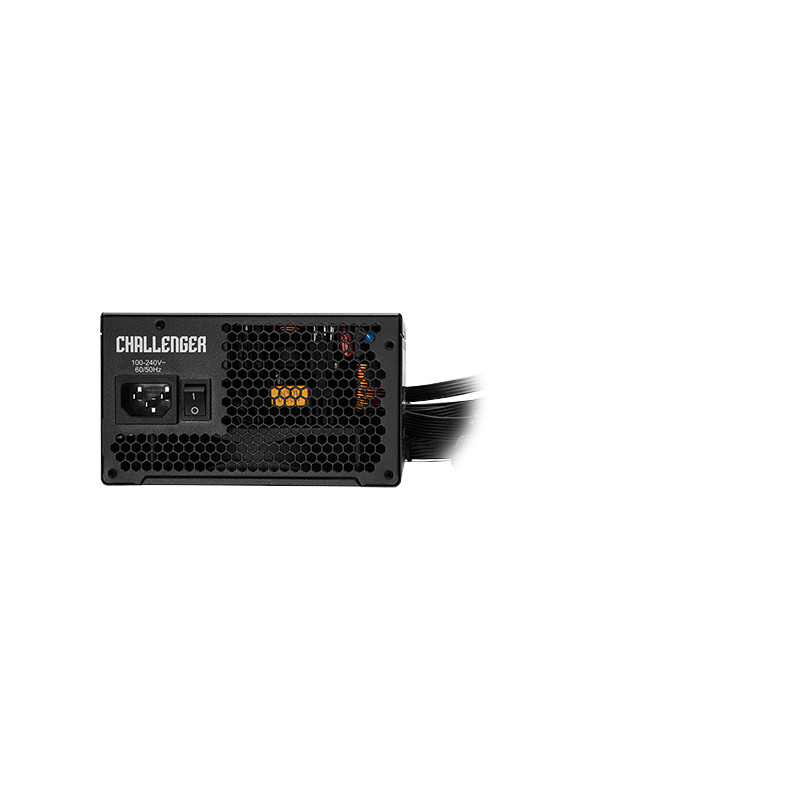

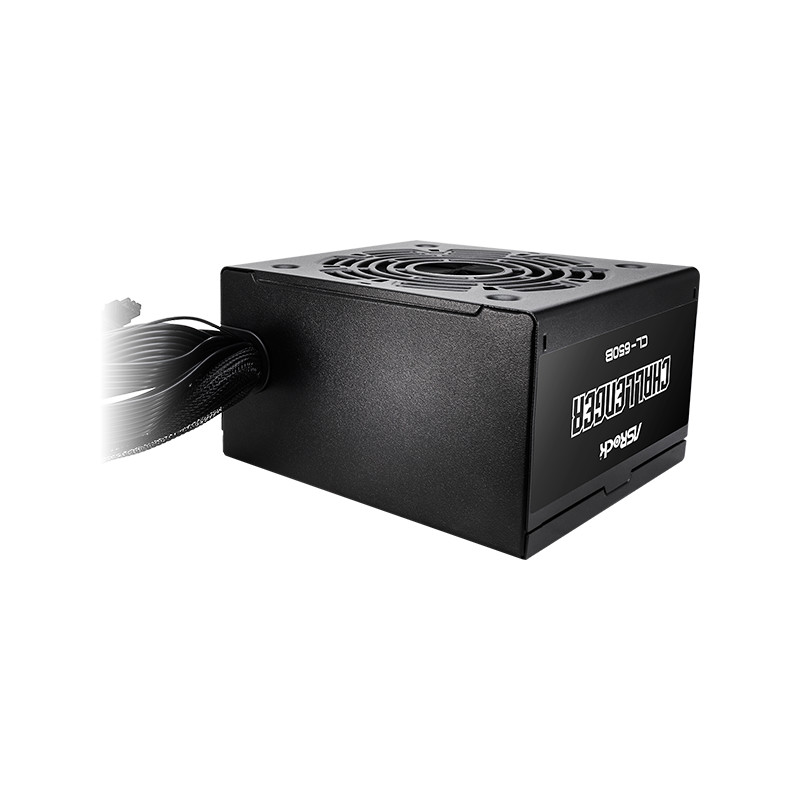

ASRock Challenger Series CL-650B 650W ATX 80+ Bronze black

Main Specifications
80 Plus Efficiency: BRONZE
ATX 12V Version: ATX 2.52
ATX: ATX 2.52
Continuous 12V Output: 54.2A
Warranty (Years): 5
Dimensions (L x W x H): 140mm x 150mm x 86mm

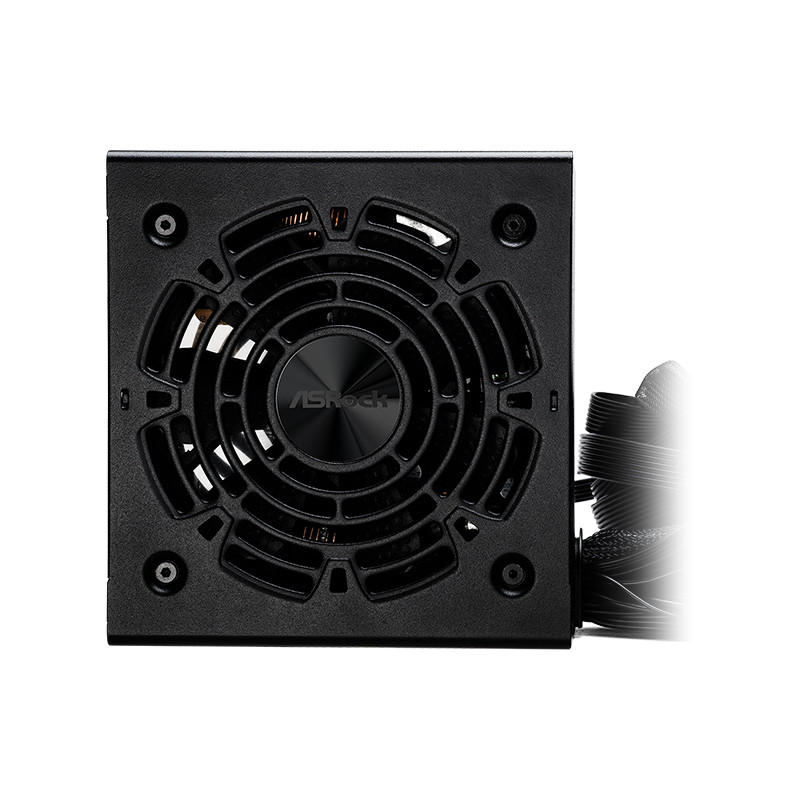

Fan: 120mm Golf Blade Sleeve Fan
iCOOL MODE: NO
Protection: OCP, SCP, OVP, UVP, OTP, OPP
Capacitors: All Taiwanese
5V Boost: Yes (Built-in)
PCIe 5.1 Cable TempGuard: NO
Total Power Variation: 130%
MTBF (Hours) at 25°C: 100,000
Cable Type: 24-pin: Sleeved, Other: Flat
Motherboard cable (24-pin): 1
EPS 12V CPU connectors (4+4-pin): 1
PCIe 5.1 connectors (12+4-pin) Dual Color: 0
PCIe connectors (6+2-pin): 2
4-pin peripheral connectors: 2
SATA 5-pin connectors: 4
All specifications are subject to change without notice.
Power
Energy protection features: Overheating, overcurrent, overload protection, undervoltage, overvoltage, short circuit
Total power:
650 W
Connections and interfaces
Motherboard connectors:
20+4 pin ATX
Number of Molex 4-pin connectors:
2
CPU connectors (4+4 pin):
Yes
Number of SATA power connectors:
5
SATA power cable length:
120.450 mm
Motherboard power cable length:
60 cm
CPU power cable length:
65 cm
Number of PCI Express power connectors 6+2-pin
2
Specifications
Power Supply Unit (PSU) Form Factor
ATX
Mean Time Between Failures (MTBF)
100,000 h
80 Plus Certification
80 PLUS Bronze
Purpose
PC
ATX Version
2.52
Design
Number of Fans
1 Fan
Product Color
Black
Cooling
Active
Fan Diameter
12 cm
On/Off Switch
Yes
Weight and Dimensions
Depth
140 mm
Height
86 mm
Width
150 mm
