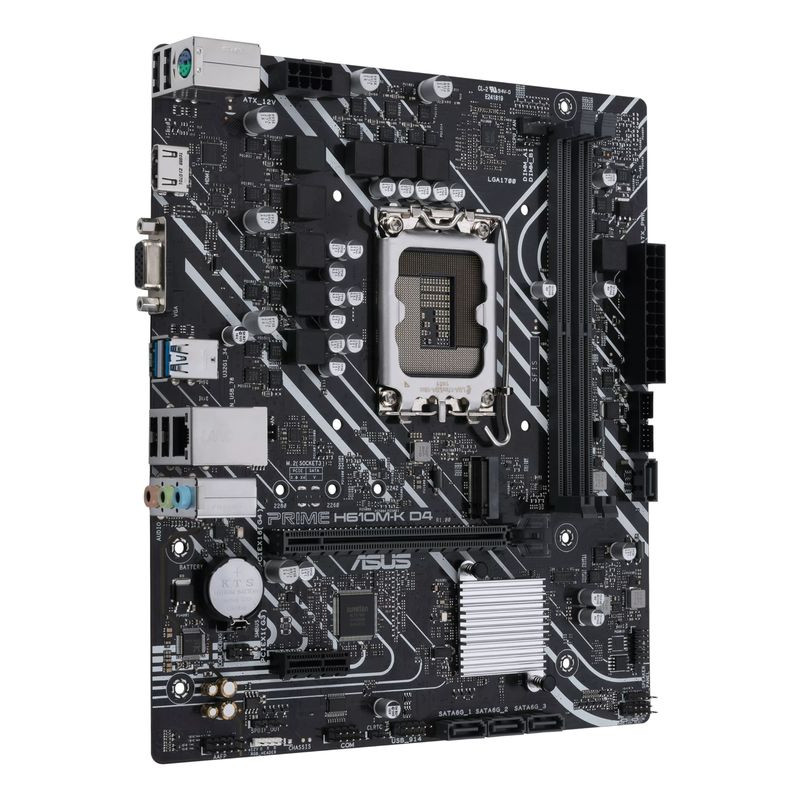

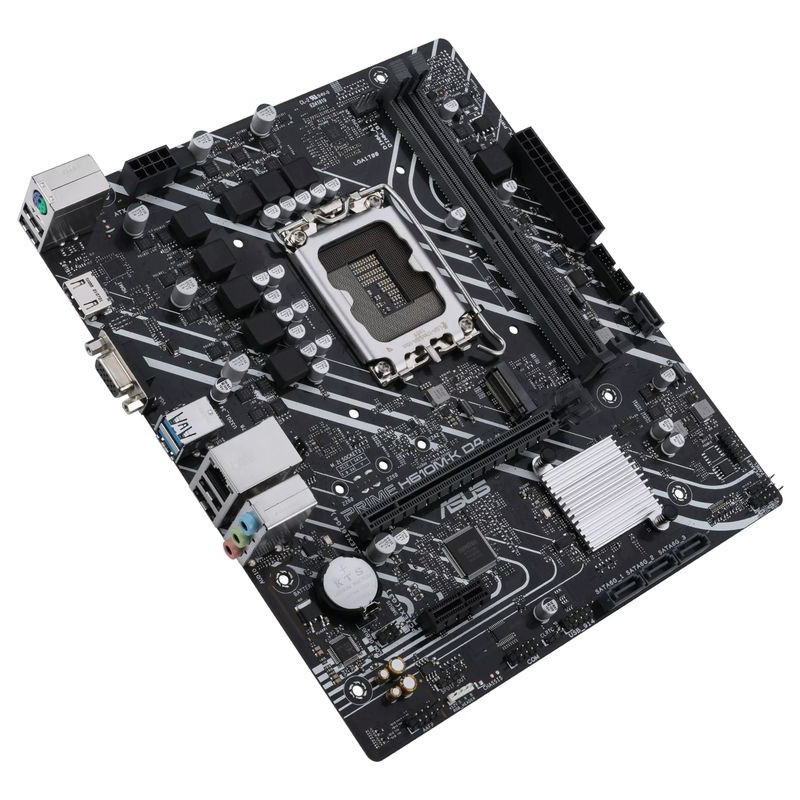

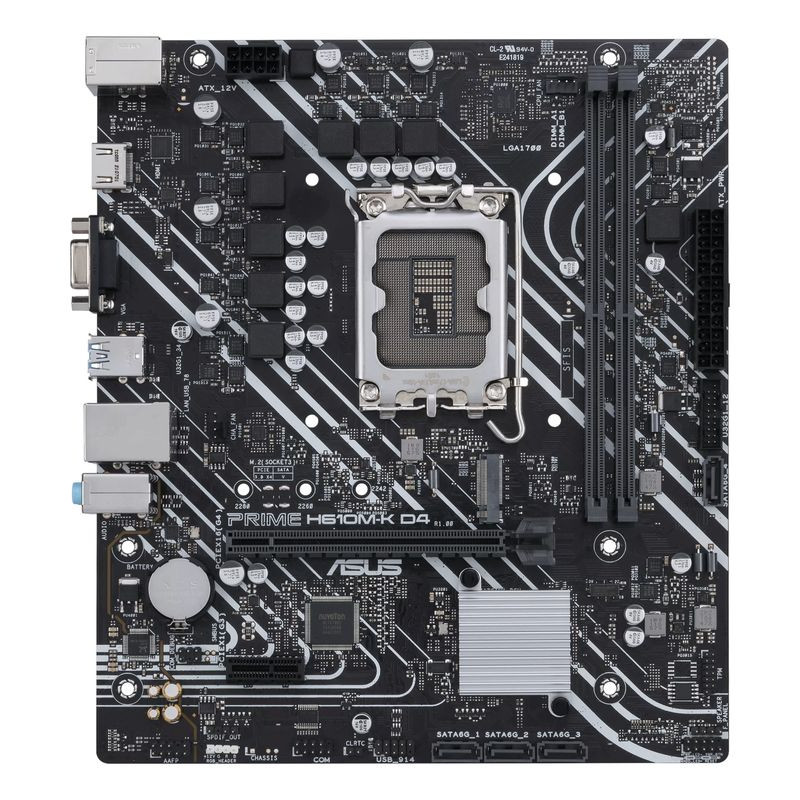

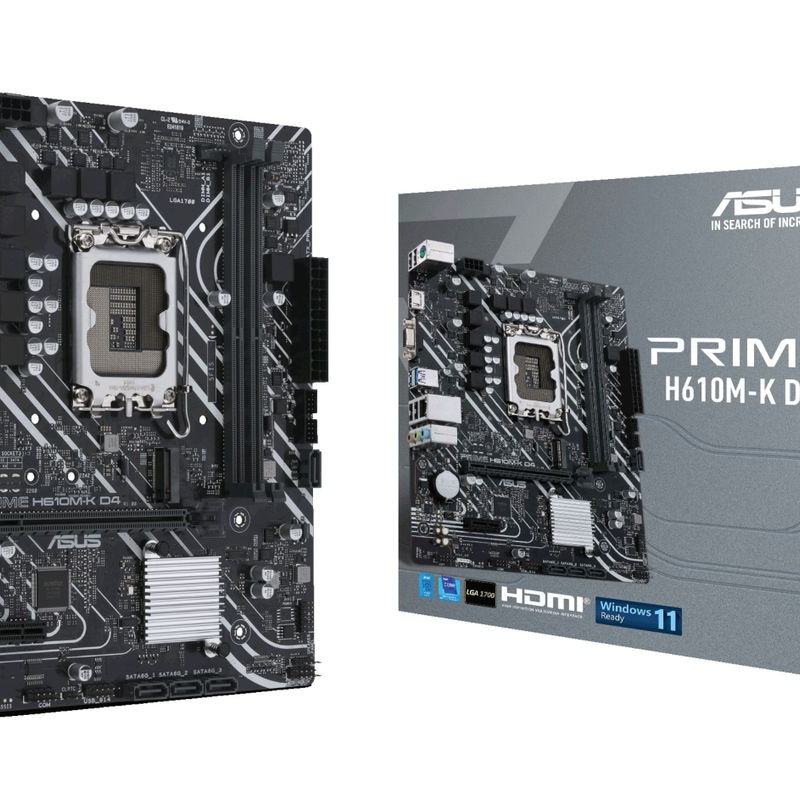

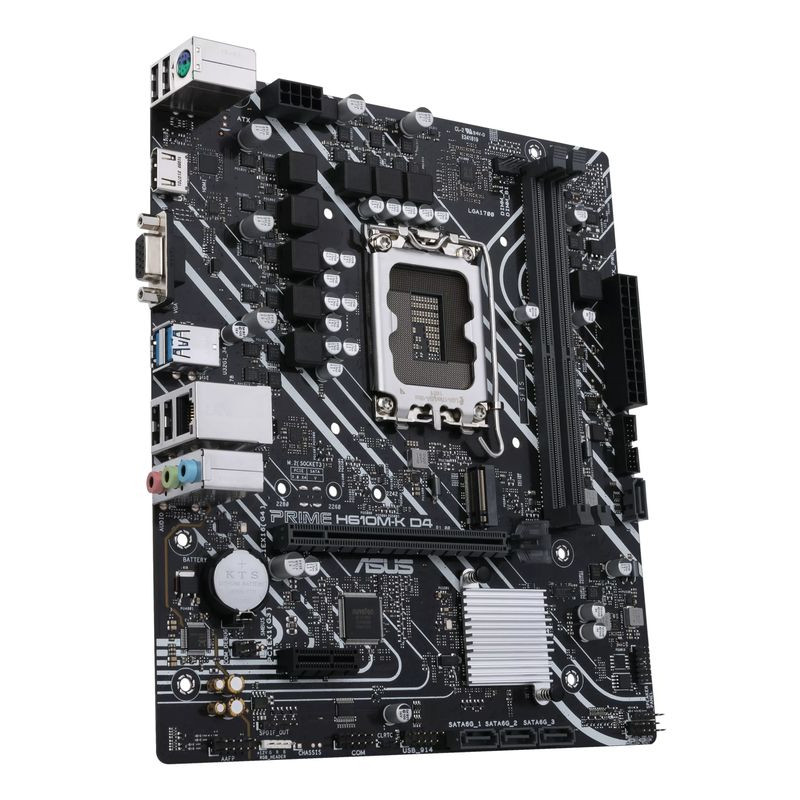

ASUS PRIME H610M-K D4 (INTEL,1700,DDR4,mATX)

Processor
Processor Socket
LGA 1700
Compatible Processors
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
Maximum Number of SMP Processors
1
Processor Manufacturer
Intel
Memory
Number of Memory Slots
2
Memory Channels
Dual Channel
Maximum RAM
64 GB
Unbuffered Memory
Yes
Memory Type
DIMM
ECC Compatibility
Non-ECC
Supported Memory Speeds
2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz
Supported Memory Types
DDR4 SDRAM
Memory Controllers
RAID Levels
0, 1, 5, 10
Supported Storage Interfaces
M.2, SATA
Supported Storage Drives
HDD & SSD
Graphics
Number of Displays Supported
2
Internal I/O Ports
Number of Chassis Fan Connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Ports
0
12V Power Connector
Yes
RGB LED Header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Ports
1
Front Panel Audio Connector
Yes
S/PDIF Out Connector
Yes
SATA III Ports
4
Number of COM Ports
1
Number of USB 2.0 Ports
1
ATX Power Connector (24-pin)
Yes
TPM Connector
Yes
EPS Power Connector (8-pin)
Yes
CPU Fan Connector
Yes

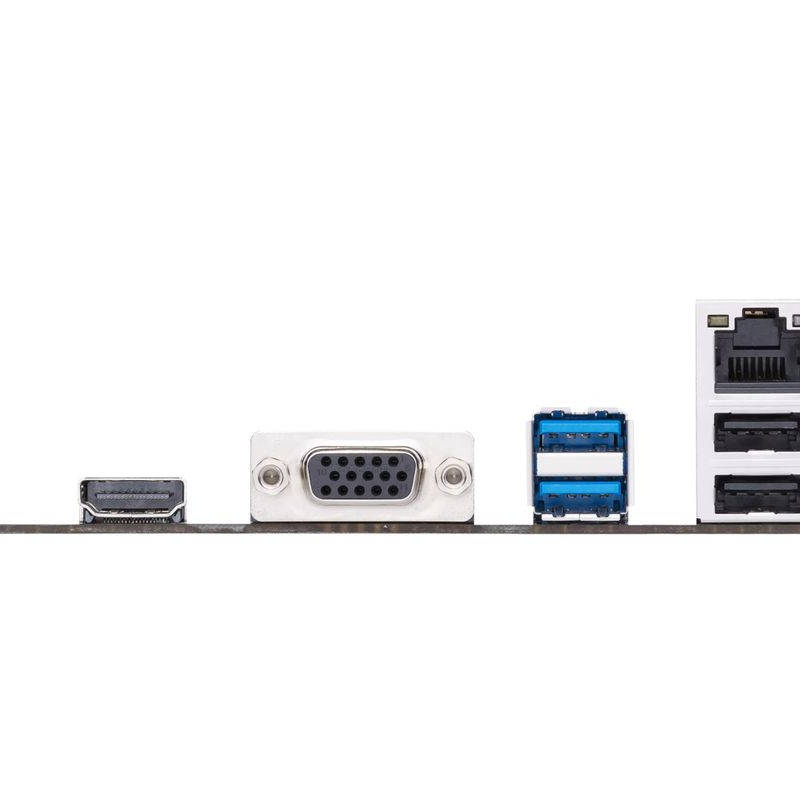

Rear I/O Ports
Number of DVI-D Ports
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports
0
Number of VGA (D-Sub) Ports
1
Number of USB 2.0 Ports
4
Headphone Outputs
1
HDMI Version
2.1
Microphone Input
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C Ports
0
PS/2 Ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-A Ports
2
Ethernet LAN Ports (RJ-45)
1
HDMI Ports
1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-A Ports
0
Network
Ethernet/LAN
Yes
WLAN
No
Ethernet Interface Type
Gigabit Ethernet
Features
Audio Channels
7.1 Channels
Supported Windows Operating Systems
Windows 10 x64, Windows 11 x64
Motherboard Chipset
Intel H610
Component for
PC
Motherboard Chipset Family
Intel
Motherboard Form Factor
micro ATX
Expansion Slots
PCI Express x16 (Gen 3.x) Connectors
1
Number of M.2 (M) Slots
1
PCI Express x16 (Gen 4.x) Slots
1
BIOS
BIOS Type
UEFI AMI
BIOS Memory Size
128 Mbit
Logistics Data
Commodity Tariff Number (HS)
84733020
Weight and Dimensions
Height
51 mm
Width
234 mm
Depth
203 mm
Included in the Box
Drivers Included
Yes
Cables Included
SATA
Other Features
Weight
842 g
