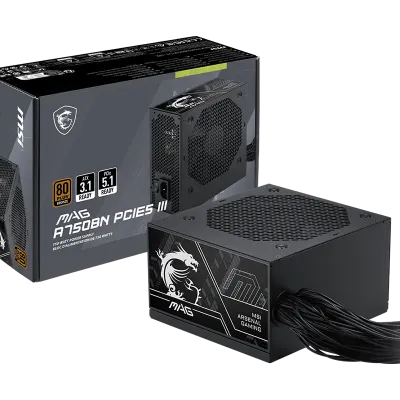

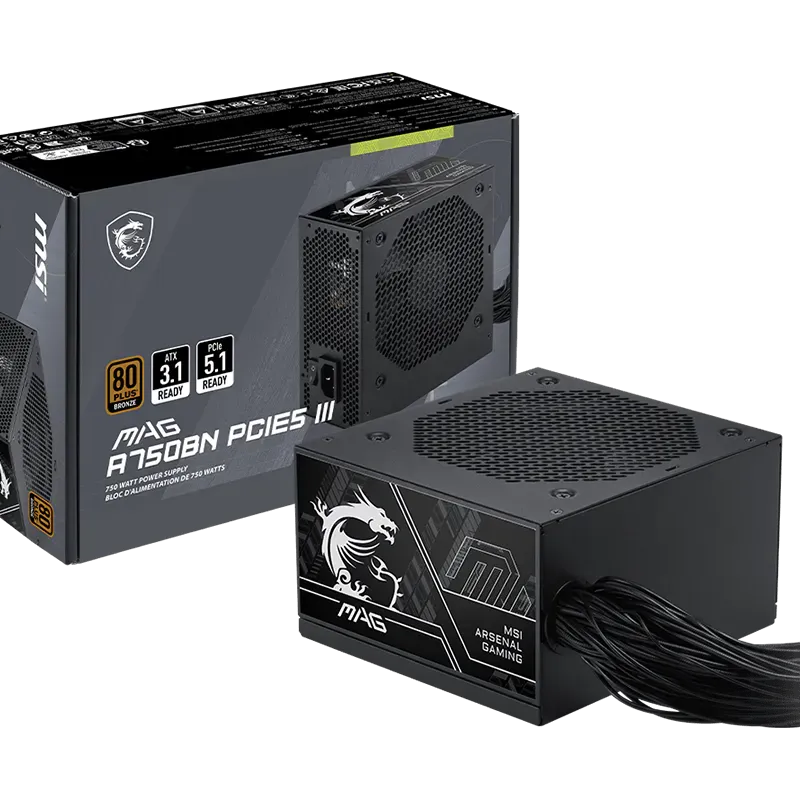

MSI MAG A750BN PCIE5 III 750Watt

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

80 PLUS BRONZE CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.

ATX 3.1 READY

It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.

Efficiency Rating

80 PLUS Bronze (up to 85%)

Modular

No

Fan Size

120 mm

Fan Bearing

Hydrualic Bearing

Dimensions (DxWxH)

140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches

PFC Type

Active PFC

Input Voltage Range

100-240V~

Power Watt

750W

Power Excursion

200%

Input Frequency Range

50-60Hz

Protection

OVP, OCP, SCP, OPP, UVP

ATX (24 pin)

1

EPS (4+4 pin)

2

PCI-E 5.1 (16 pin)

1 (450W)

PCI-E (6+2 pin)

3

SATA (15 pin)

3

PERIPHERAL (4 pin)

2
