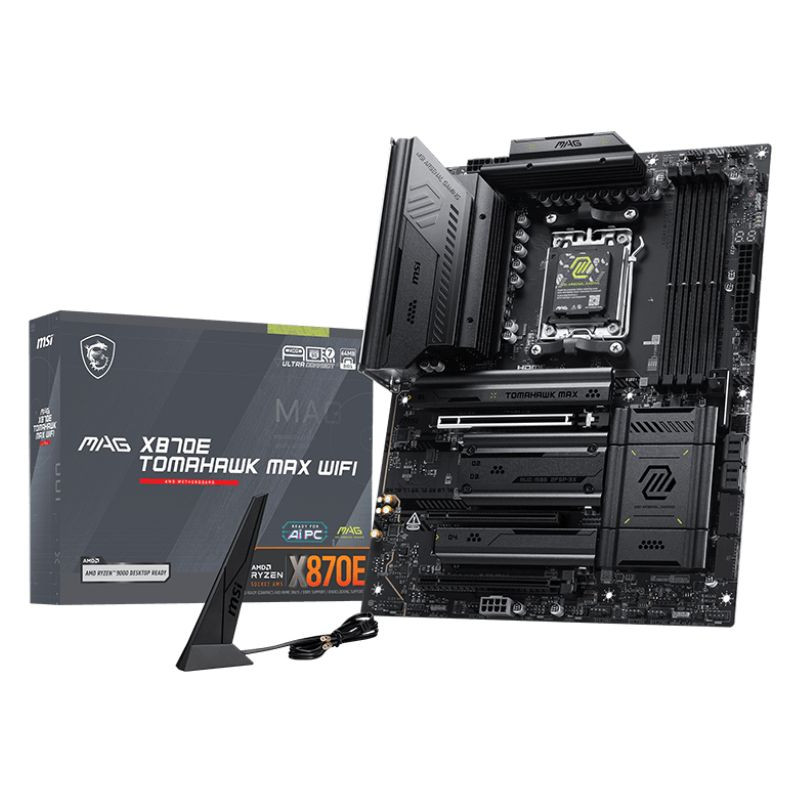

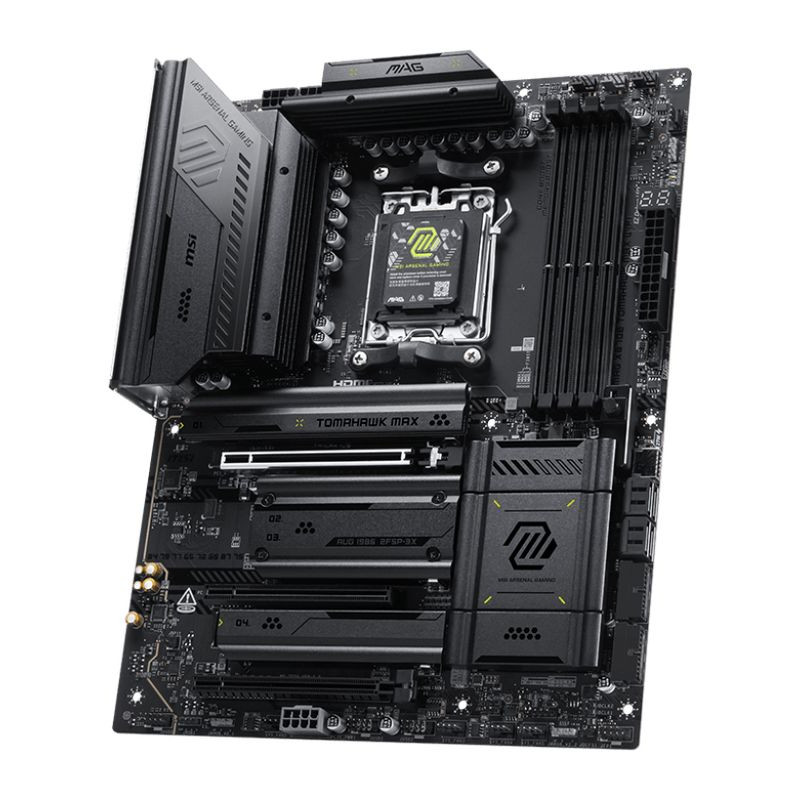

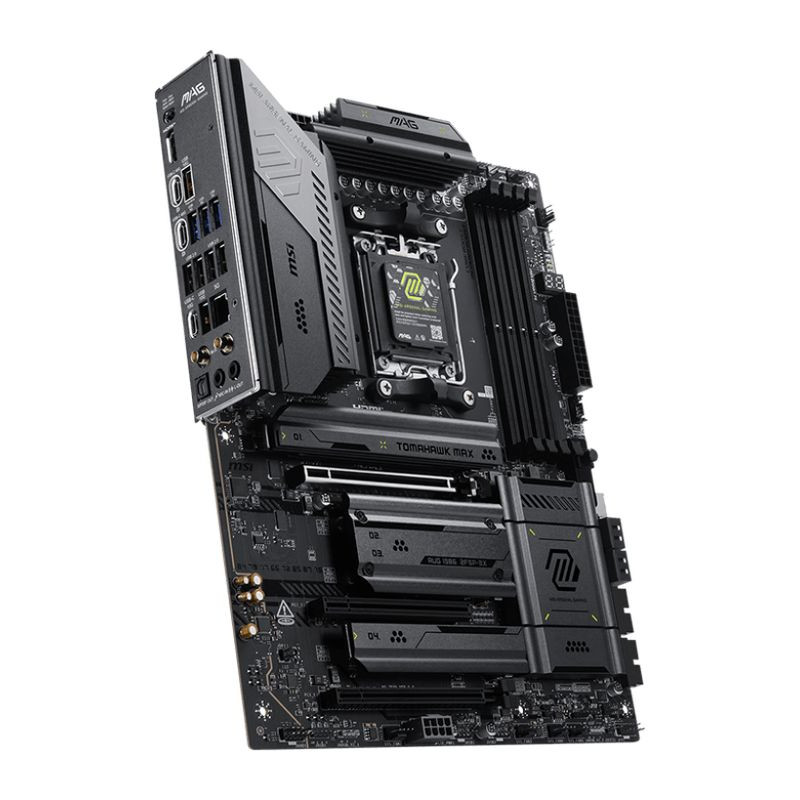

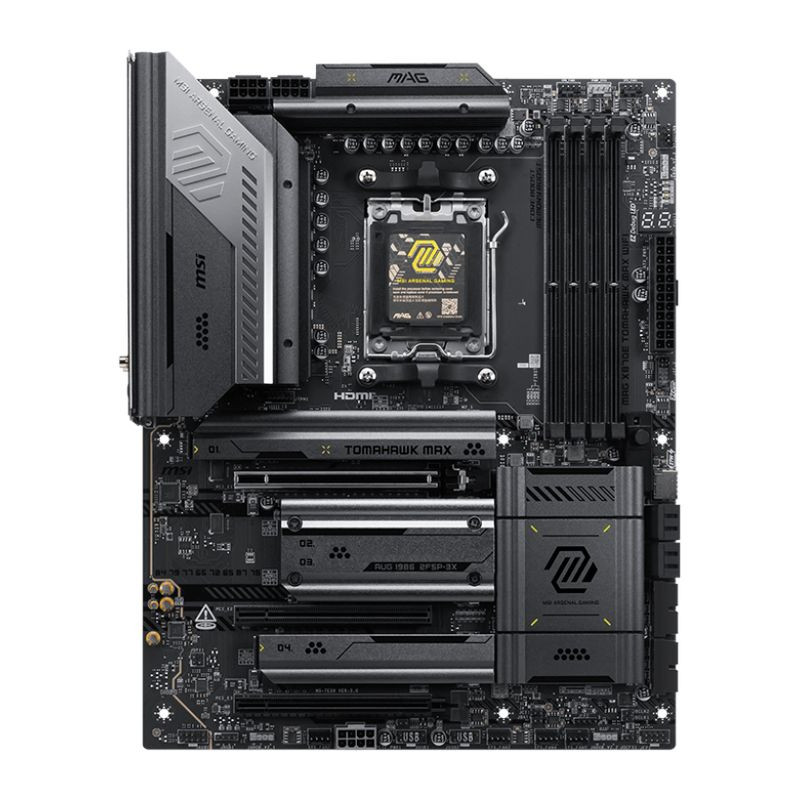

MSI MAG X870E Tomahawk Max WiFi (X870E,AM5,AT

Processor
Processor Socket
Socket AM5
Supported Processor Slots
Socket AM5
Processor Manufacturer
AMD
Compatible Processors
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memory
Memory Channels
Dual Channel
Unbuffered Memory
Yes
Supported Memory Types
DDR5 SDRAM
Supported Memory Speeds
4800, 5600, 6400, 8400 MHz
Number of Memory Slots
4
ECC Compatibility
Non-ECC
Maximum Memory Clock Speed
8400 MHz
Maximum RAM Capacity
256 GB
Memory Type
DIMM
Memory Controller
Number of Supported Storage Drives
8
RAID Levels
0, 1, 10
Maximum Supported Number of HDDs
4
RAID Support
Yes
Supported Storage Drive Interfaces
M.2, SATA III
Supported Storage Drives
HDD & SSD
Graphics
Built-in Graphics Adapter
No
Internal I/O Ports
CPU Fan Connector
Yes
Total Number of SATA Ports
4
ATX Power Connector (24-pin)
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Ports
4
SATA III Ports
4
Front Panel Connectors
Yes
EPS Power Connector (8-pin)
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Ports
1
Number of USB 2.0 Ports
4
Front Panel Audio Connectors
Yes
SATA Ports
0
SATA II Ports
0

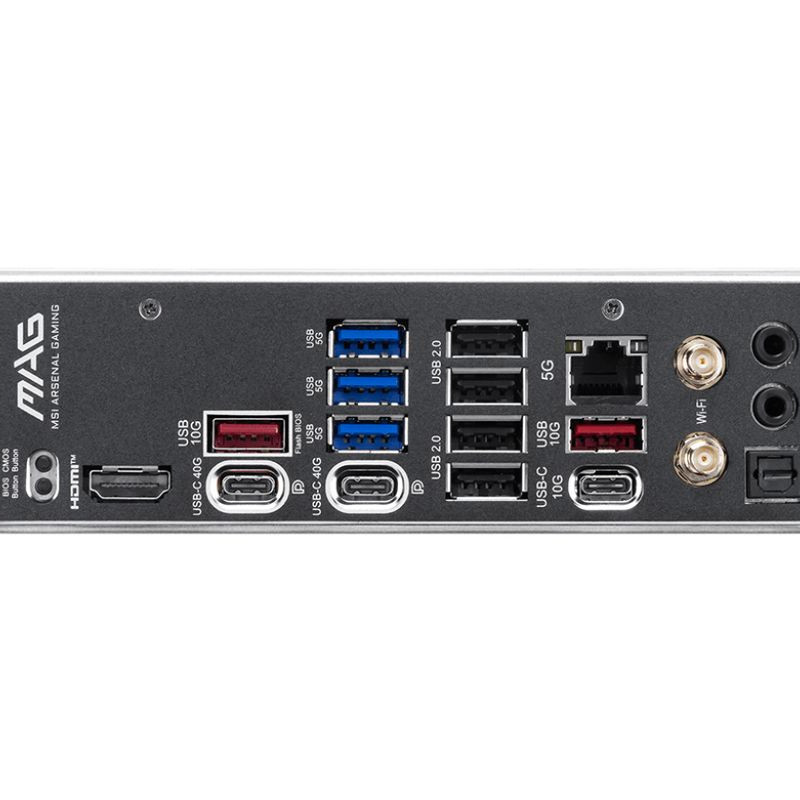

Rear I/O Ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports
0
Number of HDMI Ports
1
DisplayPort Version
1.4
Number of DisplayPort Ports
2
USB 3.2 Gen 2 (3.1 Gen 2) Ports Type C
Number of Ethernet LAN ports (RJ-45)
1
Microphone input
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports
3
S/PDIF output
Yes
HDMI version
2.1
Number of USB 2.0 ports
4
Number of VGA (D-Sub) ports
0
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports
2
Number of DVI-D ports
0
Number of USB4 Gen 2x2 ports
2
Network
Ethernet interface type
5 Gigabit Ethernet
WLAN standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Top WLAN Standard
Wi-Fi 7 (802.11be)
Bluetooth
Yes
WLAN
Yes
Ethernet/LAN
Yes
LAN Controller
Realtek RTL8126
Bluetooth Version
5.4
Features
Motherboard Form Factor
ATX
Product Color
Black
Motherboard Chipset
AMD X870E
Component for
PC
Audio Channels
7.1 Channels
Motherboard Chipset Family
AMD
PC Health Monitoring
CPU, Fan, Temperature, Voltage
Expansion Slots
1. M.2 Largest Key Size
22110
Number of M.2 (M) Slots
4
PCI Express x16 Slots (Gen 4.x)
1
3. M.2 Highest PCI Express Generation
4.0
3. M.2 Largest Key Size
2280
4. M.2 Highest PCI Express Generation
4.0
PCI Express x16 (Gen 3.x) Slots
1
PCI Express x16 Slots (Gen 5.x)
1
2. M.2 Highest PCI Express Generation
5.0
2. M.2 Largest Key Size
2280
4. M.2 Largest Key Size
2280
1. M.2 Highest PCI Express Generation
5.0
BIOS
BIOS Type
UEFI AMI
BIOS Memory Size
512 Mbit
System Management BIOS (SMBIOS) Version
3.7
ACPI Version
6.5
Weight and Dimensions
Depth
304.8 mm
Width
243.8 mm
