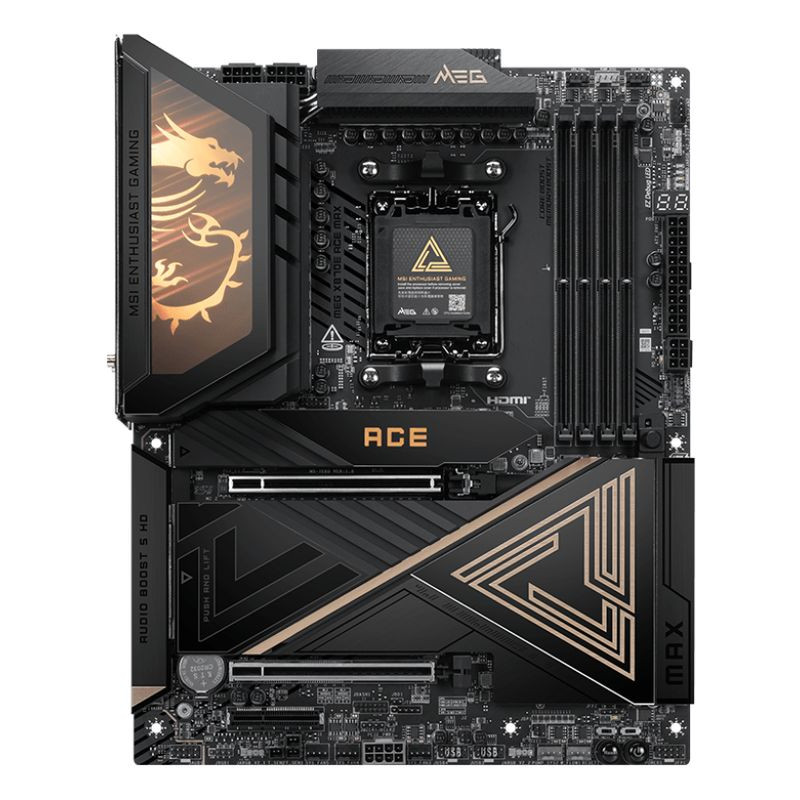

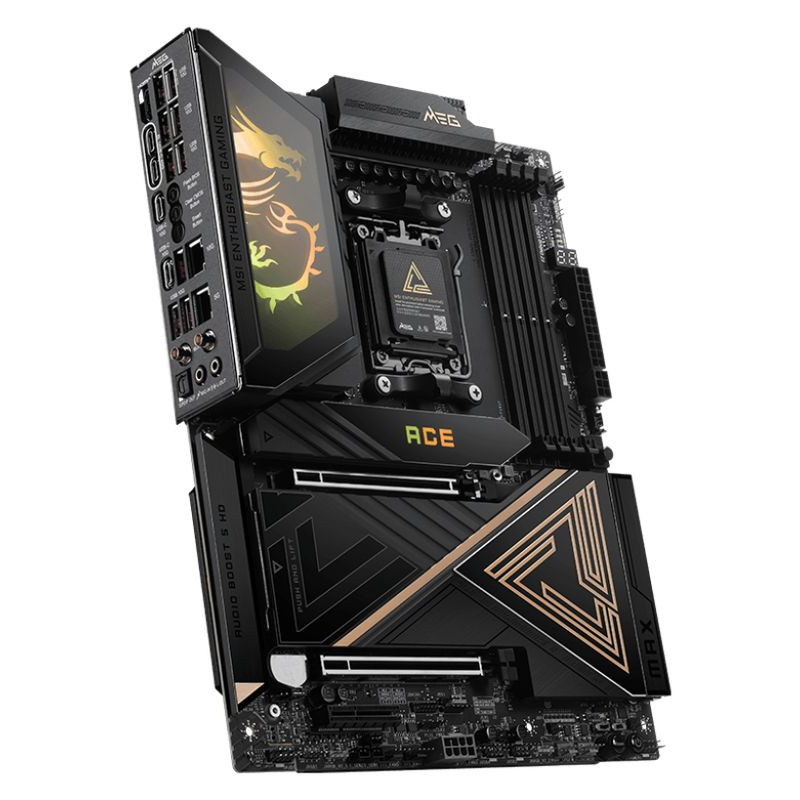

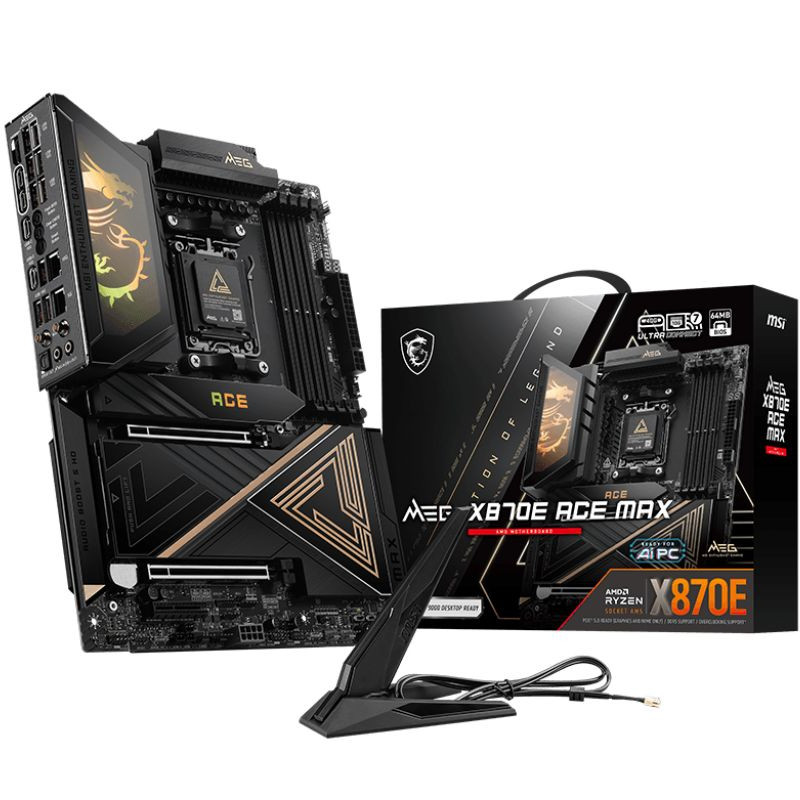

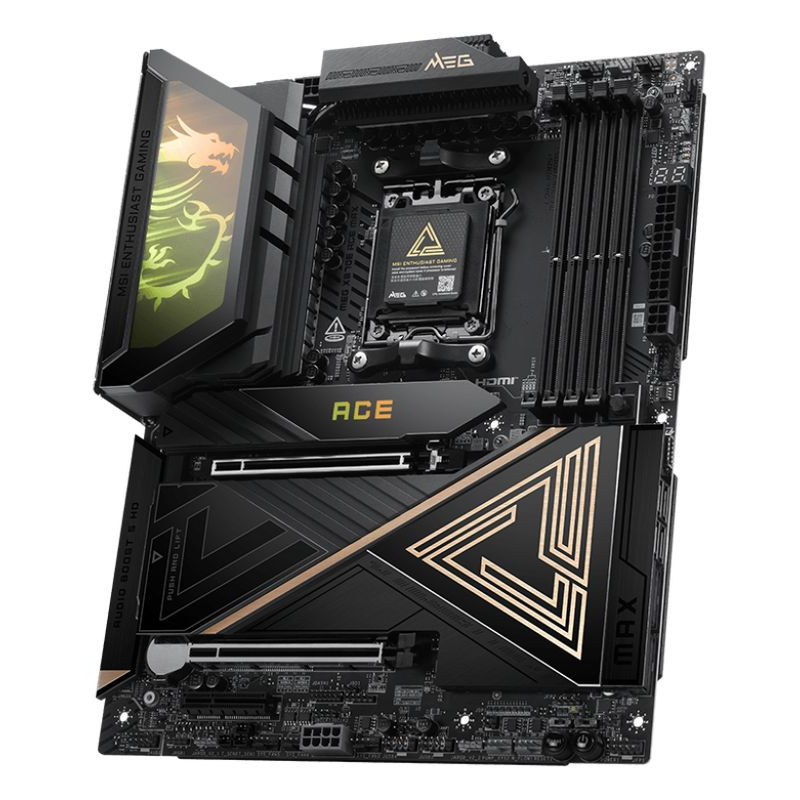

MSI MEG X870E ACE MAX (X870,AM5,ATX,DDR5)

Processor
Supported Processor Sockets
Socket AM5
Compatible Processors
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Memory
Maximum RAM
256 GB
Memory Type
DIMM
Maximum Supported Memory Clock Speed
9000 MHz
Supported Memory Types
DDR5 SDRAM
Memory Channels
Dual Channel
ECC Compatibility
Non-ECC
Number of Memory Slots
4
Supported Memory Speeds
4800, 5600, 6400, 9000 MHz
Memory Controller
RAID Level
0, 1, 10
Supported Storage Drive Interfaces
M.2, SATA III
RAID Support
Yes
Supported Storage Drives
HDD & SSD
Number of Supported Storage Drives
9
Maximum Supported Number HDD
4
Graphics
Built-in graphics adapter
No
Internal I/O ports
Total number of SATA ports
4
SATA ports
0
USB 3.2 Gen 2 (3.1 Gen 2) ports
1
CPU fan connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) ports
4
SATA III ports
4
Number of USB 2.0 ports
4
SATA II ports
0
EPS power connector (8-pin)
Yes
ATX power connector (24-pin)
Yes
Rear I/O ports
Number of HDMI ports
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports
0
Number of USB 2.0 ports
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports
2
Number of USB4 Gen 2x2 ports
2
Number DVI-D ports
0
S/PDIF output
Yes
HDMI version
2.1
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports
0
Microphone input
Yes
VGA (D-Sub) ports
0
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-A ports
9
Ethernet LAN ports (RJ-45)
1
Network
Bluetooth version
5.4
Top WLAN standard
Wi-Fi 7 (802.11be)
Ethernet interface type
5 Gigabit Ethernet
WLAN standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN
Yes
Bluetooth
Yes
Ethernet/LAN
Yes
Features
Audio Channels
7.1 Channels
Product Color
Black
Supports Windows Operating Systems
Windows 11 x64
Motherboard Chipset
AMD X870E
PC Health Monitoring
CPU, Fan, Temperature, Voltage
Motherboard Chipset Family
AMD
Motherboard Form Factor
ATX
Component for
PC
Expansion Slots
5. M.2 Highest PCI Express Generation
4.0
2. M.2 Highest PCI Express Generation
5.0
PCI Express x16 (Gen 3.x) Slots
1
PCI Express x16 Slots (Gen 5.x)
1
Number of M.2 (M) Slots
5
1. M.2 Highest PCI Express Generation
5.0
2. M.2 Largest Key size
2280
PCI Express x16 slots (Gen 4.x)
1
4. M.2 highest PCI Express generation
4.0
5. M.2 largest key size
2280
1. M.2 largest key size
2280
4. M.2 largest key size
2280
3. M.2 largest key size
22110
3. M.2 highest PCI Express generation
4.0
BIOS
BIOS memory size
512 Mbit
System management BIOS (SMBIOS) version
3.7
ACPI version
6.4
BIOS type
UEFI AMI
Weight and dimensions
Width
243.8 mm
Depth
30438 mm
Other features
Number of mSATA ports
0
