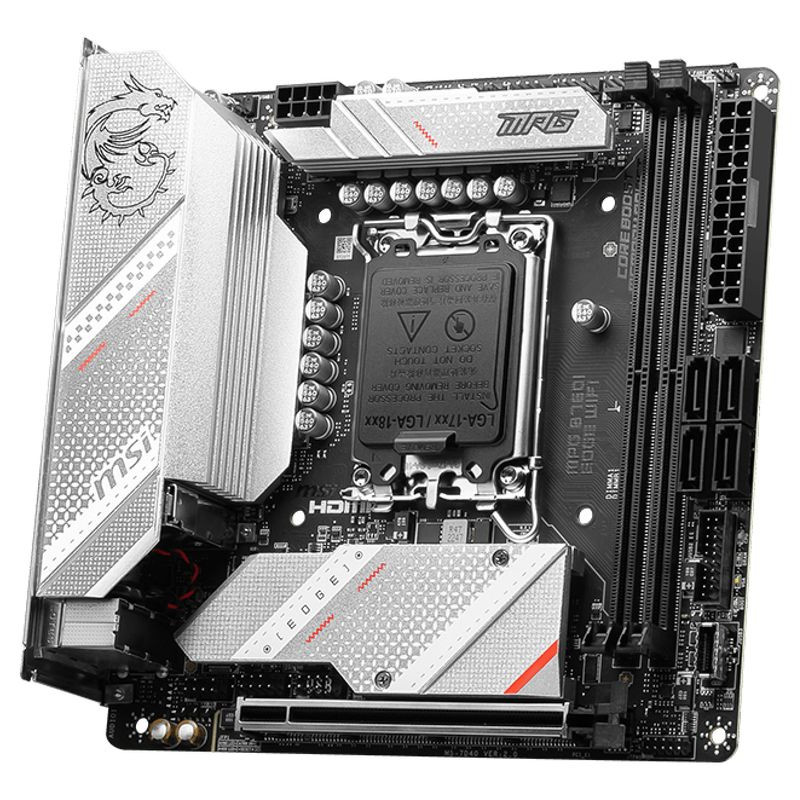

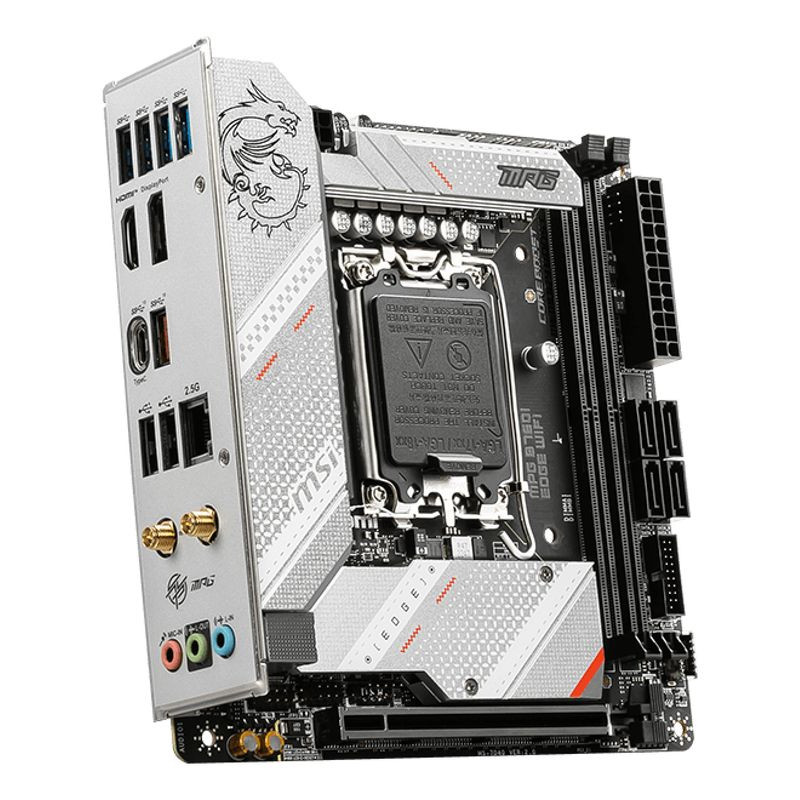

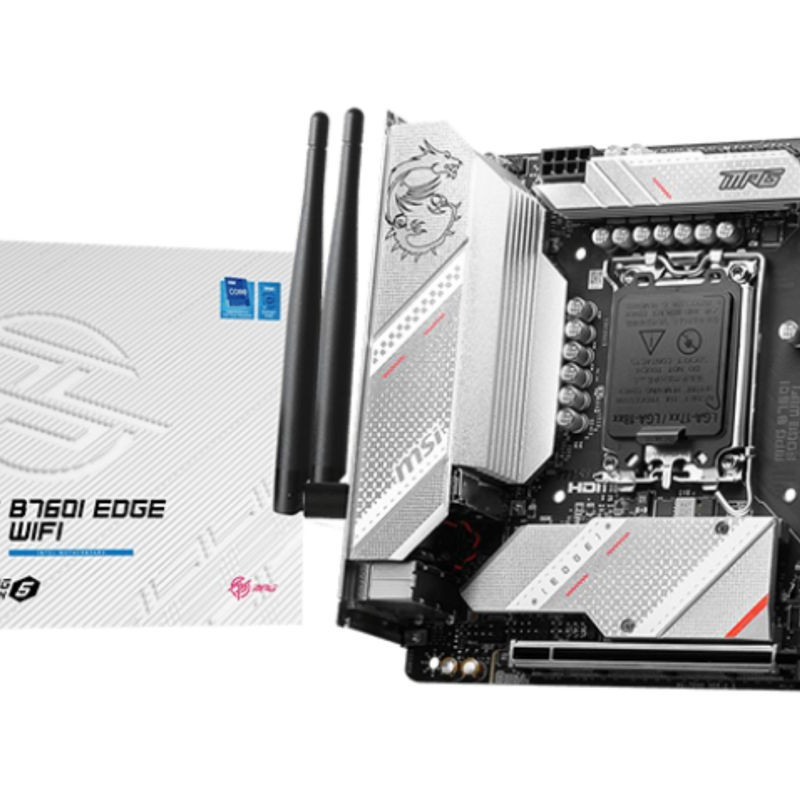

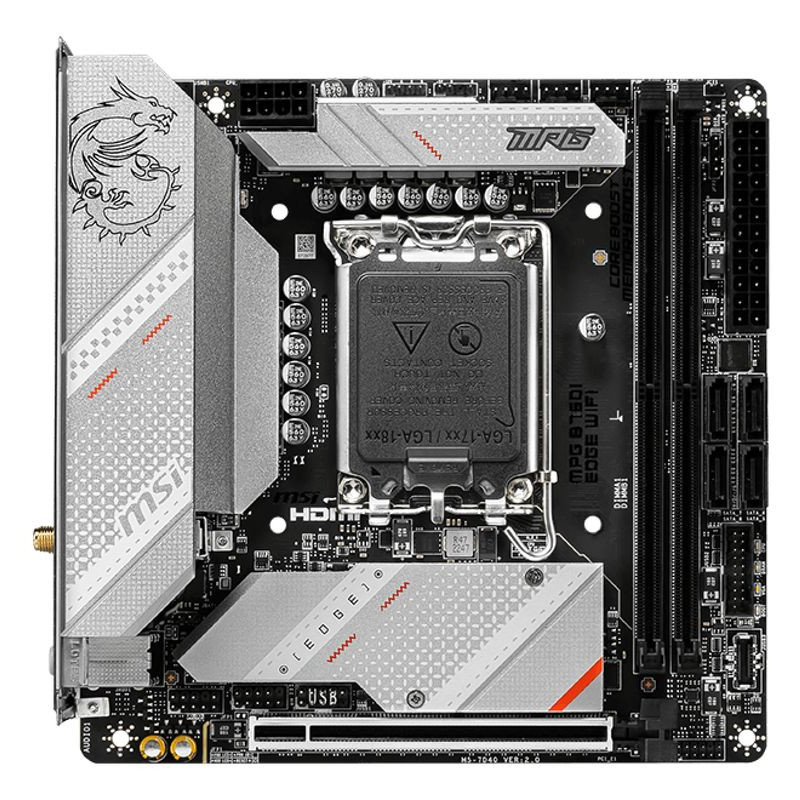

MSI MPG B760I EDGE WIFI (B760,S1700,mITX,DDR5)

Processor
Compatible Processors
Intel® Celeron®, Intel® Pentium® Gold
Maximum Number of SMP Processors
1
Processor Socket
LGA 1700
Supported Processor Slots
LGA 1700
Processor Manufacturer
Intel
Memory
Number of Memory Slots
2
Maximum Supported Memory Clock Speed
7200 MHz
Maximum RAM
96 GB
ECC Compatibility
Non-ECC
Supported Memory Speeds
7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported Memory Types
DDR5 SDRAM
Memory Type
DIMM
Memory Channels
Dual Channel
Memory Controller
Supported Storage Drive Interfaces
M.2, SATA III
RAID Level
0, 1, 5, 10
RAID Support
Yes
Graphics
Built-in Graphics Adapter
No
Internal I/O Ports
USB 3.2 Gen 2 (3.1 Gen 2) Ports
1
SATA III Ports
4
SATA Ports
0
Front Panel Connectors
Yes
Number of USB 2.0 Ports
2
USB 3.2 Gen 1 (3.1 Gen 1) Ports
2
RGB LED Header
Yes
Front Panel Audio Connector
Yes
CPU Fan Connector
Yes
SATA II Ports
0
ATX Power Connector (24-pin)
Yes
TPM Connector
Yes

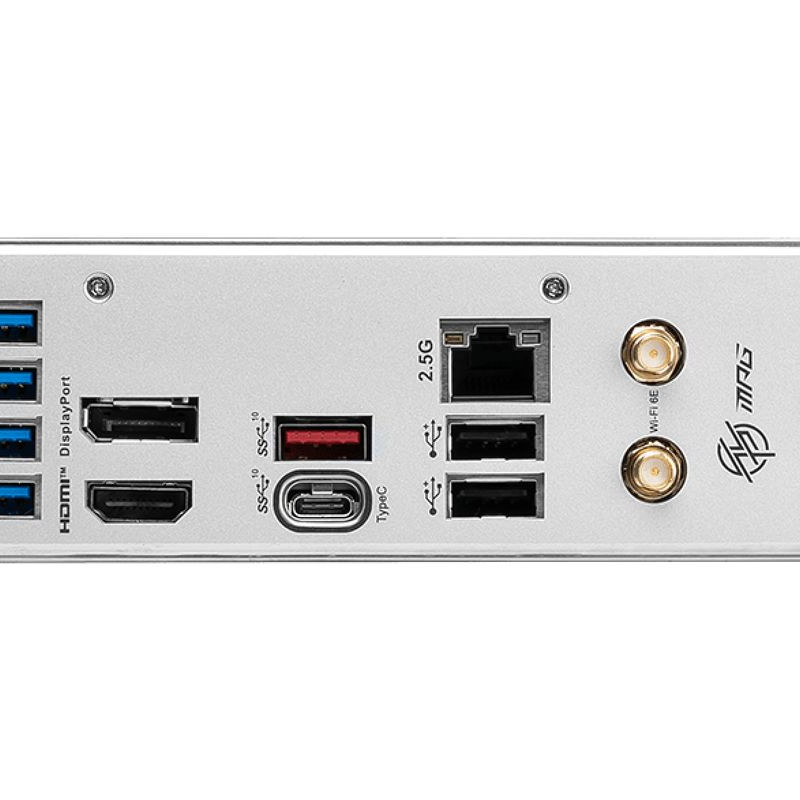

Rear I/O Ports
DisplayPort Version
1.4
Number of DVI-D Ports
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A Ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports
0
HDMI version
2.1
Number of Ethernet LAN ports (RJ-45)
1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports
0
Number of VGA (D-Sub) ports
0
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-A ports
4
Number of HDMI ports
2
Number of DisplayPort ports
1
Number of USB 2.0 ports
2
Network
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth version
5.3
Bluetooth
Yes
Wi-Fi standards
802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet/LAN
Yes
Top WLAN Standard
Wi-Fi 6E (802.11ax)
WLAN
Yes
Features
Motherboard Chipset
Intel B760
Motherboard Chipset Family
Intel
Product Color
Black, Silver
Audio Chip
Realtek ALC897
Audio Channels
7.1 Channels
Power Source
ATX
Component for
PC
Supports Windows Operating Systems
Windows 10, Windows 11
Motherboard Form Factor
mini ITX
Expansion Slots
PCI Express x1 (Gen 3.x) Ports
2
Number of M.2 (M) Slots
2
BIOS
BIOS Type
UEFI AMI
System Management BIOS (SMBIOS) Version
3.5
BIOS Memory Size
256 Mbit
Weight and Dimensions
Depth
170 mm
Width
170 mm
Other Features
Number of mSATA ports
0
