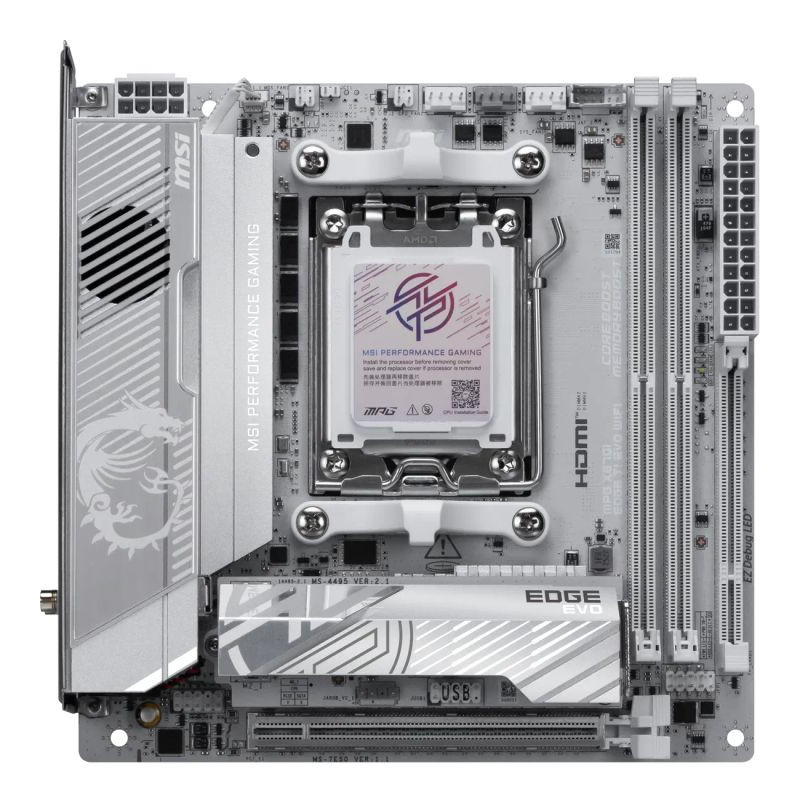

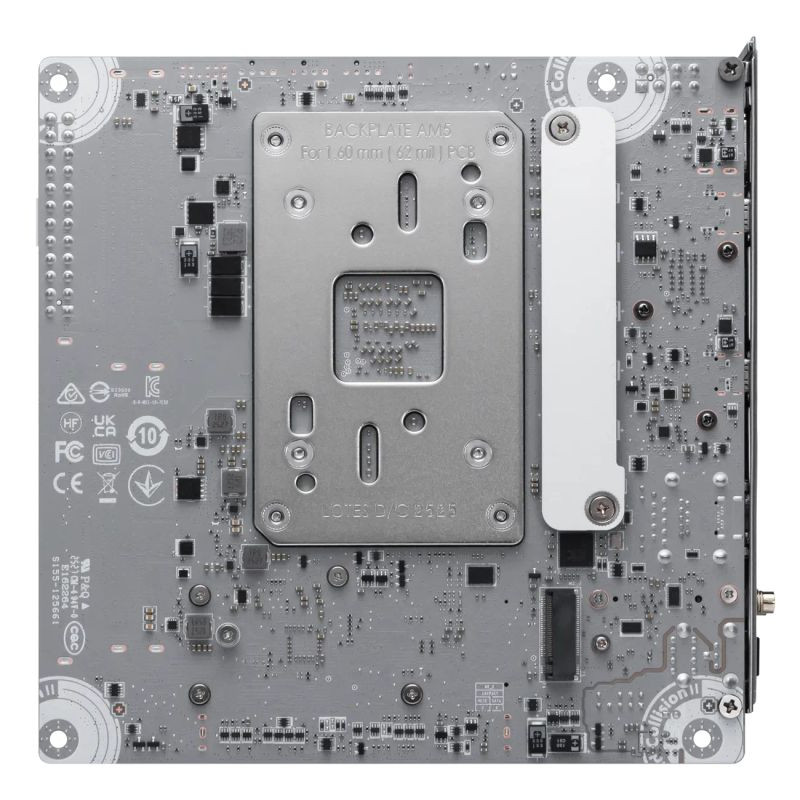

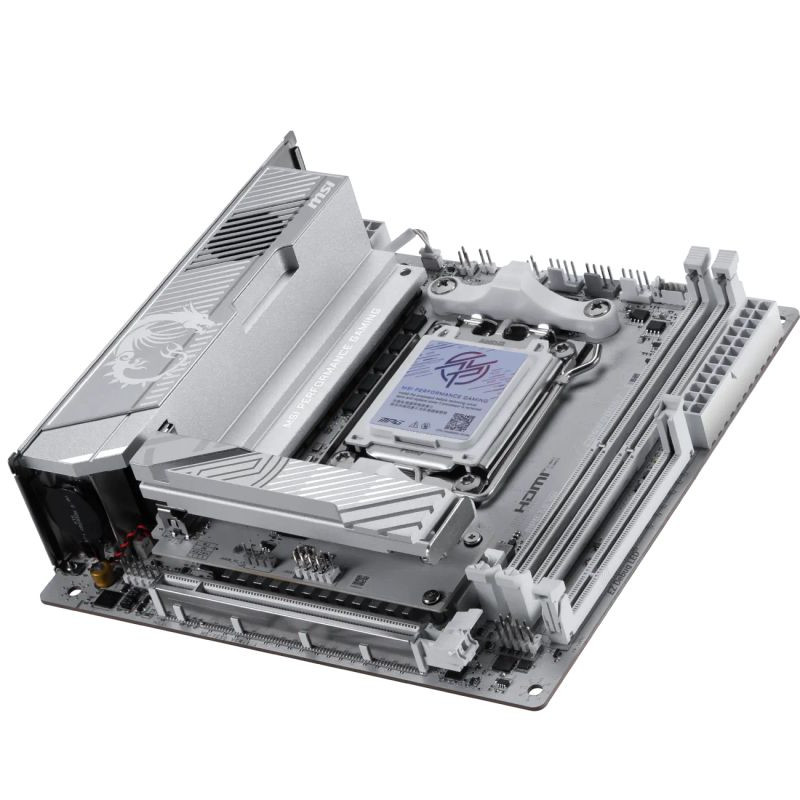

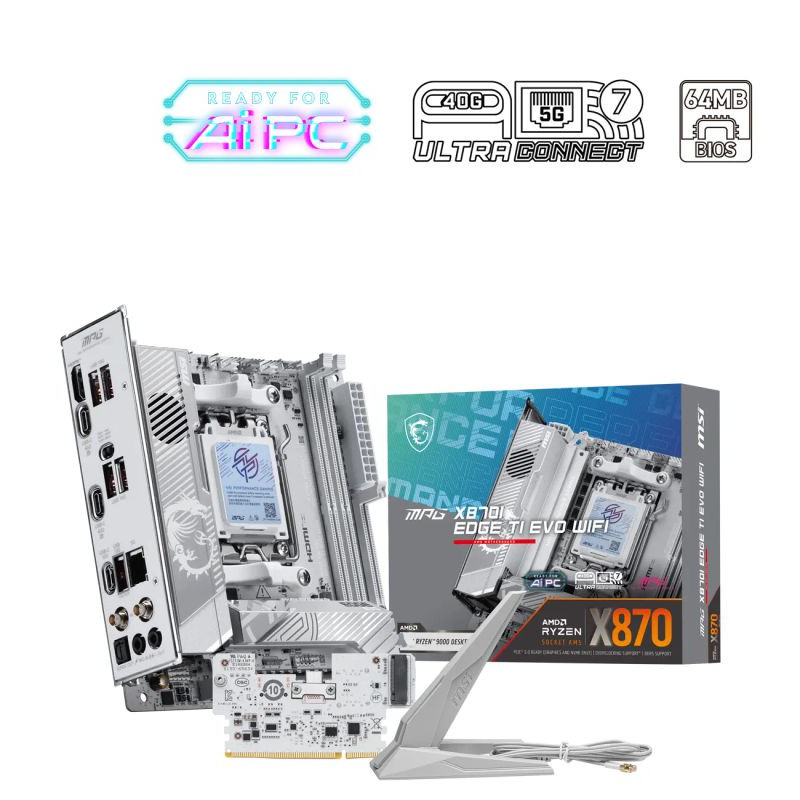

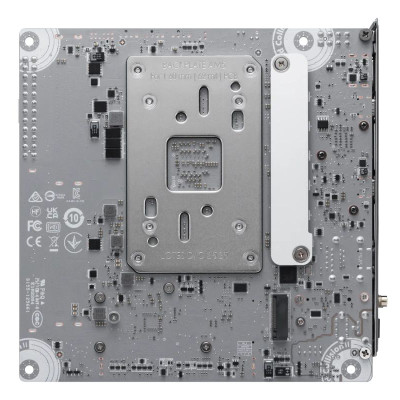

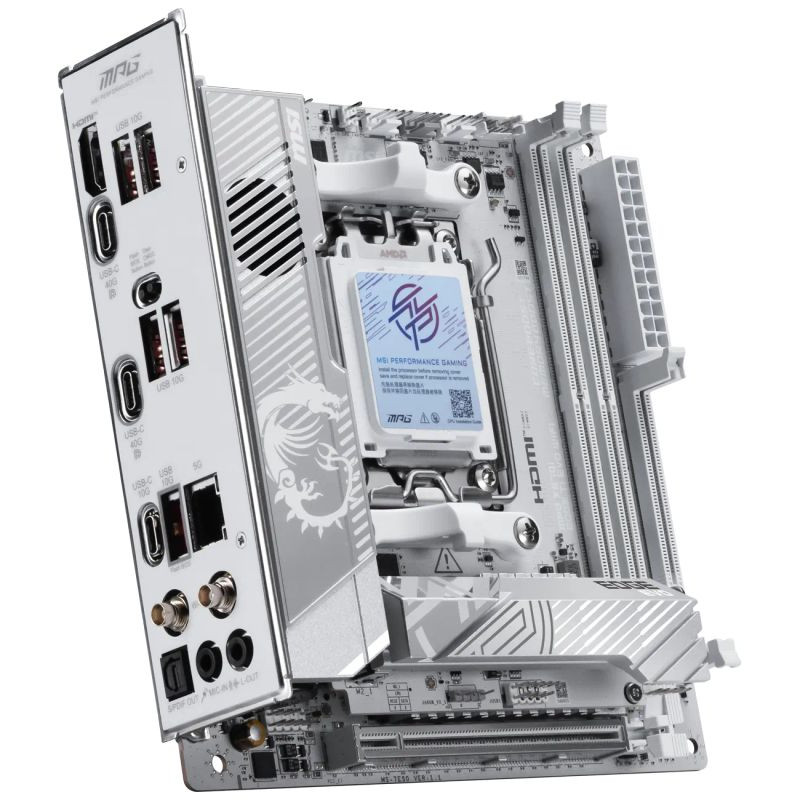

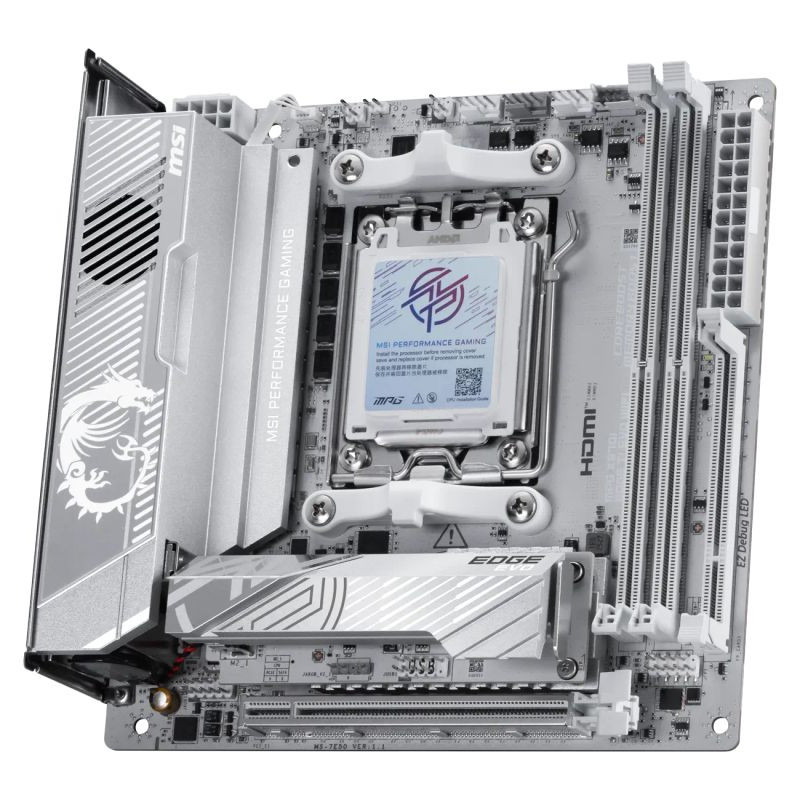

MSI MPG X870I EDGE Ti Evo Wifi (X870,AM5,ATX,DDR5)

Processor
Supported Processor Sockets
Socket AM5
Compatible Processors
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Memory
Memory Type
DIMM
Memory Channels
Dual Channel
ECC Compatibility
Non-ECC
Supported Memory Types
DDR5 SDRAM
Maximum RAM Capacity
256 GB
Number of Memory Slots
2
Supported Memory Speeds
9000, 8000, 7000 MHz
Maximum Supported Memory Clock Speed
9000 MHz
Memory Controller
RAID Levels
0, 1, 5, 10
Number of Supported Storage Drives
3
Maximum Supported Number of HDDs
2
Supported Storage Drives
HDD & SSD
RAID Support
Yes
Supported Storage Drive Interfaces
M.2, SATA III
Graphics
Built-in Graphics Adapter
No
Internal I/O Ports
USB 3.2 Gen 2 (3.1 Gen 2) Ports
1
EPS Power Connector (8-pin)
Yes
Total Number of SATA Ports
2
ATX Power Connector (24-pin)
Yes
Number of USB 2.0 Ports
2
SATA Ports
0
SATA III Ports
2
USB 3.2 Gen 1 (3.1 Gen 1) Ports
2
SATA II Ports
0
CPU Fan Connector
Yes
Rear I/O Ports
Number of Ethernet LAN Ports (RJ-45)
1
Number of DVI-D Ports
0
Microphone Input
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports
0
Number of HDMI Ports
1
Number of USB 2.0 Ports
0
USB 3.2 Gen 2 (3.1 Gen 1) 2) Number of Type-A ports
2
Number of DisplayPort ports
2
Number of USB 4 Gen 2x2 ports
1
S/PDIF output
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports
1
HDMI version
2.1
Number of VGA (D-Sub) ports
0
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports
0
Network
LAN controller
Realtek RTL8126
Bluetooth
Yes
Ethernet/LAN
Yes
Ethernet interface type
5 Gigabit Ethernet
WLAN
Yes
WLAN standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Top WLAN Standard
Wi-Fi 7 (802.11be)
Bluetooth Version
5.4
Features
Motherboard Chipset
AMD X870
Product Color
White
Audio Chip
Realtek ALC4080
Component for
PC
Audio Channels
7.1 Channels
Motherboard Chipset Family
AMD
PC Health Monitoring
CPU, Fan, Temperature, Voltage
Motherboard Form Factor
mini ITX
Expansion Slots
PCI Express x16 (Gen 3.x) Ports
1
Number of M.2 (M) Slots
1
1. M.2 Highest PCI Express Generation
5.0
PCI Express x16 Slots (Gen 5.x)
1
1. M.2 Largest Key Size
2280
PCI Express x16 Slots (Gen 4.x)
1
BIOS
ACPI Version
6.5
BIOS Type
UEFI AMI
BIOS Memory Size
512 Mbit
System Management BIOS (SMBIOS) Version
3.7
Weight and Dimensions
Depth
170 mm
Width
170 mm
Other Features
Number of mSATA Ports
0
