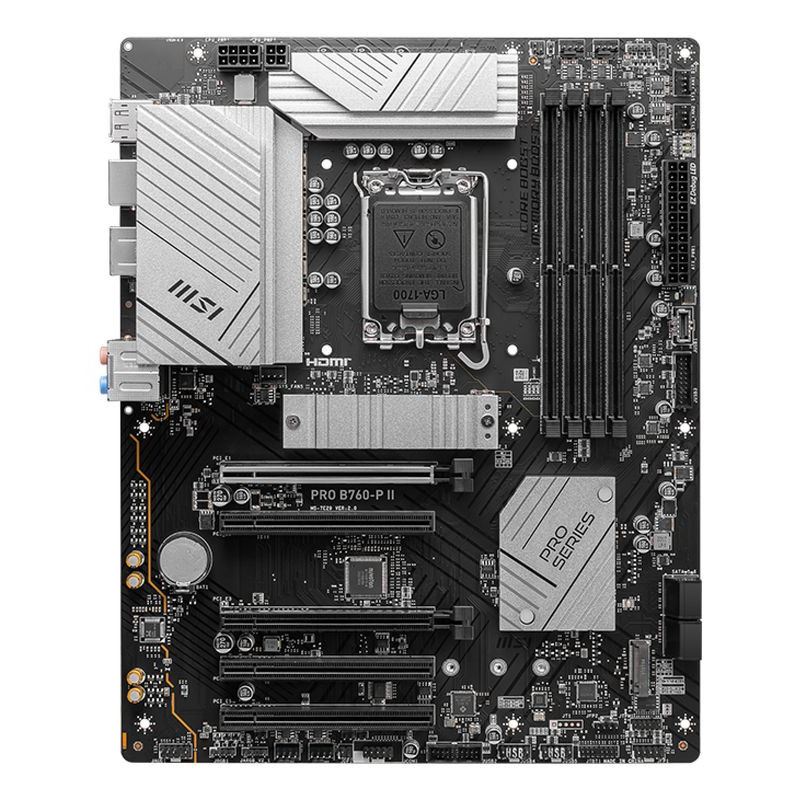

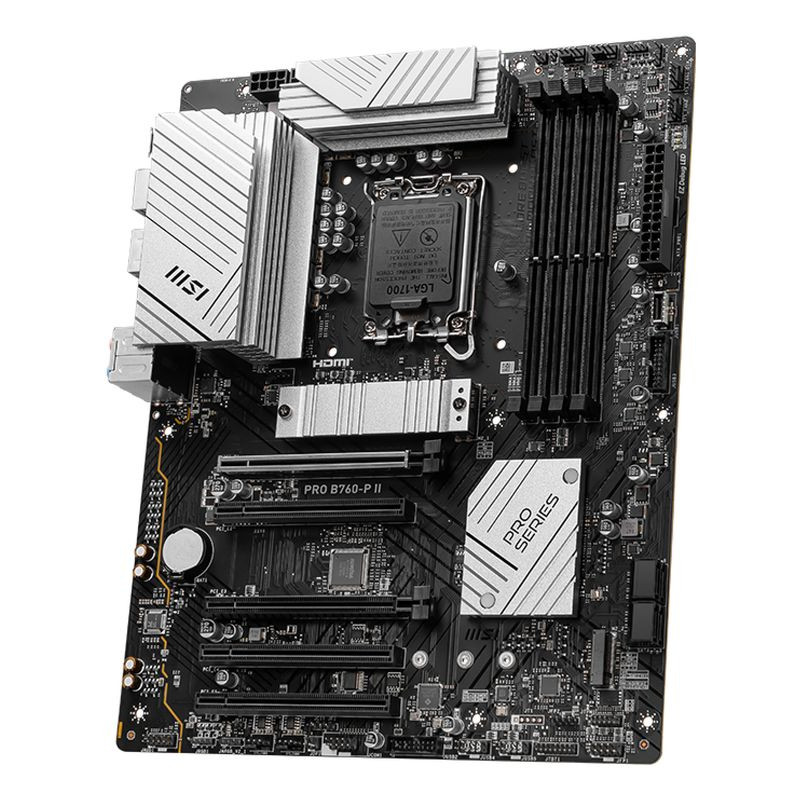

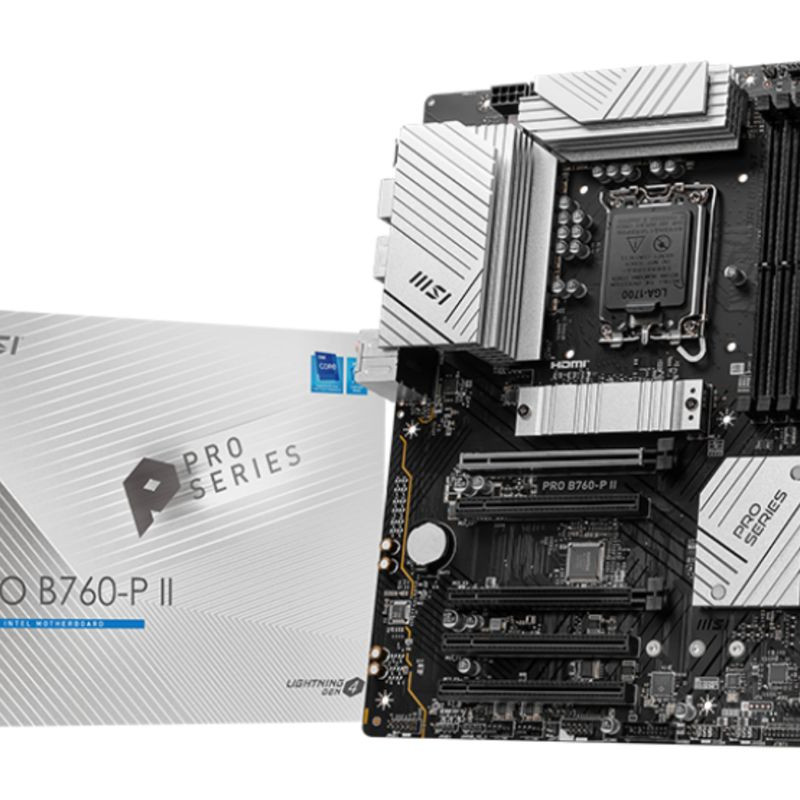

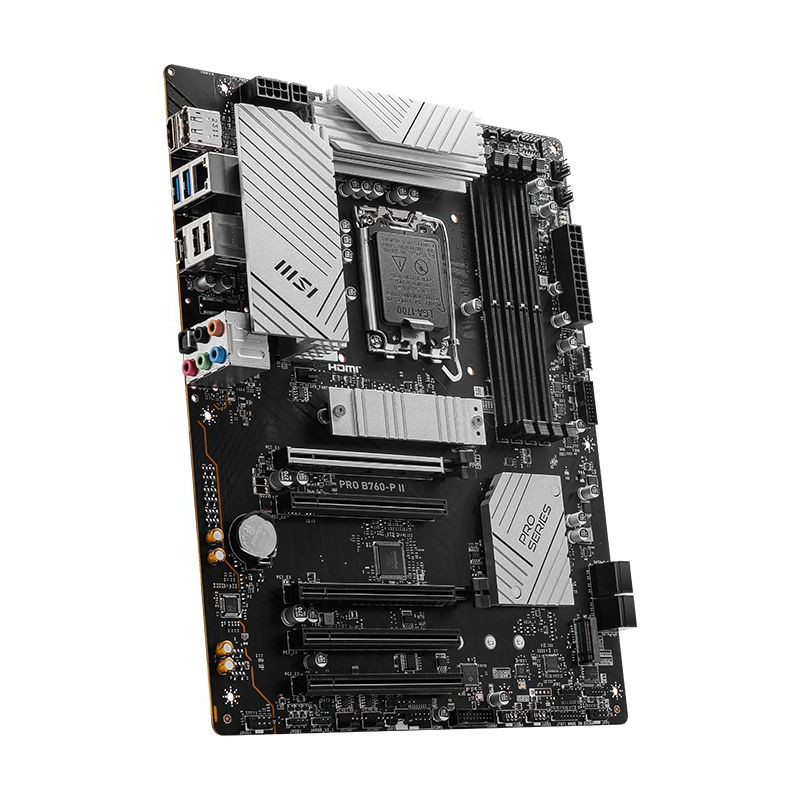

MSI PRO B760-P II (B760,S1700,ATX,DDR5)

Processor
Processor Socket
LGA 1700
Processor Manufacturer
Intel
Compatible Processors
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® Gold
Maximum Internal Memory Supported by Processor
256 GB
Memory
Number of Memory Slots
4
Memory Type
DIMM
Memory Channels
Dual Channel
Unbuffered Memory
Yes
Supported Memory Speeds
4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000 MHz
ECC Compatibility
Non-ECC
Maximum RAM
256 GB
Supported Memory Types
DDR5 SDRAM
Maximum Memory Clock Speed
7000 MHz
Memory Controller
RAID Support
Yes
Maximum Supported Number of HDDs
4
RAID Level
0, 1, 5, 10
Supported Storage Drive Interfaces
PCI Express 4.0, SATA III
Number of Supported Storage Drives
6
Internal I/O Ports
Number of USB 2.0 Ports
4
Front Panel Audio Connector
Yes
S/PDIF Out Connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Ports
4
Power Fan Connector
Yes
CPU Fan Connector
Yes
SATA III Ports
4
USB 3.2 Gen 2 (3.1 Gen 2) Ports
1
Chassis Intrusion Connector
Yes
12V Power Connector
Yes
Front Panel Connector
Yes
ATX Power Connector (24-pin)
Yes

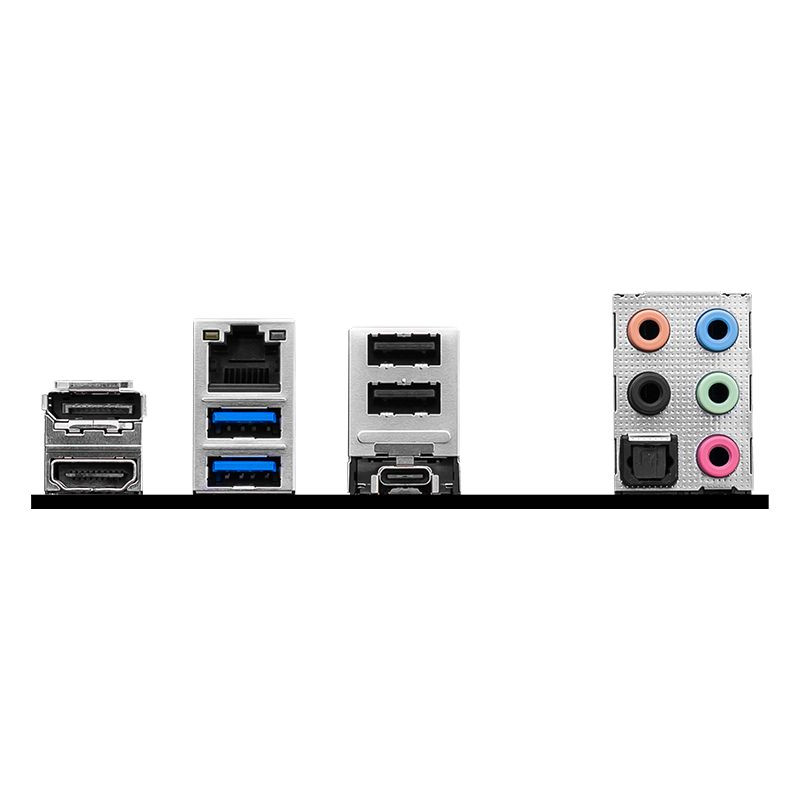

Rear I/O Ports
USB 3.2 Gen 2 (3.1 Gen 2) Number of Ports C
1
HDMI Version
2.1
Number of Ethernet LAN ports (RJ-45)
1
Number of DisplayPort ports
1
Number of DVI-D ports
0
Number of USB 2.0 ports
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports
0
DisplayPort Version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports
0
Number of VGA (D-Sub) ports
0
Number of HDMI ports
1
Network
WLAN
No
LAN Controller
Realtek RTL8125-BG
Ethernet Interface Type
2.5 Gigabit Ethernet
Ethernet/LAN
Yes
Features
Motherboard Form Factor
ATX
Component for
PC
Audio Chip
Realtek ALC897
Audio Channels
7.1 Channels
Motherboard Chipset Family
Intel
Supports Windows Operating Systems
Windows 10 x64, Windows 11 x64
Motherboard Chipset
Intel B760
Expansion Slots
Number of M.2 (M) Slots
2
PCI Express x4 Slots (Gen 4.x)
1
PCI Express x1 (Gen 3.x) Ports
1
PCI Express x1 Slots (Gen 4.x)
2
PCI Express x16 Slots (Gen 4.x)
1
BIOS
BIOS Memory Size
256 Mbit
Clear CMOS Button
Yes
System Management BIOS (SMBIOS) Version
3.5
BIOS Type
UEFI AMI
Clear CMOS Jumper
Yes
ACPI Version
6.4
Weight and Dimensions
Depth
304.8 mm
Width
243.8 mm mm
Scope of delivery
Cables included
SATA
Drivers included
Yes
