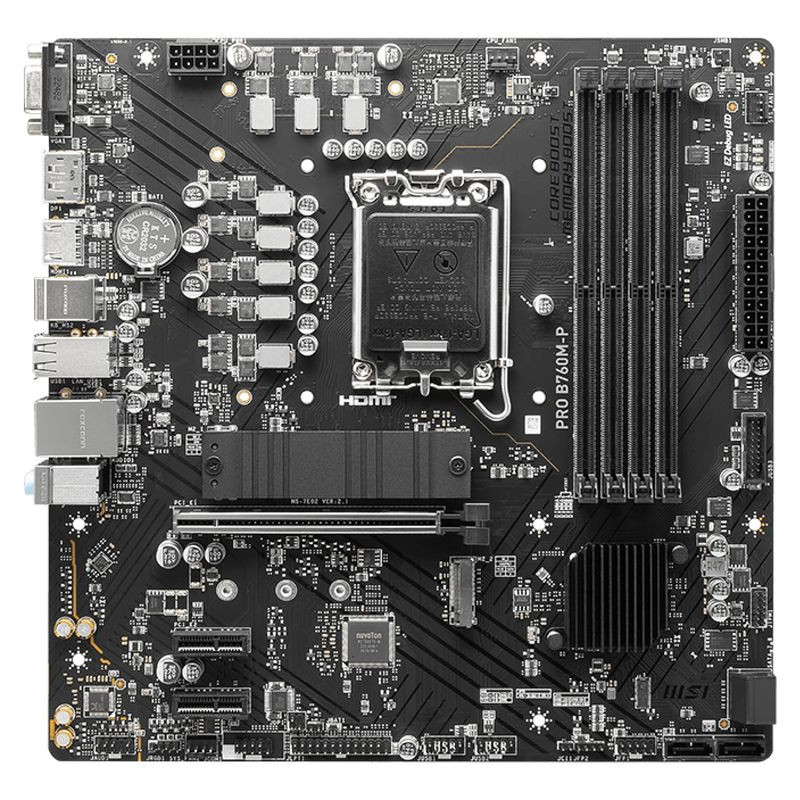

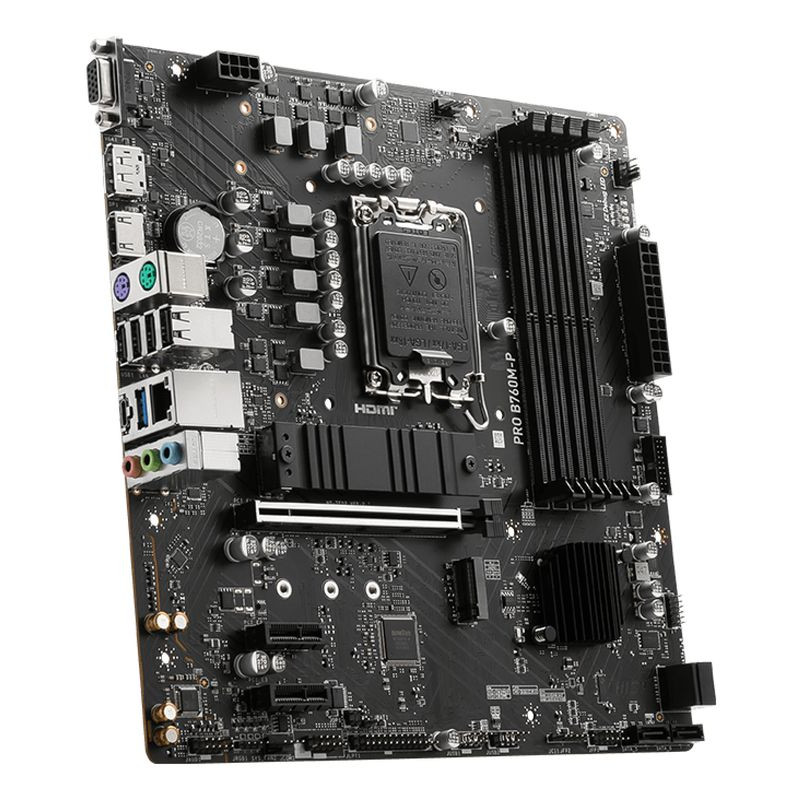

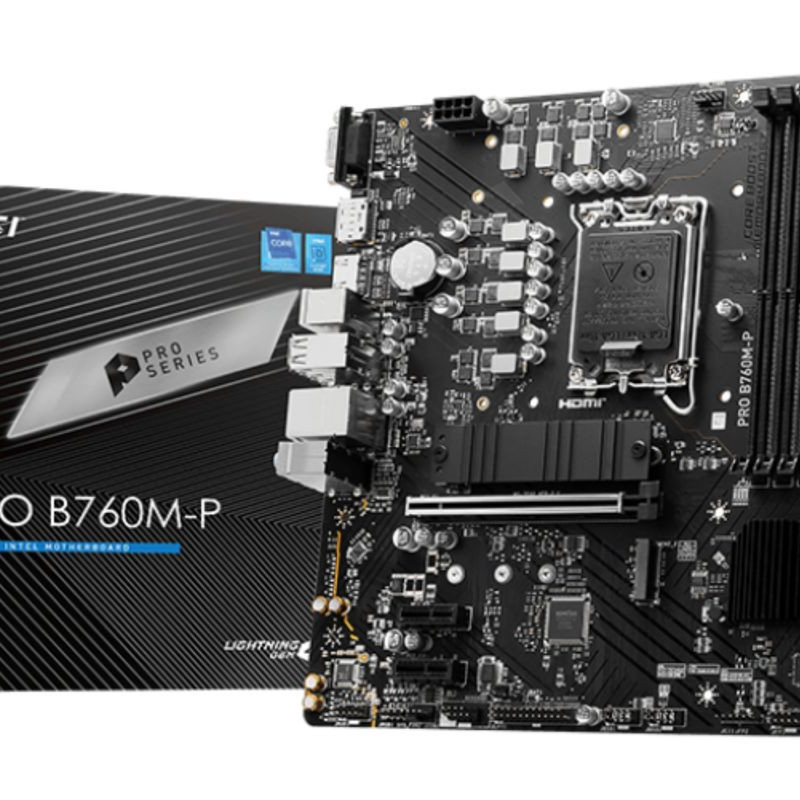

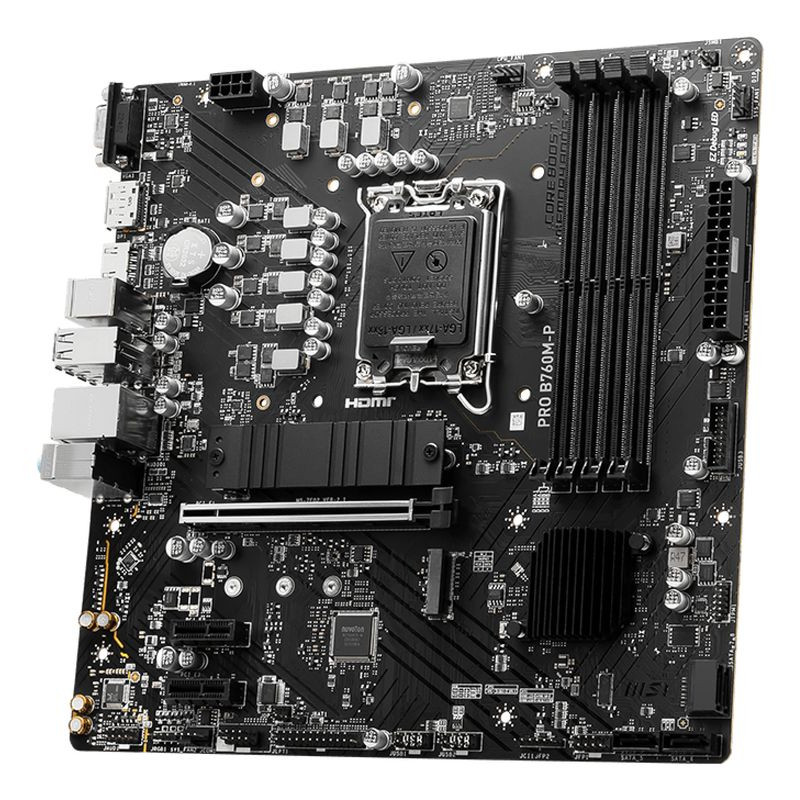

MSI PRO B760M-P (B760,S1700,mATX,DDR5)

Processor
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processors
Intel® Celeron®, Intel® Pentium® Gold
Supported Processor Slots
LGA 1700
Memory
Number of Memory Slots
4
Unbuffered Memory
Yes
Supported Memory Types
DDR5 SDRAM
Maximum RAM
192 GB
ECC Compatibility
Non-ECC
Supported Memory Speeds
4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 MHz
Memory Controller
RAID Level
0, 1, 5, 10
Supported Storage Drives
HDD & SSD
Maximum Supported Number of HDDs
4
Supported Storage Drive Interfaces
SATA III
Number of Supported Storage drives
6
RAID support
Yes
Internal I/O ports
SATA III ports
4
CPU fan connector
Yes
USB 3.2 Gen 2 (3.1 Gen 2) ports
0
ATX power connector (24-pin)
Yes
Number of COM ports
1
Parallel connectors
Yes
TPM connector
Yes
Chassis intrusion connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) ports
2
RGB LED header
Yes
Number of USB 2.0 ports
4
Front panel connectors
Yes
Front panel audio connectors
Yes

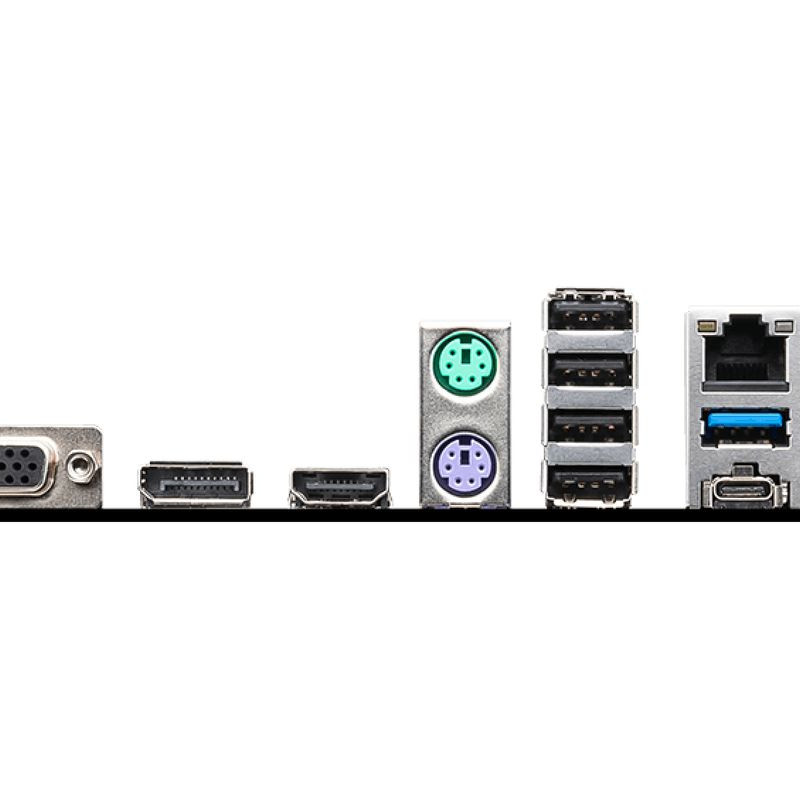

Rear I/O ports
Number of USB 2.0 ports
4
Microphone input
Yes
Number of PS/2 ports
2
Number of VGA (D-Sub) ports
1
Number of Ethernet LAN ports (RJ-45)
1
Number of DisplayPort ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-A ports
1
DisplayPort version
1.4
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-A ports
0
Number of HDMI ports
1
Line-in
Yes
HDMI version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports
0
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports
1
Network
LAN controller
Realtek RTL8111H
WLAN
No
Ethernet/LAN
Yes
Ethernet interface type
Gigabit Ethernet
Features
Supports Windows operating systems
Windows 10 x64, Windows 11 x64
Power source
ATX
Audio chip
Realtek ALC897
Motherboard chipset family
Intel
Audio channels
7.1 Channels
Motherboard Form Factor
micro ATX
Motherboard Chipset
Intel B760
Component for
PC
Expansion Slots
PCI Express x1 Slots (Gen 4.x)
2
PCI Express x16 Slots (Gen 4.x)
1
BIOS
BIOS Memory Size
256 Mbit
ACPI Version
6.4
System Management BIOS (SMBIOS) Version
3.5
Clear CMOS Jumper
Yes
BIOS Type
UEFI AMI
Weight and Dimensions
Depth
243.8 mm
Width
243.8 mm
Included Cables
SATA
