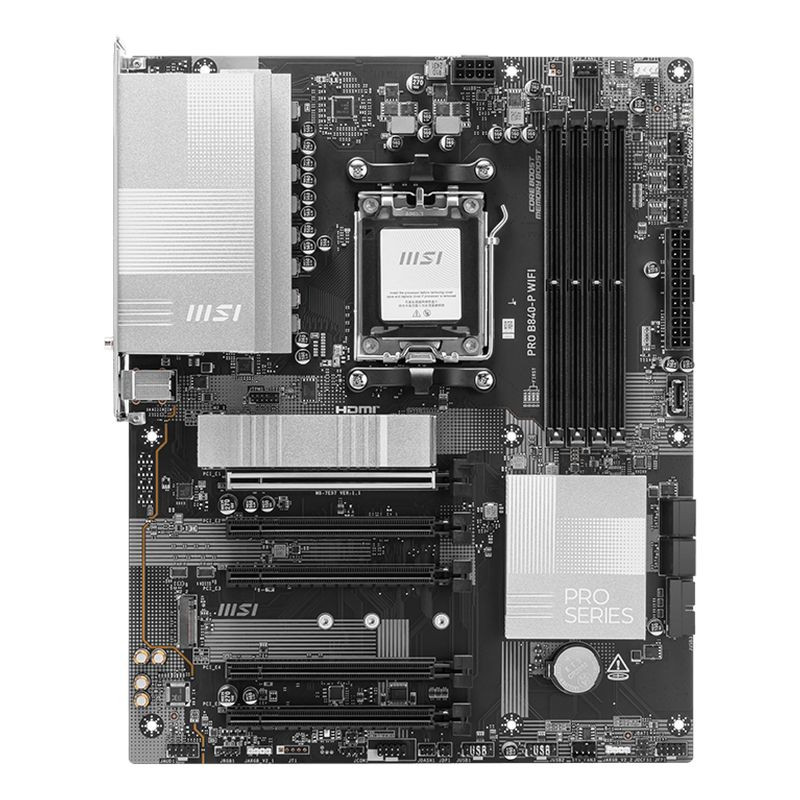

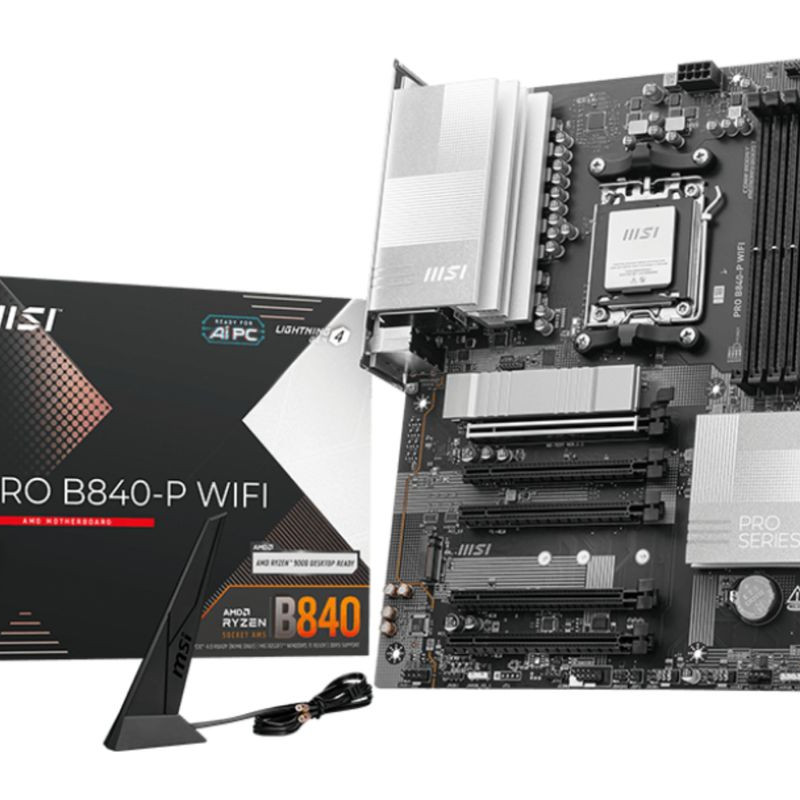

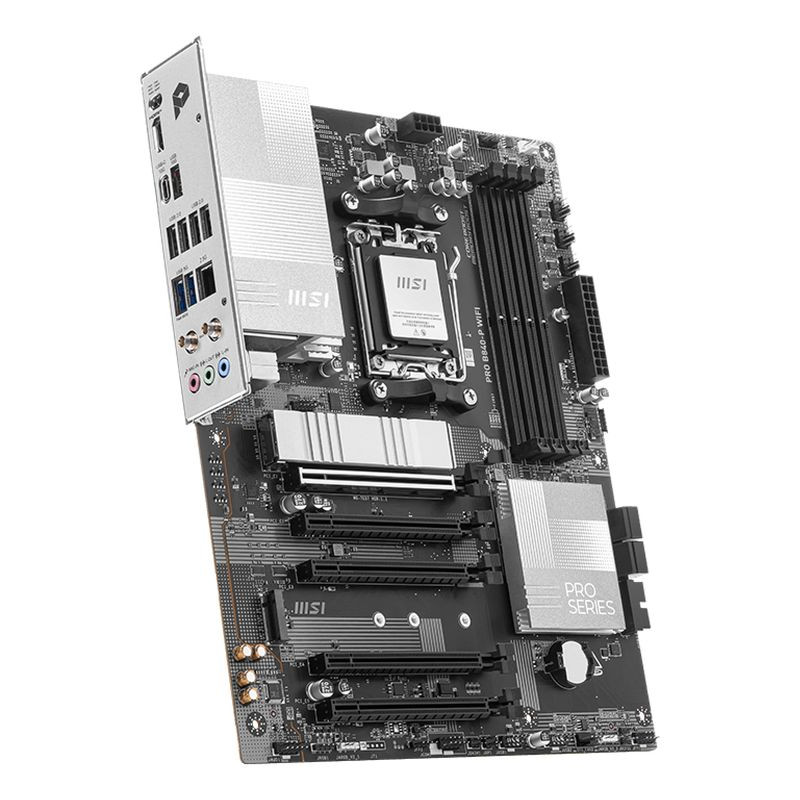

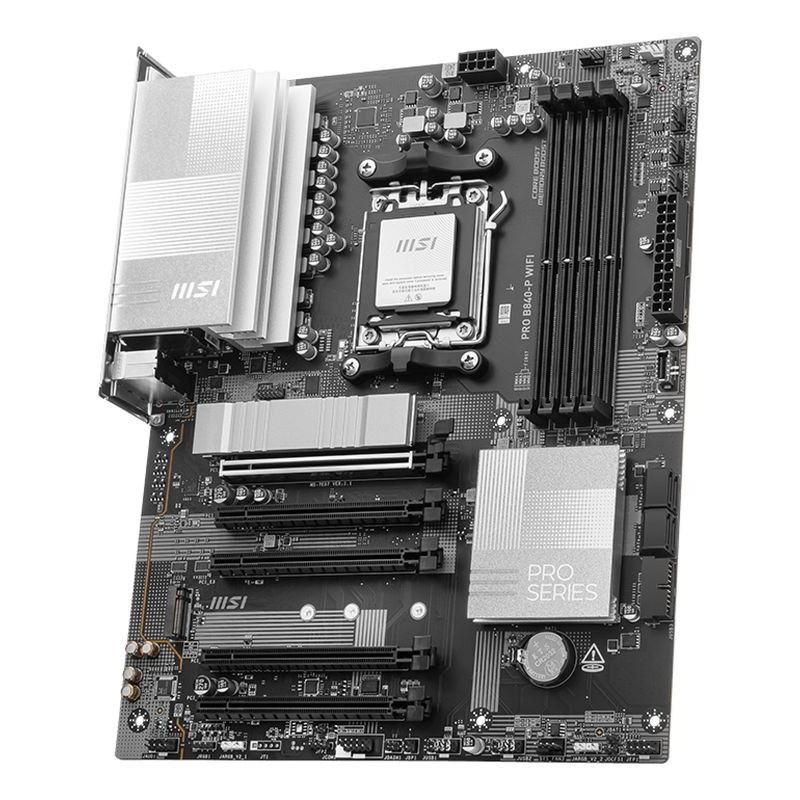

MSI Pro B840-P Wifi (B840,AM5,ATX,DDR5)

Processor
Processor Socket
Socket AM5
Compatible Processors
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Slots
Socket AM5
Maximum Internal Memory Supported by Processor
256 GB
Processor Manufacturer
AMD
Memory
ECC Compatibility
Non-ECC
Supported Memory Types
DDR5 SDRAM
Memory Channels
Dual Channel
Maximum RAM
256 GB
Maximum Supported Memory Clock Speed
8000 MHz
Memory Type
DIMM
Supported Memory Speeds
4800, 5600, 8000 MHz
Number of Memory Slots
4
Memory Controller
RAID Level
0, 1, 10
RAID Support
Yes
Maximum Supported Number of HDDs
4
Supported Storage Drives
HDD & SSD
Number of Supported Storage Drives
6
Supported Storage Drive Interfaces
M.2, Micro SATA III
Graphics
Built-in Graphics Adapter
No
Internal I/O Ports
Number of Chassis Fan Connectors
5
SATA Ports
0
Number of Water Pump Connectors
1
SATA III Ports
4
Total Number of SATA Ports
4
Number of SATA Express Connectors
0
Number of USB 2.0 Ports
4
Number of CPU Fan Connectors
1
RGB LED Header
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Ports
2
Number of RGB LED Headers
3

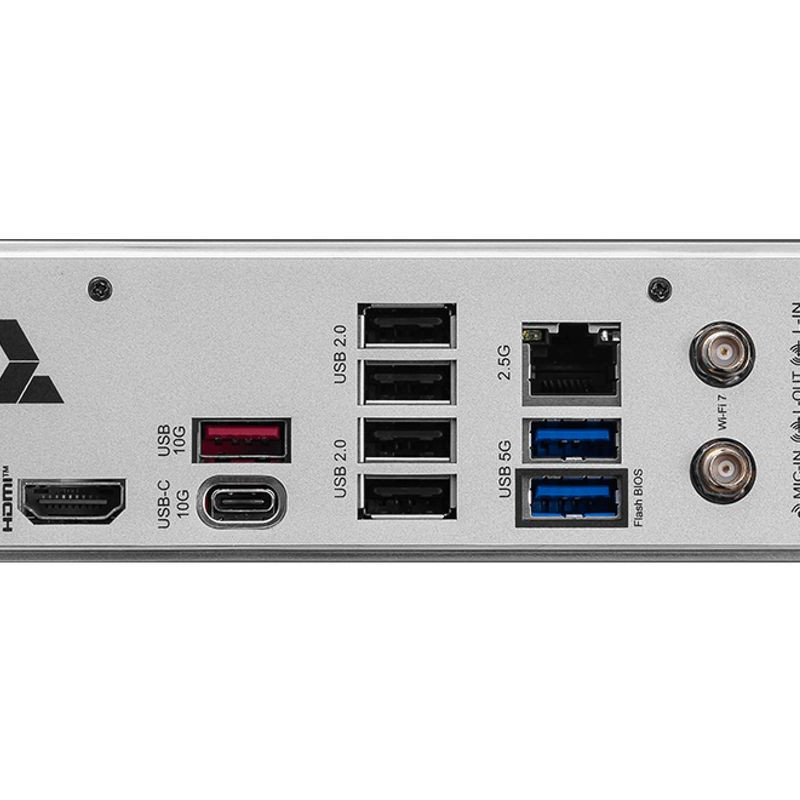

Rear I/O Ports
Number of USB 2.0 Ports
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports
2
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports
1
Number of VGA (D-Sub) ports
0
Number of DVI-D ports
0
Number of Ethernet LAN ports (RJ-45)
1
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports
1
Number of HDMI ports
1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports
0
HDMI version
2.1
Network
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth
Yes
Ethernet/LAN
Yes
Bluetooth Version
5.4
Ethernet Interface Type
2.5 Gigabit Ethernet
WLAN
Yes
Top WLAN Standard
Wi-Fi 7 (802.11be)
Features
Motherboard Chipset Family
AMD
Audio Channels
7.1 Channels
Product Color
Black
Motherboard Chipset
AMD B840
Audio Chip
Realtek ALC897
Supports Windows Operating Systems
Windows 11 x64
Component for
PC
Motherboard Form Factor
ATX
Expansion Slots
1. M.2 Highest PCI Express Generation
4.0
1. M.2 Largest Key Size
2280
2. M.2 Largest Key Size
22110
2. M.2 Highest PCI Express Generation
4.0
PCI Express x16 (Gen 3.x) ports
4
Number of M.2 (M) slots
2
PCI Express x16 slots (Gen 4.x)
1
BIOS
ACPI version
6.5
System management BIOS (SMBIOS) version
3.7
BIOS type
UEFI AMI
Weight and dimensions
Width
243.8 mm
Depth
304.8 mm
Other features
Number of mSATA ports
0
