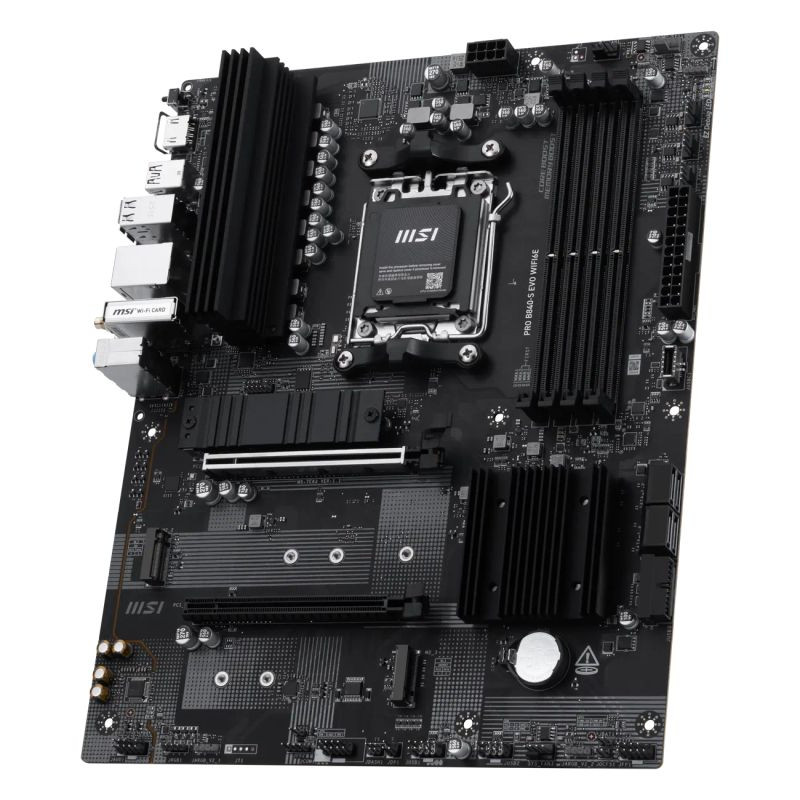

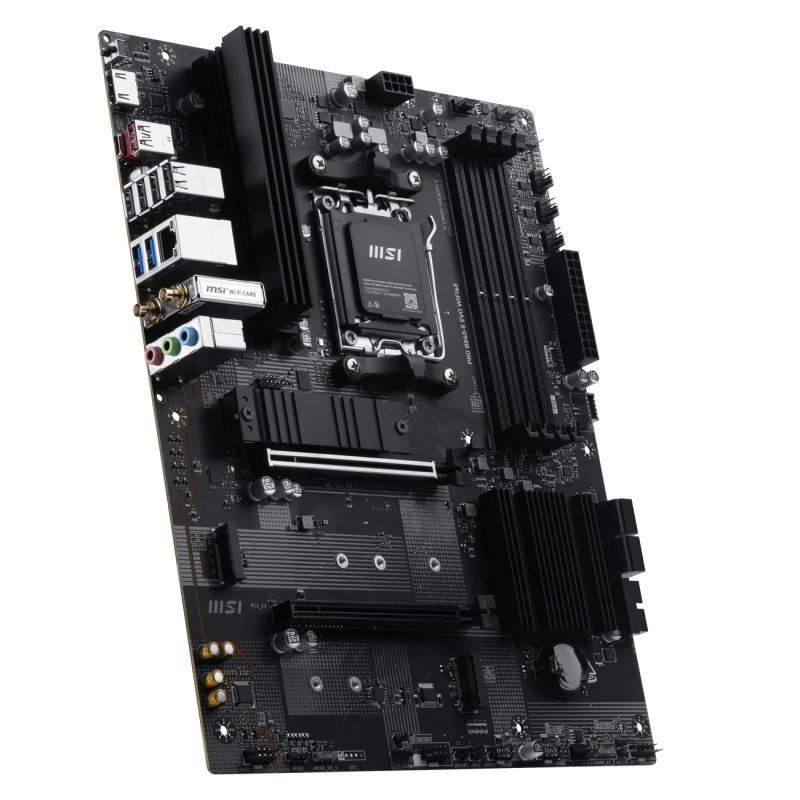

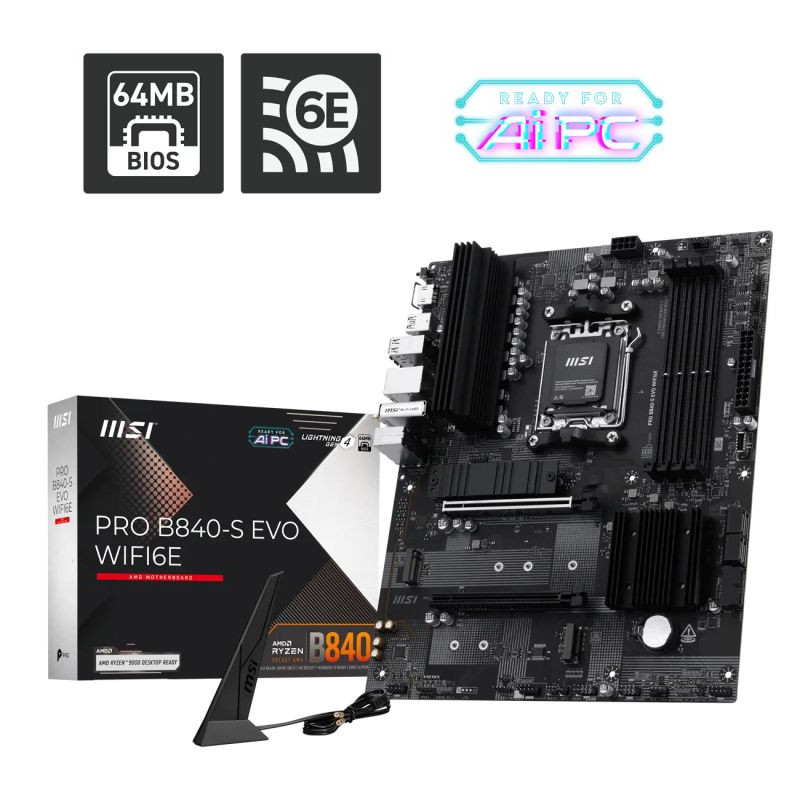

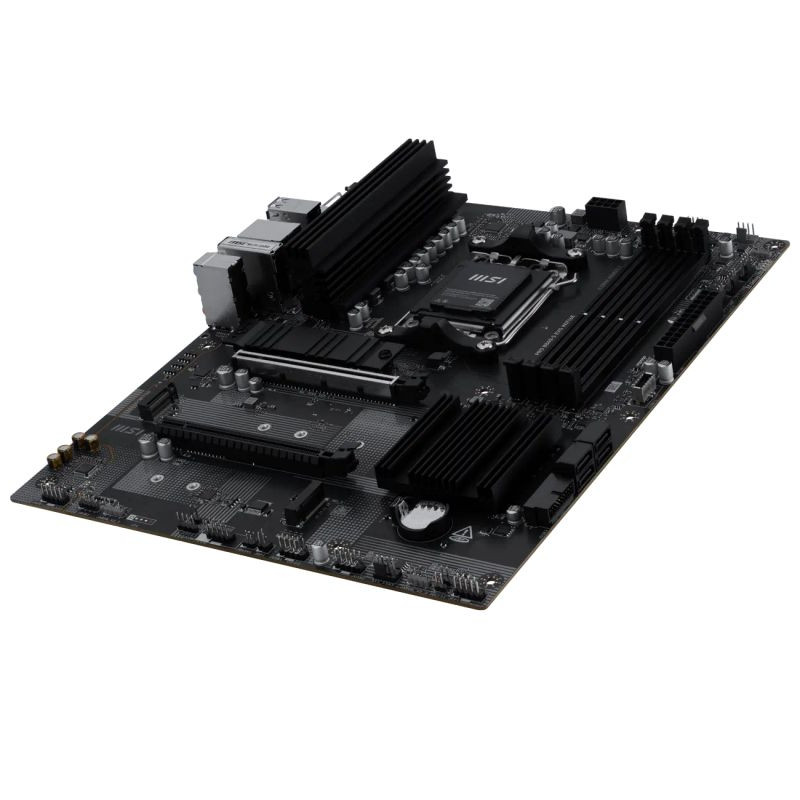

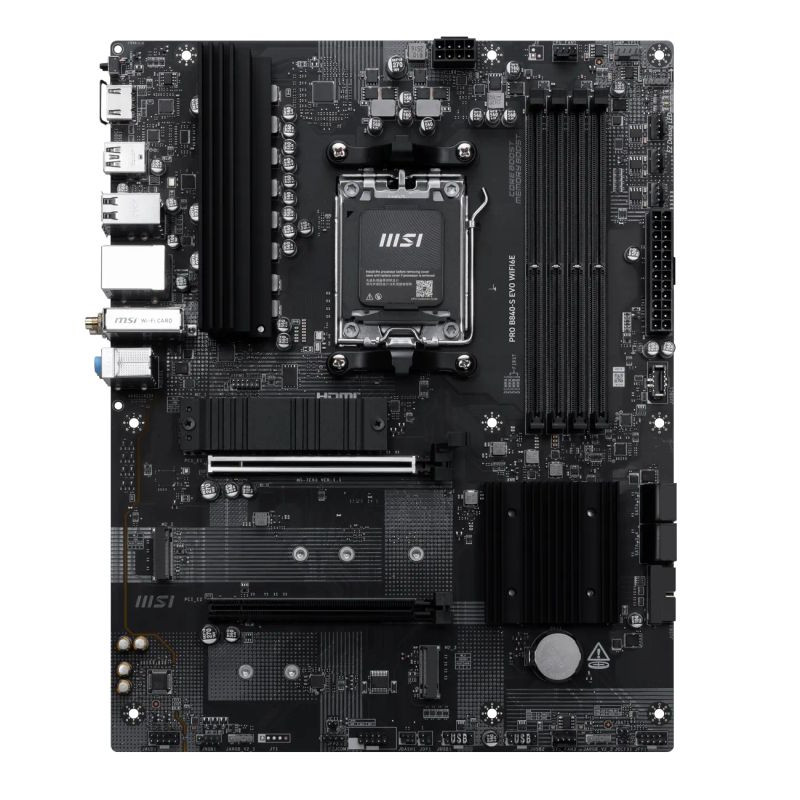

MSI Pro B840-S Evo Wifi6E (B840,AM5,ATX,DDR5)

Processor
Processor Manufacturer
AMD
Compatible Processors
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Sockets
Socket AM5
Processor Socket
Socket AM5
Memory
Supported Memory Types
DDR5 SDRAM
Memory Type
DIMM
ECC Compatibility
Non-ECC
Maximum Memory Clock Speed
8000 MHz
Number of Memory Slots
4
Supported Memory Speeds
4800, 5600, 8000, 6400 MHz
Maximum RAM Capacity
256 GB
Memory Channels
Dual Channel
Memory Controller
RAID Level
0, 1, 10
RAID Support
Yes
Number of Supported Storage Drives
7
Supported Storage Drive Interfaces
M.2, Micro SATA III
Supported Storage Drives
HDD & SSD
Maximum Supported Number of HDDs
4
Graphics
Built-in Graphics Adapter
No
Parallel Processing Technology
Not Supported
Internal I/O Ports
Number of RGB LED Headers
3
Total Number of SATA Ports
4
SATA III Ports
4
USB 3.2 Gen 2 (3.1 Gen 2) Ports
1
RGB LED Header
Yes
SATA Ports
0
Number of Water Pump Ports
1
Number of CPU Fan Ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Ports
2
Number of SATA Express Connectors
0
Number of USB 2.0 Ports
4
Number of Chassis Fan Connectors
5
Rear I/O Ports
Number of USB 2.0 Ports
4
HDMI Version
2.1
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C Ports
0
Number of Ethernet LAN Ports (RJ-45)
1
Number of DVI-D ports
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports
2
Number of VGA (D-Sub) ports
0
Number of HDMI ports
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports
1
Features
Motherboard form factor
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B840
Product color
Black
Supported Windows operating systems
Windows 11 x64
Audio chip
Realtek ALC897
Component for
PC
Audio channels
7.1 channels
Expansion slots
1. Largest M.2 key size
2280
2. Highest M.2 PCI Express generation
4.0
PCI Express x16 slots (Gen 4.x)
1
1. M.2 highest PCI Express generation
4.0
2. M.2 largest key size
22110
Number of M.2 (M) slots
2
PCI Express x16 (Gen 3.x) ports
4
BIOS
System Management BIOS (SMBIOS) Version
3.7
BIOS Type
UEFI AMI
ACPI Version
6.5
Weight and Dimensions
Width
243.8 mm
Depth
304.8 mm
