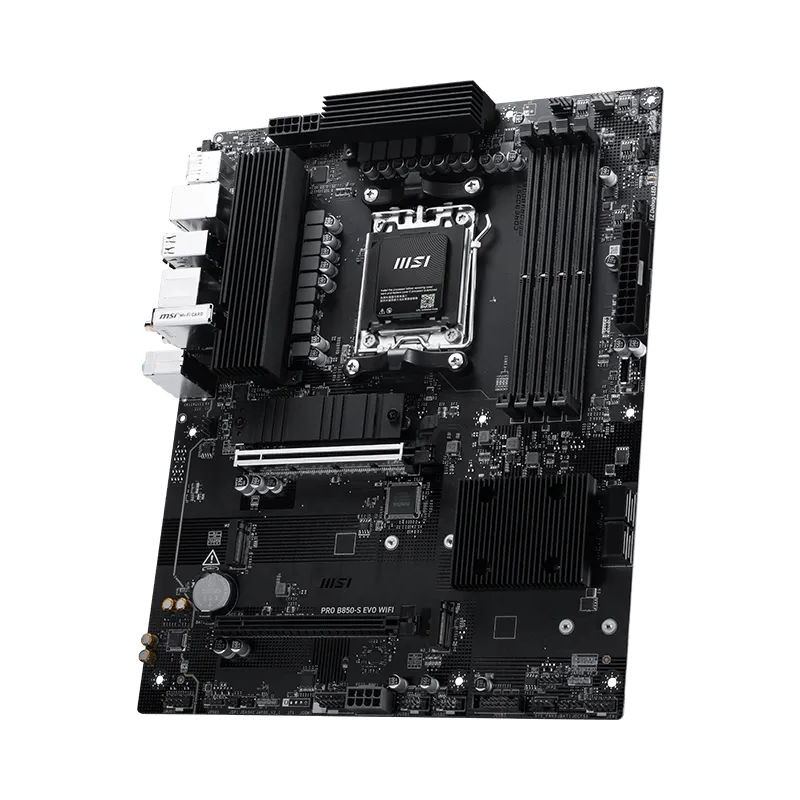

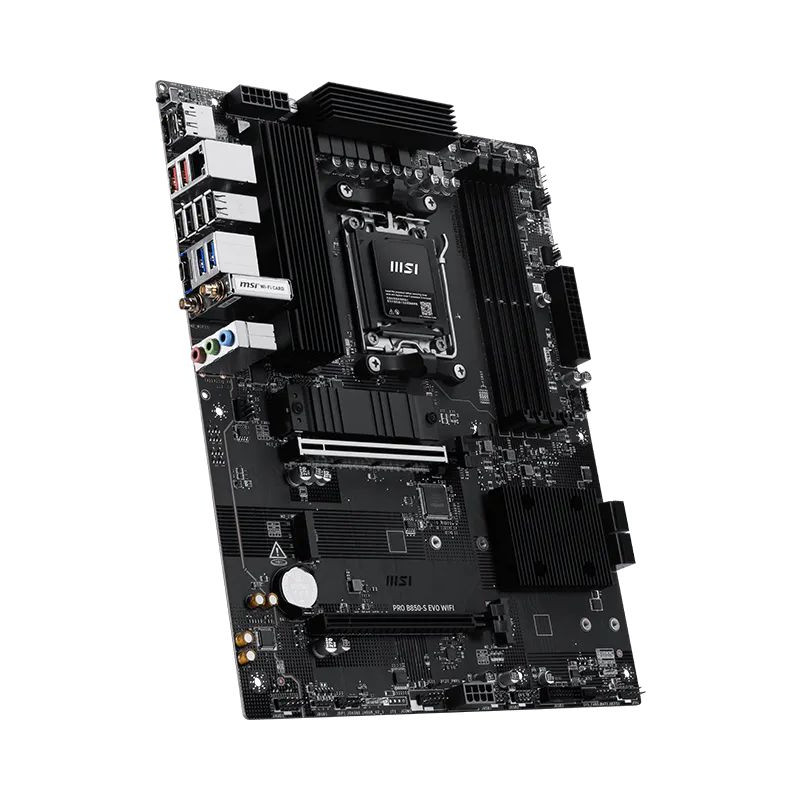

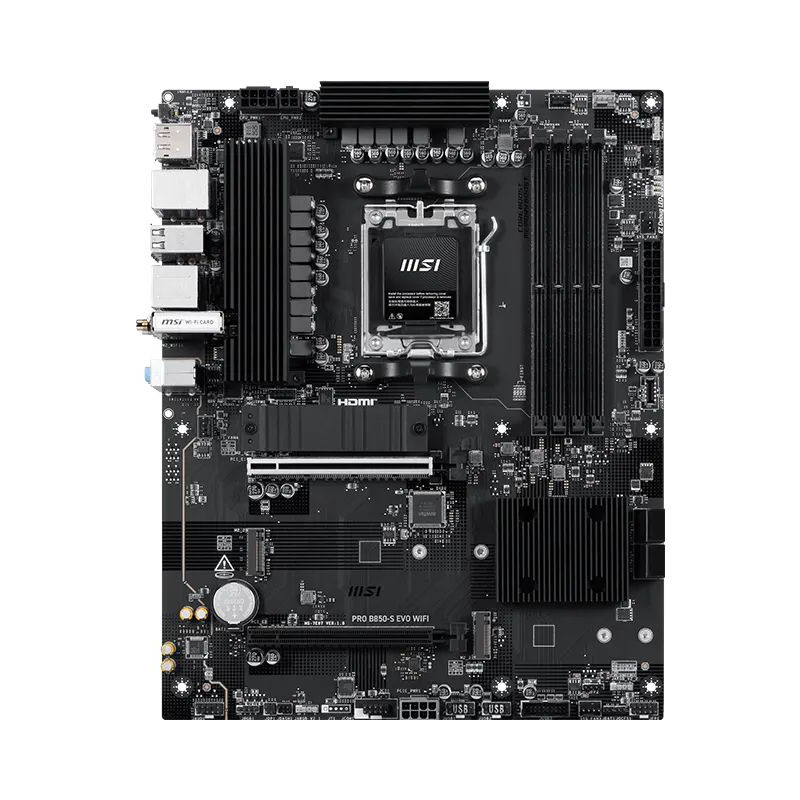

MSI Pro B850-S Evo WiFi (B850,AM5,ATX,DDR5)

Processor
Processor Socket
Socket AM5
Processor Manufacturer
AMD
Compatible Processors
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memory
Supported Memory Speeds
8200, 5600, 4800 MHz
Supported Memory Types
DDR5 SDRAM
Unbuffered Memory
Yes
Memory Type
DIMM
Maximum Memory Clock Speed
8200 MHz
ECC Compatibility
Non-ECC
Maximum RAM Capacity
256 GB
Number of Memory Slots
4
Memory Channels
Dual Channel
Memory Controller
RAID Level
0, 1, 10
Supported Storage Drives
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA
Maximum Supported Number of HDDs
4
RAID Support
Yes
Number of Supported Storage Drives
7
Graphics
Built-in Graphics adapter
No
Parallel processing technology
Not supported
Internal I/O ports
Chassis intrusion connector
Yes
CPU fan connector
Yes
Front panel audio connector
Yes
SATA II ports
0
Number of USB 2.0 ports
4
USB 3.2 Gen 2 (3.1 Gen 2) ports
1
Total number of SATA ports
4
RGB LED header
Yes
Number of COM ports
1
Front panel connector
Yes
SATA III ports
4
Audio connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) ports
2
Power fan connector
Yes
TPM connector
Yes
SATA ports
0
Number of CPU fan connectors
1

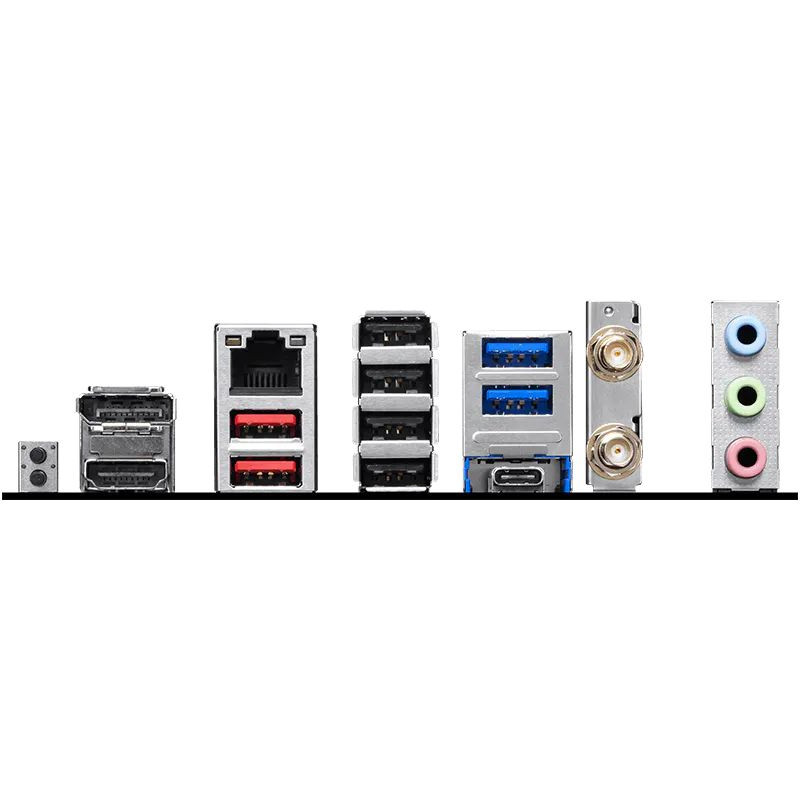

Rear I/O ports
Number of Ethernet LAN ports (RJ-45)
1
DisplayPort version
1.4
Number of DVI-D ports
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports
0
Number of HDMI ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports
1
Number of USB 2.0 ports
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports
0
Number of VGA (D-Sub) ports
0
Number of DisplayPort ports
1
HDMI version
2.1
Network
Wi-Fi
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet/LAN
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
Bluetooth
Yes
Features
Motherboard chipset
AMD B850
Component for
PC
Audio Channels
7.1 Channels
Product Color
Black
Motherboard Form Factor
ATX
Motherboard Chipset Family
AMD
Power Source
ATX
Audio Chip
Realtek ALC897
Expansion Slots
PCI Express x16 Slots (Gen 4.x)
1
1. Largest M.2 Key Size
2280
1. Highest M.2 PCI Express Generation
5.0
3. Highest M.2 PCI Express Generation
4.0
2. Highest M.2 PCI Express Generation
4.0
PCI Express x4 Slots (Gen 4.x)
1
3. Largest M.2 Key Size
2280
PCI Express x1 (Gen 3.x) Slots
1
2. Largest M.2 Key Size
22110
Number of M.2 (M) Slots
3
BIOS
BIOS Type
UEFI AMI
BIOS Memory Size
512 Mbit
ACPI Version
6.5
System Management BIOS (SMBIOS) Version
3.7
Weight and Dimensions
Depth
304.8 mm
Width
243.8 mm
Scope of Delivery
Screws Included
Yes
Antenna Included
Yes
Cables Included
SATA
