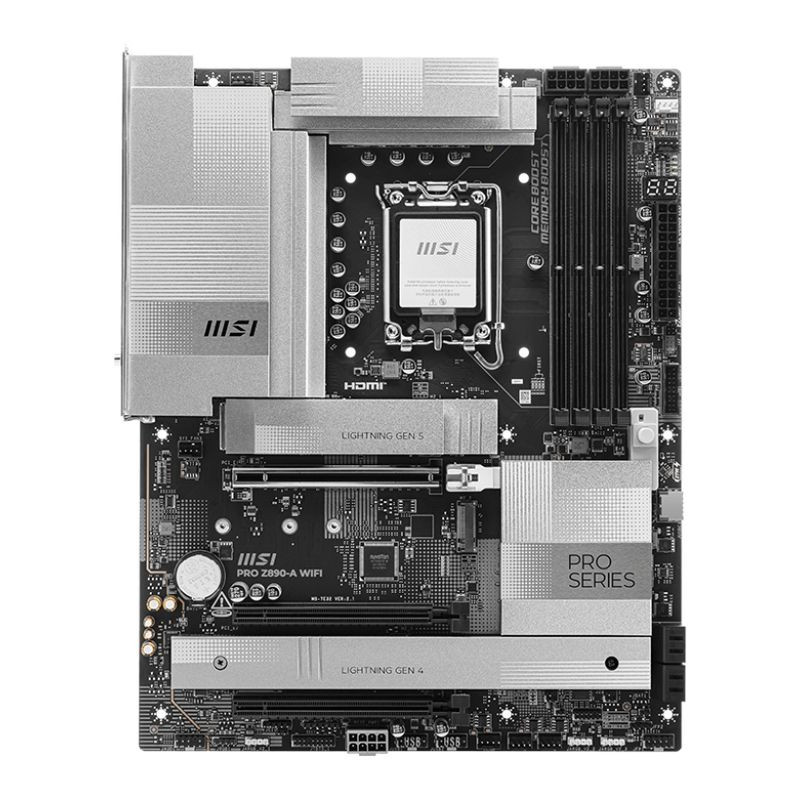

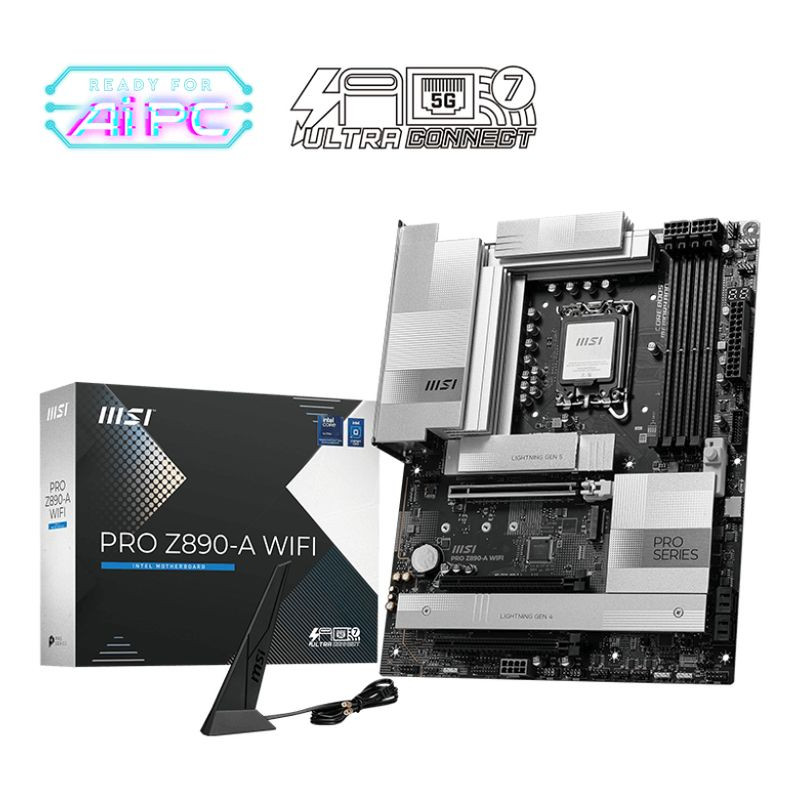

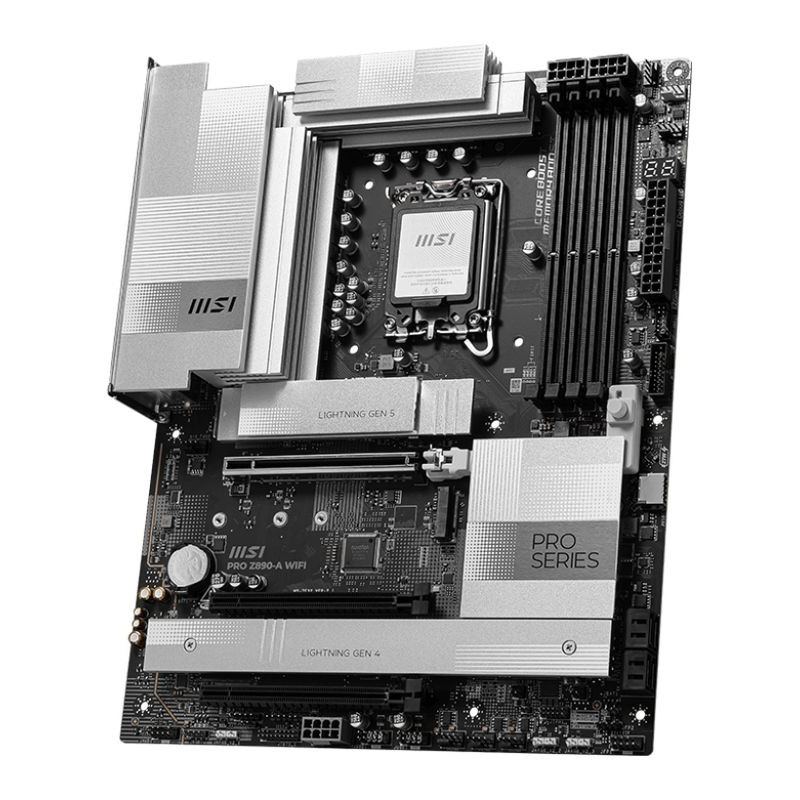

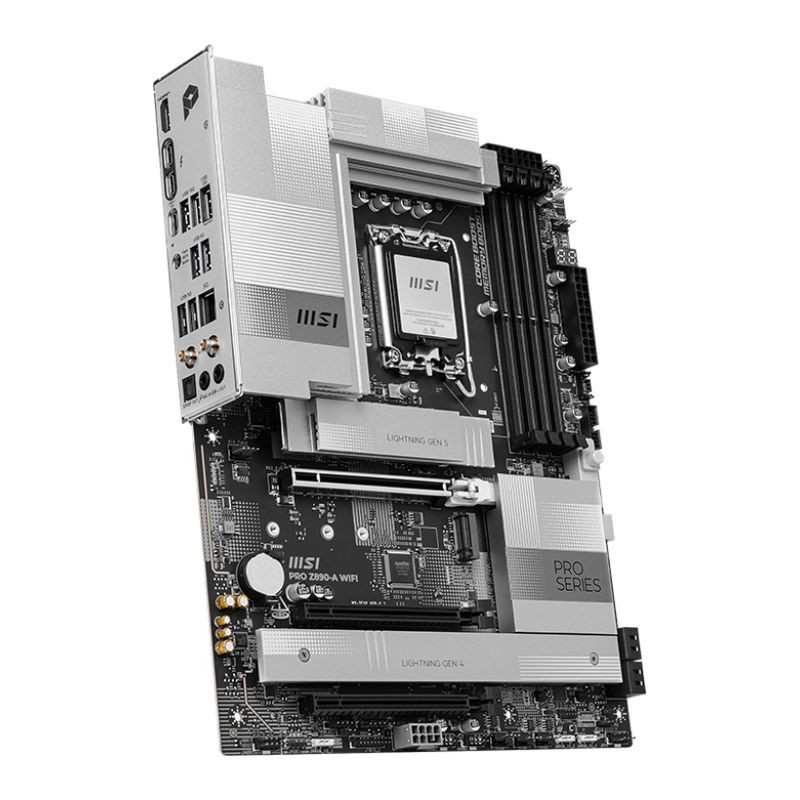

MSI Pro Z890-A WiFi (Z890,S1851,ATX,DDR5)

Processor
Processor Socket
LGA 1851 (Socket V1)
Supported Processor Slots
LGA 1851
Compatible Processors
Intel Core Ultra (Series 2)
Processor Manufacturer
Intel
Maximum Internal Memory Supported by Processor
256 GB
Memory
Number of Memory Slots
4
Memory Channels
Dual Channel
Memory Type
DIMM
Supported Memory Types
DDR5 SDRAM
ECC Compatibility
Non-ECC
Maximum RAM Capacity
256 GB
Supported Memory Speeds
6400, 9200 MHz
Maximum Memory Clock Speed
9200 MHz
Memory Controller
Supported Storage Drive Interfaces
M.2, SATA III
RAID Support
Yes
Number of Supported Storage Drives
4
Maximum Supported Number of HDDs
8
RAID Levels
0, 1, 5, 10
Supported Storage Drives
HDD & SSD
Graphics
Built-in Graphics Adapter
No
Internal I/O Ports
SATA II Ports
0
USB 3.2 Gen 1 (3.1 Gen 1) Ports
2
CPU Fan Connector
Yes
ATX Power Connector (24-pin)
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Ports
1
Total Number of SATA Ports
4
Number of EPS Power Connectors (4-pin)
1
SATA Ports
0
SATA III Ports
4
Number of USB 2.0 Ports
4
EPS Power Connector (8-pin)
Yes
TPM Port
Yes

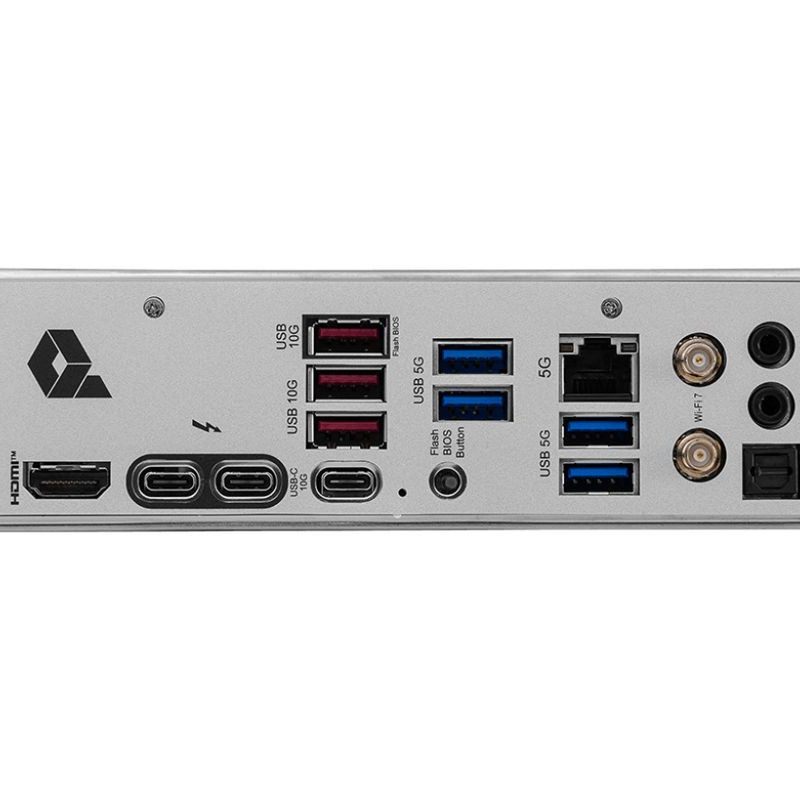

Rear I/O Ports
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-A Ports
4
Number of VGA (D-Sub) Ports
0
HDMI Version
2.1
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-A Ports C
0
DisplayPort version
1.4
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-A ports
3
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports
1
Number of Thunderbolt ports
1
Number of DisplayPort ports
1
Number of Ethernet LAN ports (RJ-45)
1
Number of HDMI ports
1
Number of USB 2.0 ports
0
Network
Bluetooth version
5.4
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type
5 Gigabit Ethernet
Wi-Fi
Yes
Bluetooth
Yes
Ethernet/LAN
Yes
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Features
Motherboard Chipset
Intel Z890
Motherboard Form Factor
ATX
Supports Windows Operating Systems
Windows 11 x64
Component for
PC
Audio Channels
7.1 Channels
Product Color
Black
Audio Chip
Realtek ALC897
Motherboard Chipset Family
Intel
Expansion Slots
PCI Express x16 Slots (Gen 5.x)
1
PCI Express x4 Slots (Gen 4.x)
2
Number of M.2 (M) Slots
4
Weight and Dimensions
Depth
304.8 mm
Width
243.8 mm
Other Features
Number of mSATA Ports
0
