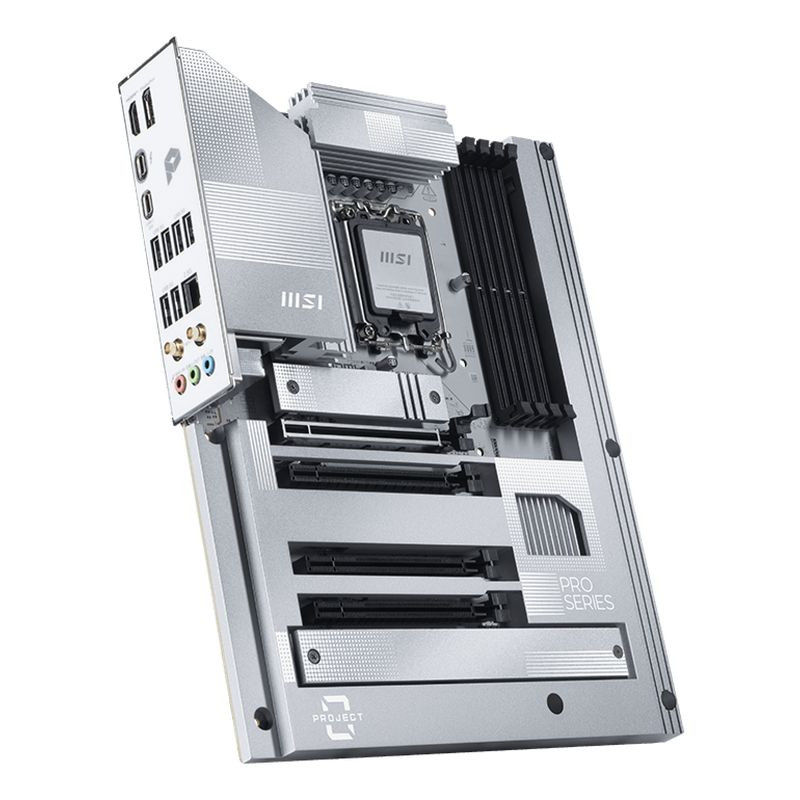

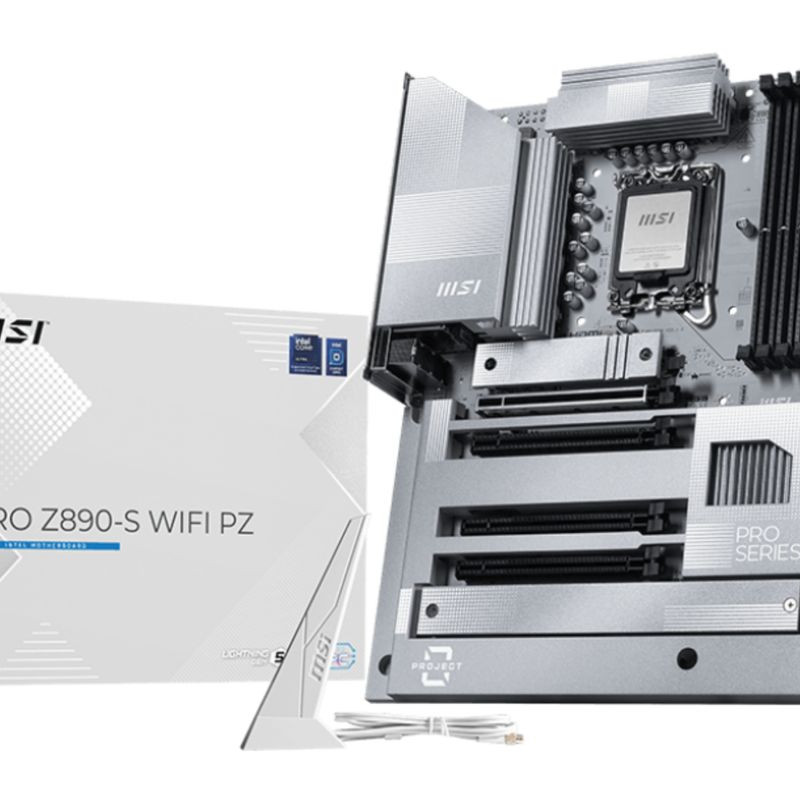

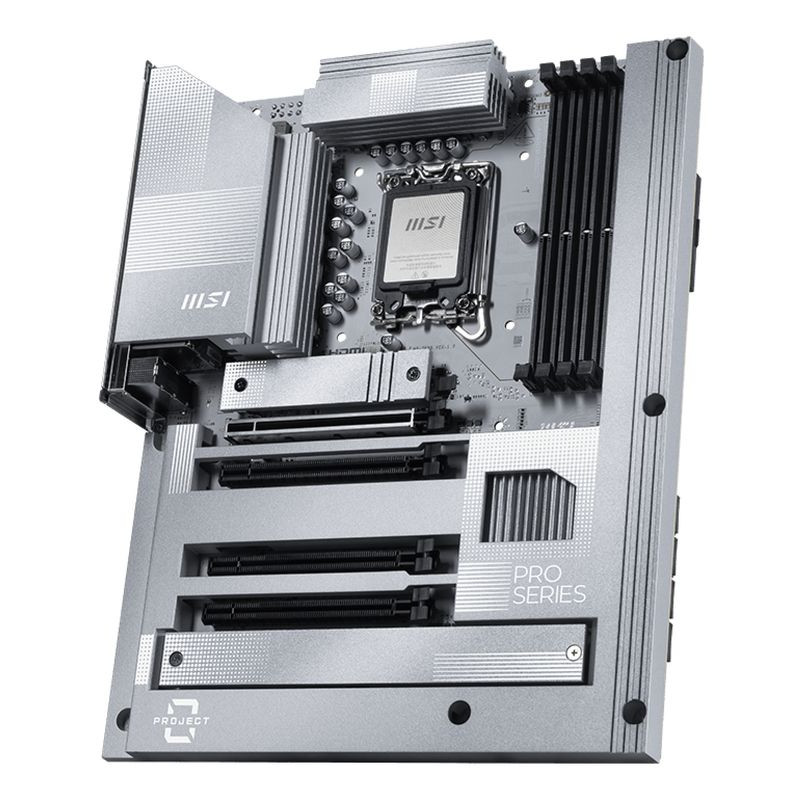

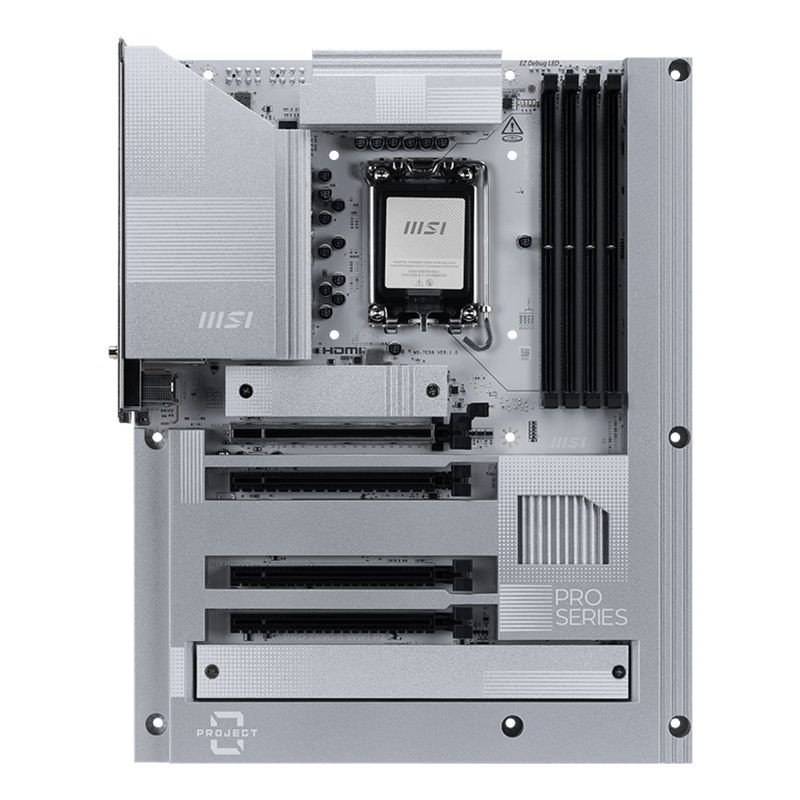

MSI PRO Z890-S Wifi Project Zero (Z890,S1851,ATX,DDR5)

Processor
Maximum internal memory supported by the processor
256 GB
Compatible processors
Intel Core Ultra (Series 2)
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Supported processor slots
LGA 1851
Memory
Supported memory types
DDR5 SDRAM
Supported maximum memory clock speed
8800 MHz
Supported memory speeds
4800, 6400, 8800 MHz
Number of memory slots
4
Memory channels
Dual channel
Memory type
DIMM
Maximum RAM capacity
256 GB
ECC compatibility
Non-ECC
Memory controller
Number of supported storage drives
4
RAID support
Yes
RAID level
0, 1, 5, 10
Supported storage drive interfaces
M.2, SATA III
Maximum supported number of HDD
7
Supported Storage Drives
HDD & SSD
Graphics
Built-in Graphics Adapter
No
Internal I/O Ports
Total Number of SATA Ports
4
USB 3.2 Gen 1 (3.1 Gen 1) Ports
2
SATA Ports
0
SATA III Ports
4
SATA II Ports
0
USB 3.2 Gen 2 (3.1 Gen 2) Ports
1
Number of USB 2.0 Interfaces
4

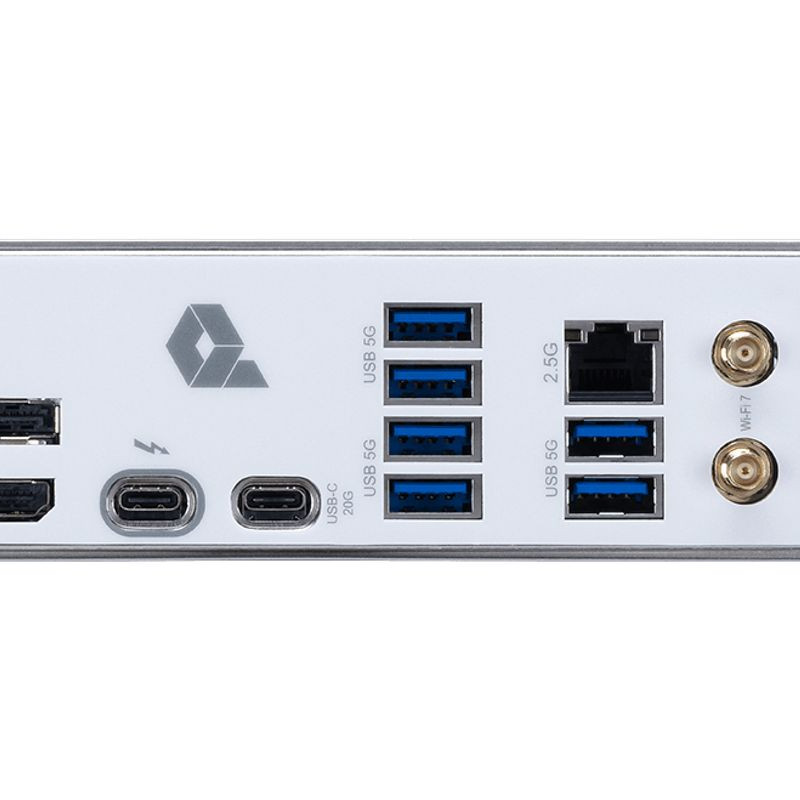

Rear I/O Ports
DisplayPort Version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports
6
Number of HDMI Ports
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C Ports
1
Number of Thunderbolt Ports
1
Number of DisplayPort Ports
1
HDMI Version
2.1
Number of Ethernet LAN Ports (RJ-45)
1
Network
Ethernet Interface Type
2.5 Gigabit Ethernet
Bluetooth
Yes
Ethernet/LAN
Yes
Top WLAN Standard
Wi-Fi 7 (802.11be)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Wi-Fi
Yes
Bluetooth Version
5.4
Features
PC Health Monitoring
Fan, Temperature, Voltage
Audio Channels
7.1 Channels
Supported Windows Operating Systems
Windows 11 x64
Motherboard Chipset Family
Intel
Audio Chip
Realtek ALC897
Motherboard Chipset
Intel Z890
Product Color
Silver, White
Motherboard Form Factor
ATX
Component for
PC
Expansion Slots
Number of M.2 (M) Slots
3
PCI Express x16 Slots
4
Processor Features
Intel® Extreme Memory Profile (XMP)
Yes
Weight and Dimensions
Width
243.8 mm
Depth
304.8 mm
Other Features
Number of mSATA Ports
0
