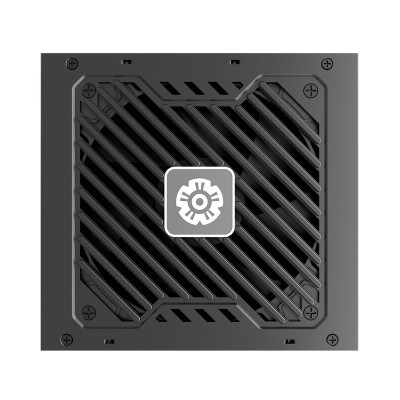

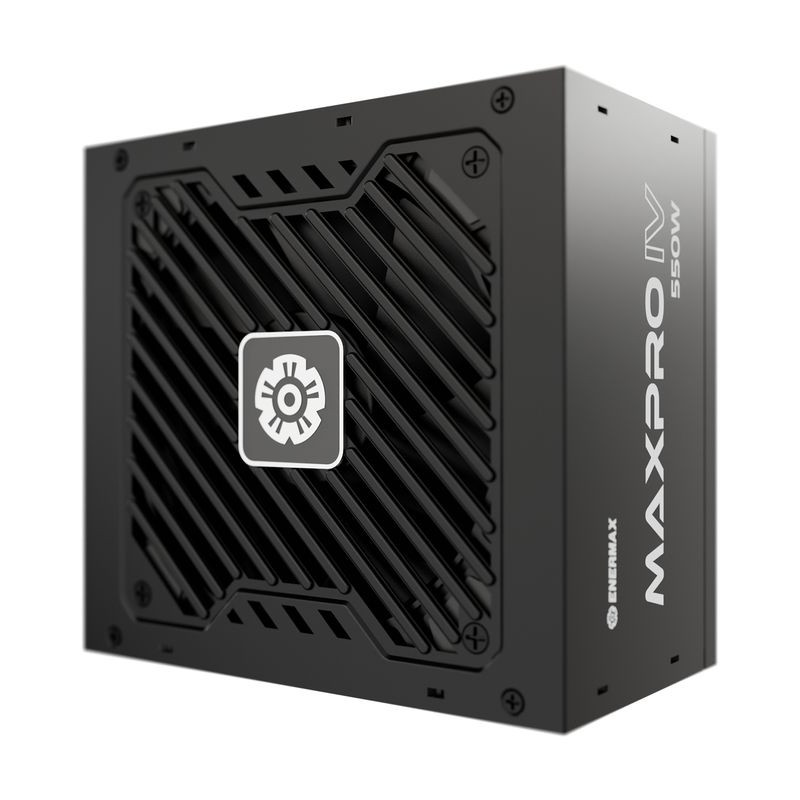

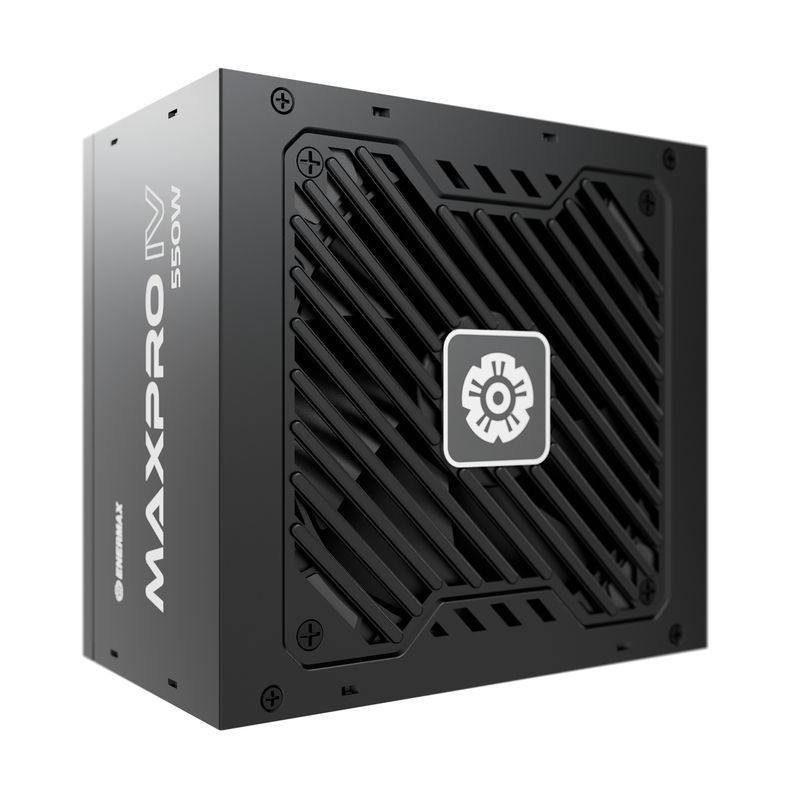

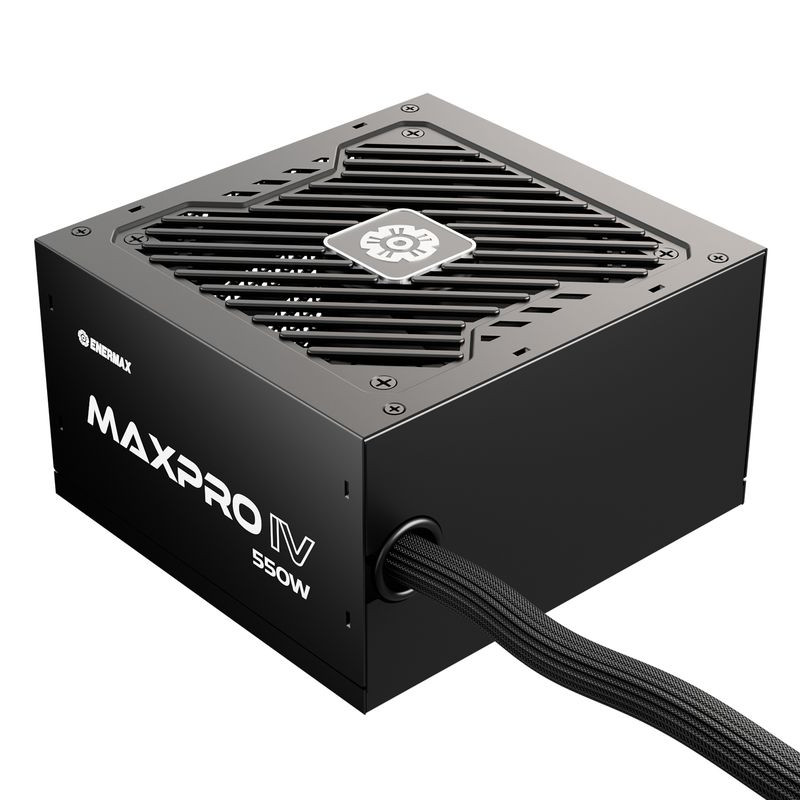

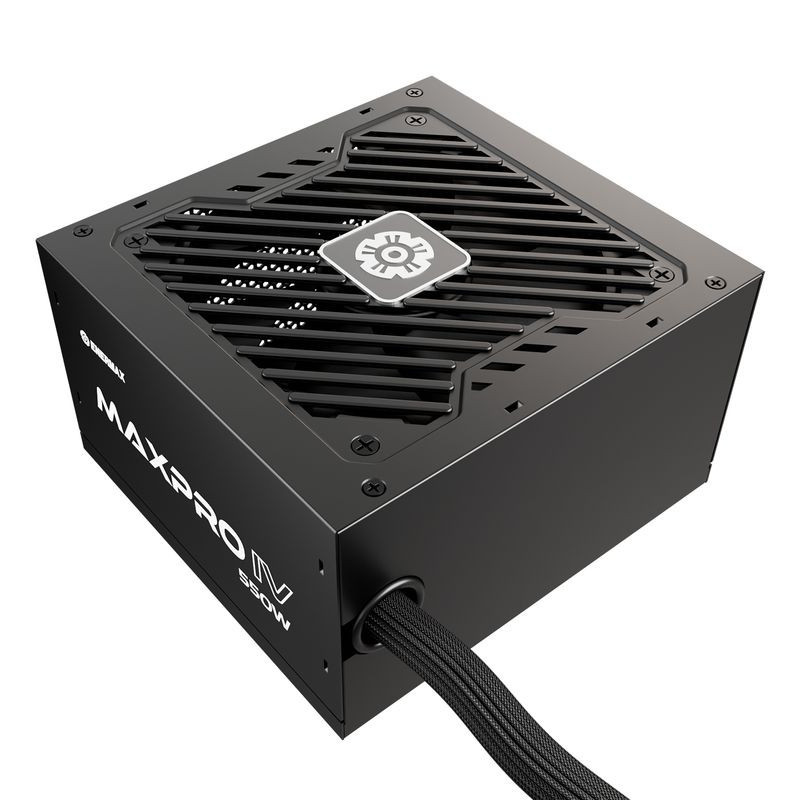

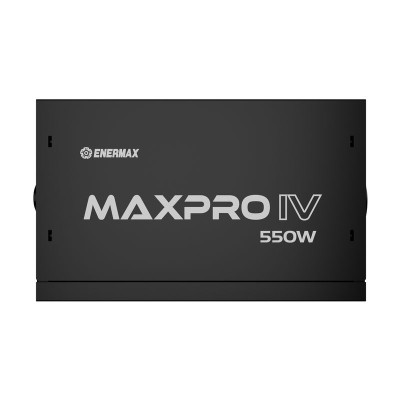

Enermax MAXPRO IV 550W 80+ 230V EU Standard Non-Modular

Power
AC Input Frequency
50/60 Hz
Max. Output Current (-12V)
0.3 A
Max. Output Current (+5Vsb)
2.5 A
Max. Output Current (+5V)
15 A
Combined Current (+5V)
100 W
AC Input Voltage
200 - 240 V
Input Current
5 A
Combined Current (+5Vsb)
12.5 W
Max. Output Current (+12V)
41 A
Max. Output Current (+3.3V)
15 A
Total Power
550 W
Combined Current (+12V)
492 W
Combined Current (+3.3V)
100 W
Energy Protection Features
Overload, Overvoltage, Undervoltage
Combined Current (-12V)
3.6 W
Connections and Interfaces
Motherboard Connector
20+4 pin ATX
Cable Type
Non-modular
EPS Power Connector (4+4-pin)
Yes
Number of PCI Express power connectors: 6+2-pin
2
Performance
Mean Time Between Failures (MTBF)
100,000 h
Purpose
PC
80 Plus Certification
80 PLUS
Design
Fan Diameter
12 cm
Product Color
Black
Weight and Dimensions
Height
86 mm
Width
150 mm
Depth
140 mm
