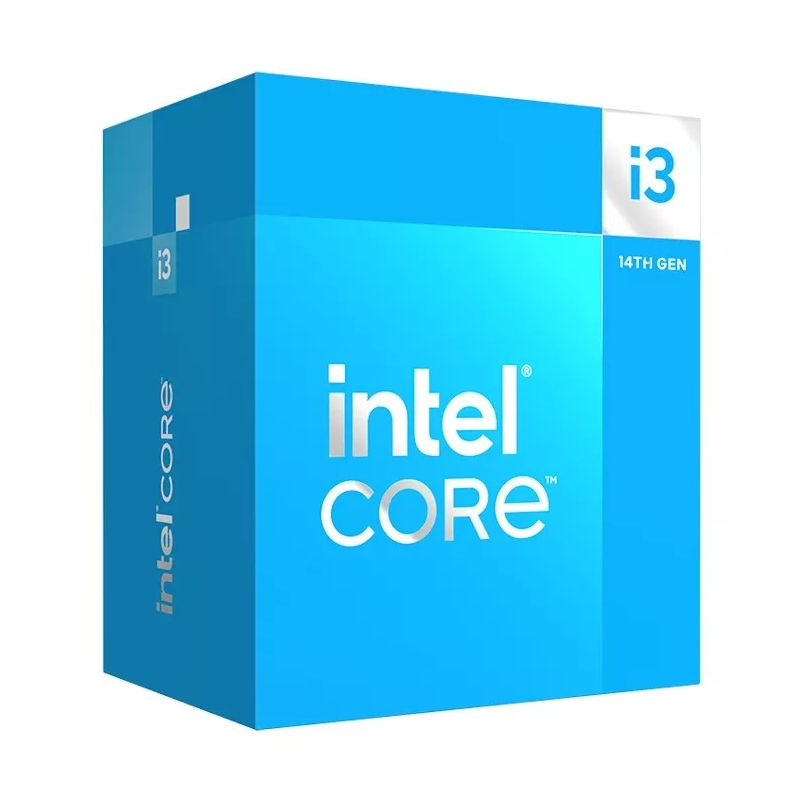

Intel Core i3 14100 Box

Processor
Processor Codename
Raptor Lake
Cooler Included
Yes
Processor Threads
8
Performance Core Boost Frequency
4.7 GHz
Performance Core Base Frequency
3.5 GHz
Maximum Memory Bandwidth Supported by Processor
76.8 GB/s
Performance Cores
4
Maximum Turbo Power
110 W
Number of Processor Cores
4
Processor Generation
Intel Core i3-14xxx
Maximum Number of DMI Lanes
8
Processor Cache Type
Smart Cache
Processor Cache
12 MB
Processor Family
Intel® Core™ i3
Packaging Type
Box
Stepping
H0
Efficient Cores
0
Processor
i3-14100
Processor Operating Modes
64-bit
Base Processor Power Consumption
60 W
Processor Boost Frequency
4.7 GHz
Processor Socket
LGA 1700
ARK Processor Identification
236774
Processor Manufacturer
Intel
Memory
Memory Types Supported by Processor
DDR4 SDRAM, DDR5 SDRAM
Memory Channels
Dual Channel
Maximum Memory Bandwidth
76.8 GB/s
Maximum Internal Memory Supported by Processor
192 GB
Graphics
On-Board Graphics Adapter OpenGL Version
4.5
Maximum Dynamic Frequency of On-Board Graphics Adapter
1500 MHz
On-Board Graphics Adapter Device ID
0x4692
Maximum Resolution of On-Board Graphics Adapter (DisplayPort)
7680 x 4320 Pixels
Multi-Format Codec Engines
1
Built-in Graphics Adapter
Yes
Built-in Graphics Card Model
Intel UHD Graphics 730
On-Board Graphics Adapter DirectX Version
12.0
Number of Supported Displays (On-Board Graphics)
4
On-Board Graphics Adapter Refresh Rate at Maximum Resolution (eDP - Integrated) Flat panel display)
120 Hz
Discrete graphics card model
Not available
Maximum resolution of the on-board graphics adapter (eDP - integrated flat panel display)
5120 x 3200 pixels
Refresh rate of the on-board graphics adapter at maximum resolution (HDMI)
60 Hz
Discrete graphics adapter
No
Number of processing units
24
Refresh rate of the on-board graphics adapter at maximum resolution (DisplayPort)
60 Hz
Integrated graphics adapter maximum resolution (HDMI)
4096 x 2160 pixels
On-board graphics adapter supported outputs
Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
Features
Idle states
Yes
Maximum number of PCI Express lanes
20
Market segment
Desktop
PCI Express slot version
4.0, 5.0
Direct Media Interface (DMI) Revision
4.0
Execute Disable Bit
Yes
Thermal Monitoring Technologies
Yes
Embedded Options Available
Yes
Supported Instruction Sets
AVX 2.0, SSE4.1, SSE4.2
CPU Configuration (max)
1
Export Control Classification Number (ECCN)
5A992C
Usage Conditions
PC/Client/Tablet
Scalability
1S
Commodity Classification System for Automated Traceability (CCATS)
740.17B1
PCI Express Configurations
1x16+1x4, 2x8+1x4
Processor Features
Intel® Speed ​​Shift Technology
Yes
Intel® Standard Manageability (ISM)
Yes
Intel® Hyper-Threading Technology (Intel® HT Technology)
Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU
Yes
Intel® Secure Key
Yes
Intel® Clear Video HD Technology for (Intel® CVT HD)
Yes
Intel® OS Guard
Yes
Mode-Based Execute Control (MBE)
Yes
Intel® Virtualization Technology (VT-X)
Yes
Intel® 64
Yes
Intel® Virtualization Technology for Direct I/O (VT-d)
Yes
Intel® Volume Management Device (VMD)
Yes
Intel® VT-x with Extended Page Tables (EPT)
Yes
Intel® Turbo Boost Technology
2.0
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0
Yes
Intel® Enhanced SpeedStep Technology
Yes
Intel® Control-flow Enforcement Technology (CET)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Boot Guard
Yes
Intel® Quick Sync Video Technology
Yes
Operating Conditions
Tjunction
100 °C
Logistics Data
Commodity Tariff Number (HS)
8542310001
Technical Details
OpenCL Version
3.0
Status
Launched
Start Date
Q1 2024
Packaging Data
Packaging Type
Retail Box
Weight and Dimensions
Processor Package Size
45 x 37.5 mm
Other Features
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
L2 Buffer Memory
5120 KB
Maximum RAM Memory
192 GB
