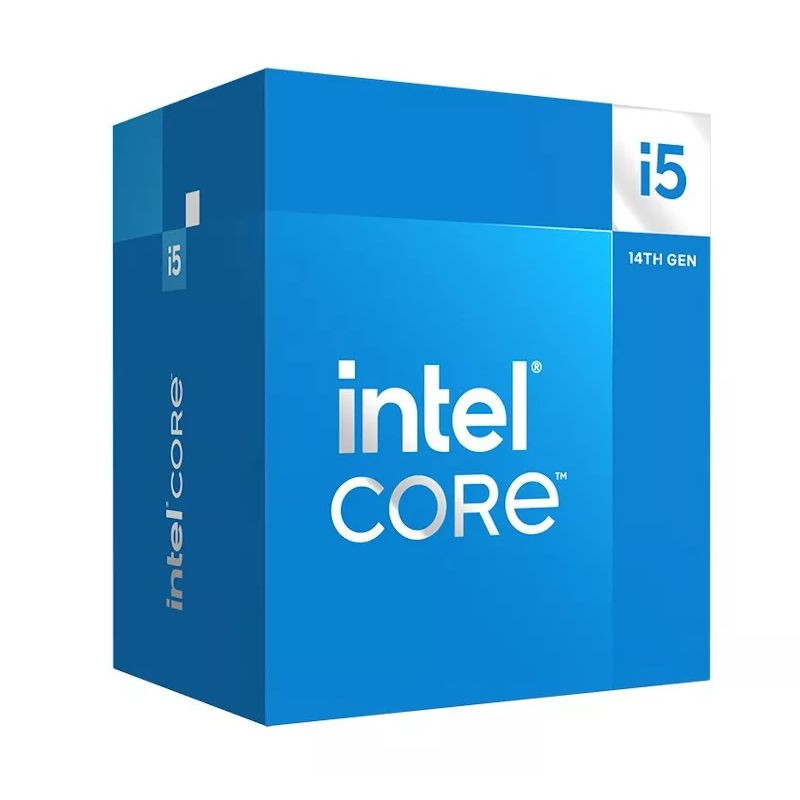

Intel Core i5 14400 Box

Processor
Packaging Type
Box
Maximum Turbo Power
148 W
ARK Processor Identification
236788
Number of Processor Cores
10
Processor Boost Frequency
4.7 GHz
Processor Cache
20 MB
Processor
i5-14400
Processor Codename
Raptor Lake
Efficient Core Boost Frequency
3.5 GHz
Processor Cache Type
Smart Cache
Performance Core Boost Frequency
4.7 GHz
Efficient Cores
4
Maximum Memory Bandwidth Supported by Processor
76.8 GB/s
Base Processor Power
65 W
Performance Cores
6
Cooler Included
Yes
Efficient Core Base Frequency
1.8 GHz
Processor Manufacturer
Intel
Processor Operating Modes
64-bit
Processor Socket
LGA 1700
Processor Threads
16
Performance Core Base Frequency
2.5 GHz
Maximum number of DMI lanes
8
Processor family
Intel® Core™ i5
Processor generation
Intel Core i5-14xxx
Memory
Memory types supported by the processor
DDR4-SDRAM, DDR5-SDRAM
Maximum memory bandwidth
76.8 GB/s
Memory channels
Dual-channel
Maximum internal memory supported by the processor
192 GB
Graphics
On-board graphics adapter refresh rate at maximum resolution (HDMI)
60 Hz
Distinct graphics adapter
No
Maximum dynamic frequency of the on-board graphics adapter
1550 MHz
On-board graphics adapter device ID
0x4682/0xA782
Number of processing units
24
Maximum resolution of the on-board graphics adapter (eDP - integrated flat panel display)
5120 x 3200 pixels
Integrated graphics adapter maximum resolution (HDMI)
4096 x 2160 pixels
Integrated graphics adapter
Yes
On-board graphics adapter refresh rate at maximum resolution (DisplayPort)
60 Hz
On-board graphics adapter OpenGL version
4.5
On-board graphics adapter DirectX version
12.0
Multi-format codec engines
1
On-board graphics adapter supported outputs
Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
Discrete graphics card model
Not available
Maximum resolution of the on-board graphics adapter (DisplayPort)
7680 x 4320 pixels
Number of supported displays (on-board graphics)
4
Integrated graphics card model
Intel UHD Graphics 730
On-board graphics adapter refresh rate at maximum resolution (eDP - integrated flat panel display)
120 Hz
Features
Export Control Classification Number (ECCN)
5A992C
Idle States
Yes
PCI Express Slot Version
4.0, 5.0
Market Segment
Desktop
Supported Instruction Sets
AVX 2.0, SSE4.1, SSE4.2
Usage Conditions
PC/Client/Tablet
Execute Disable Bit
Yes
PCI Express Configurations
1x16+1x4, 2x8+1x4
Embedded Options Available
Yes
Direct Media Interface (DMI) Revision
4.0
Thermal Monitoring Technologies
Yes
Scalability
1S
Maximum Number of PCI Express Lanes
20
CPU Configuration (max)
1
Commodity Classification System for Automated Tracking (CCATS)
740.17B1
Processor Features
Intel® 64
Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU
Yes
Intel® Quick Sync Video Technology
Yes
Intel® Thread Director
Yes
Intel® Virtualization Technology for Direct I/O (VT-d)
Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0
Yes
Intel® Speed ​​Shift Technology
Yes
Intel® Virtualization Technology (VT-X)
Yes
Intel® Control-flow Enforcement Technology (CET)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Volume Management Device (VMD)
Yes
Intel® Standard Manageability (ISM)
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Hyper-Threading Technology (Intel® HT Technology)
Yes
Intel® VT-x with Extended Page Tables (EPT)
Yes
Intel® Secure Key
Yes
Intel® Turbo Boost Technology
2.0
Intel® OS Guard
Yes
Mode-Based Execute Control (MBE)
Yes
Intel Enhanced SpeedStep Technology
Yes
Intel® Boot Guard
Yes
Operating Conditions
Tjunction
100 °C
Logistics Data
Commodity Tariff Number (HS)
8542310001
Technical Details
Status
Launched
OpenCL Version
3.0
Launch Date
Q1 '24
Packaging Data
Packaging Type
Retail Box
Weight and Dimensions
Processor Package Size
45 x 37.5 mm
Other Features
L2 Buffer Memory
9728 KB
Maximum RAM Memory
192 GB
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
