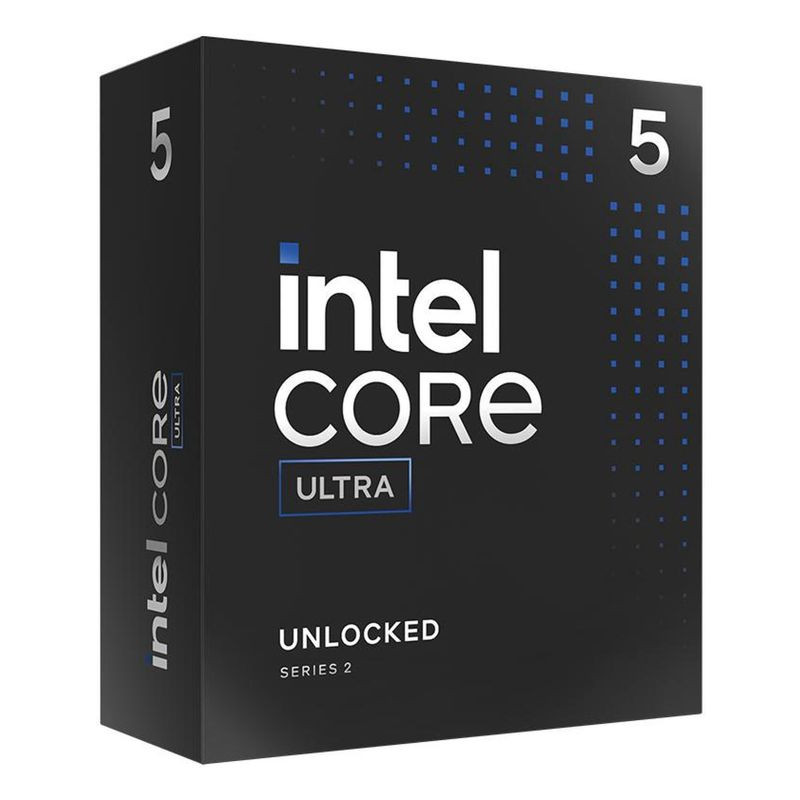

Intel Core Ultra 5 225 Box

Processor
Processor Threads
10
Performance Core Boost Frequency
4.9 GHz
Processor Codename
Arrow Lake
Processor Cache
20 MB
Processor Cache Type
Smart Cache
Efficient Core Boost Frequency
4.4 GHz
Processor
225
Processor Operating Modes
64-bit
Efficient Core Base Frequency
2.7 GHz
Number of Processor Cores
10
ARK Processor Identification
241070
Processor Generation
Intel Core Ultra (Series 2)
Maximum Number of DMI Lanes
8
Packaging Type
Box
Efficient Cores
4
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Maximum Turbo Power
121 W
Processor Boost Frequency
4.9 GHz
Performance Cores
6
AI Software Frameworks Supported by the CPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Base Processor Performance
65 W
Processor Family
Intel Core Ultra 5
Performance Core Base Frequency
3.3 GHz
Neural Processing Unit (NPU)
Neural Processing Unit (NPU)
Intel AI Boost
AI Software Frameworks Supported by the NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Sparsity Support
Yes
Windows Studio Effects Support
Yes
NPU Performance up to
13 Tera Operations per Second
GPU Performance up to
4 Tera Operations per Second
Total Processor Performance up to
23 Tera Operations per Second
Memory
Maximum Internal Memory Supported by Processor
192 GB
Memory Clock Speeds Supported by Processor
6400 MHz
Memory Types Supported by Processor
DDR5 SDRAM
Memory Channels
Dual Channel
Graphics
On-Board Graphics Adapter DirectX Version
12.0
On-board graphics adapter refresh rate at maximum resolution (eDP - integrated flat panel display)
60 Hz
On-board graphics adapter refresh rate at maximum resolution (DisplayPort)
60 Hz
On-board graphics adapter refresh rate at maximum resolution (HDMI)
60 Hz
On-board graphics adapter supported outputs
HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1
On-board graphics adapter device ID
0x7D67
Discrete graphics adapter
No
Number of supported displays (on-board graphics)
4
Discrete graphics card model
Not available
Integrated graphics adapter
Yes
Xe cores
2
Maximum dynamic frequency of on-board graphics adapter
1800 MHz
On-board graphics adapter base frequency
300 MHz
On-board graphics adapter OpenGL version
4.5
Integrated Graphics Card Model
Intel Graphics
Features
Scalability
1S
Embedded Options Available
Yes
Direct Media Interface (DMI) Revision
4.0
Idle States
Yes
Usage Conditions
PC/Client/Tablet
Market Segment
Desktop
Supported Instruction Sets
AVX 2.0, SSE4.1, SSE4.2
PCI Express Slot Version
4.0, 5.0
Maximum Number of PCI Express Lanes
24
Thermal Monitoring Technologies
Yes
Execute Disable Bit
Yes
Processor Features
Intel® Speed ​​Shift Technology
Yes
Intel® Standard Manageability (ISM)
Yes
Intel® Trusted Execution Technology
Yes
Intel® VT-x with Extended Page Tables (EPT)
Yes
Intel® Secure Key
Yes
Intel® Control-flow Enforcement Technology (CET)
Yes
Intel® Thread Director
Yes
Intel® Thunderbolt 4
Yes
Intel® Virtualization Technology for Direct I/O (VT-d)
Yes
Intel® Virtualization Technology (VT-X)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Quick Sync Video Technology
Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU
Yes
Intel® OS Guard
Yes
Intel® Deep Learning Boost (Intel® DL Boost) on GPU
Yes
Intel® Volume Management Device (VMD)
Yes
Intel® Boot Guard
Yes
Mode-Based Execute Control (MBE)
Yes
Intel Enhanced SpeedStep Technology
Yes
Intel® Turbo Boost Technology
2.0
Intel® 64
Yes
Operating Conditions
Maximum Operating Temperature
105 °C
Technical Details
OpenCL Version
3.0
Launch Date
Q1 2025
Status
Launched
Packaging Details
Packaging Type
Retail Box
Other Features
L2 Buffer
22528 KB
Graphics Output
DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Maximum RAM
192 GB
