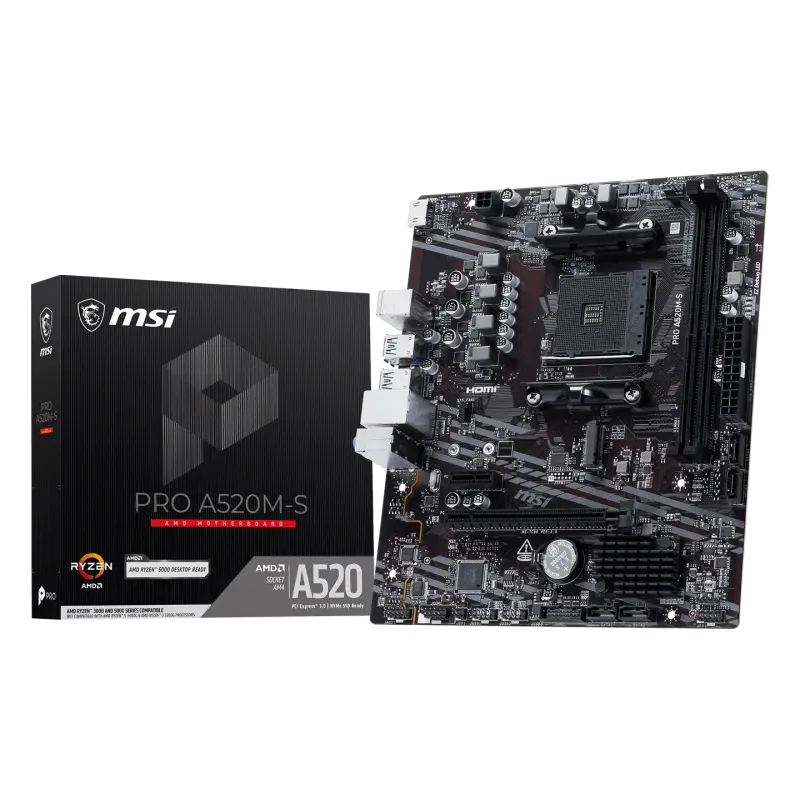

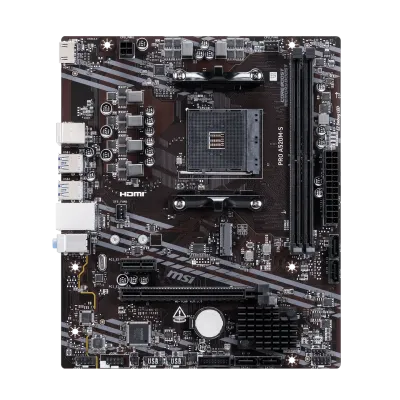

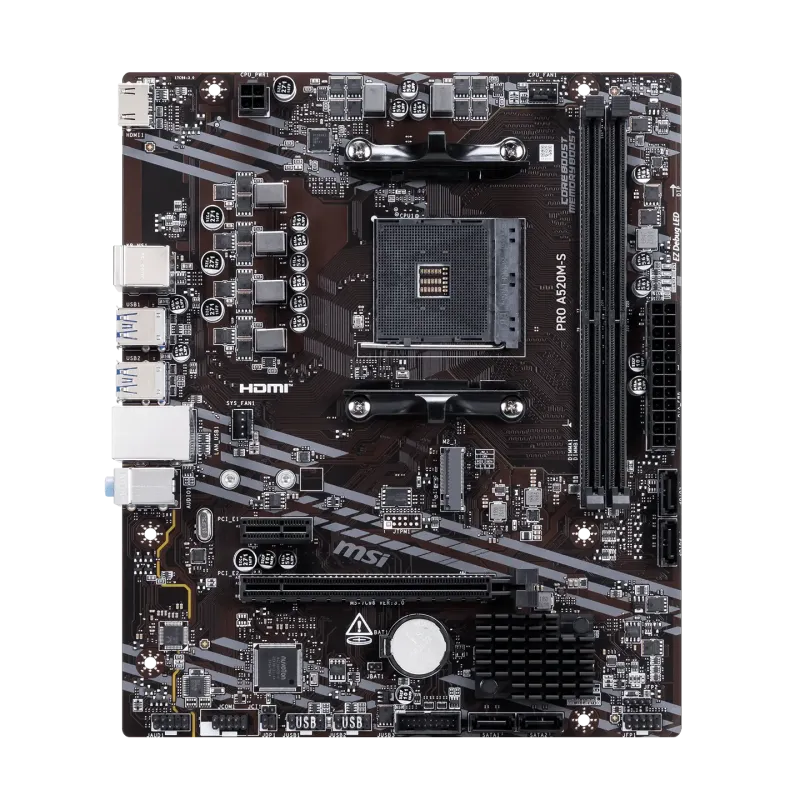

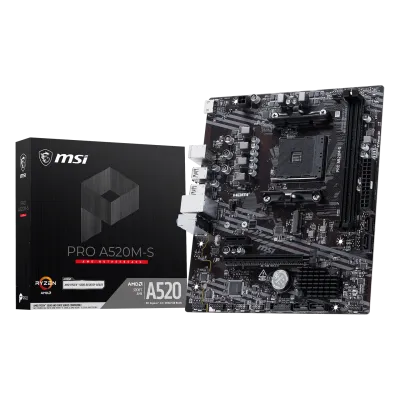

MSI A520M-S (A520,AM4,mATX,DDR4)

Chipset AMD A520

CPU Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors

Socket AM4

Memory 2x DDR4, Maximum Memory Capacity 64GB

Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE

Ryzen™ 5000 Series Processors max. overclocking:

• 1DPC 1R Max speed up to 4600+ MT/s

• 1DPC 2R Max speed up to 3866+ MT/s

Supports JEDEC Speed

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Memory Overclocking by A-XMP OC mode

• The DIMM slots on this motherboard have double-sided latches.

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics 1x HDMI™

Support HDMITM 1.4, maximum resolution of 4K 30Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot 1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU)

*The supported specification depends on installed processor.

Audio Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Storage 1x M.2

M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices

4x SATA 6G

RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

USB 2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

LAN Realtek® RTL8111H 1Gbps LAN

Internal IO 1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

LED FEATURE 4x EZ Debug LED

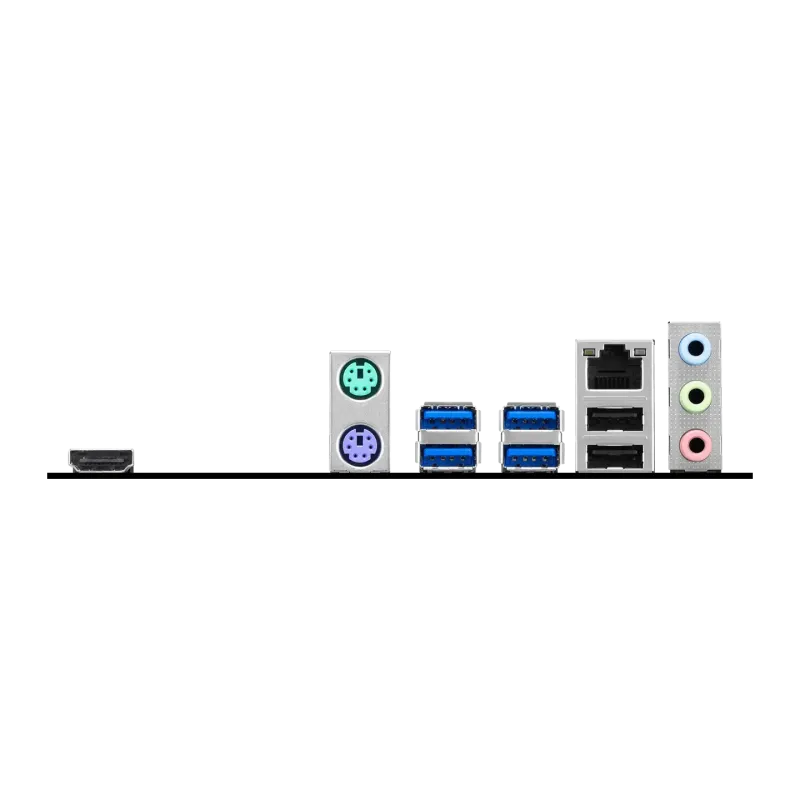

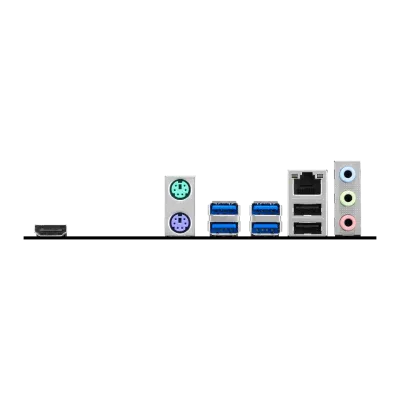

BACK PANEL PORTS

HDMI™

Keyboard / Mouse

USB 5Gbps Type-A

LAN Port

Audio connectors

USB 2.0
