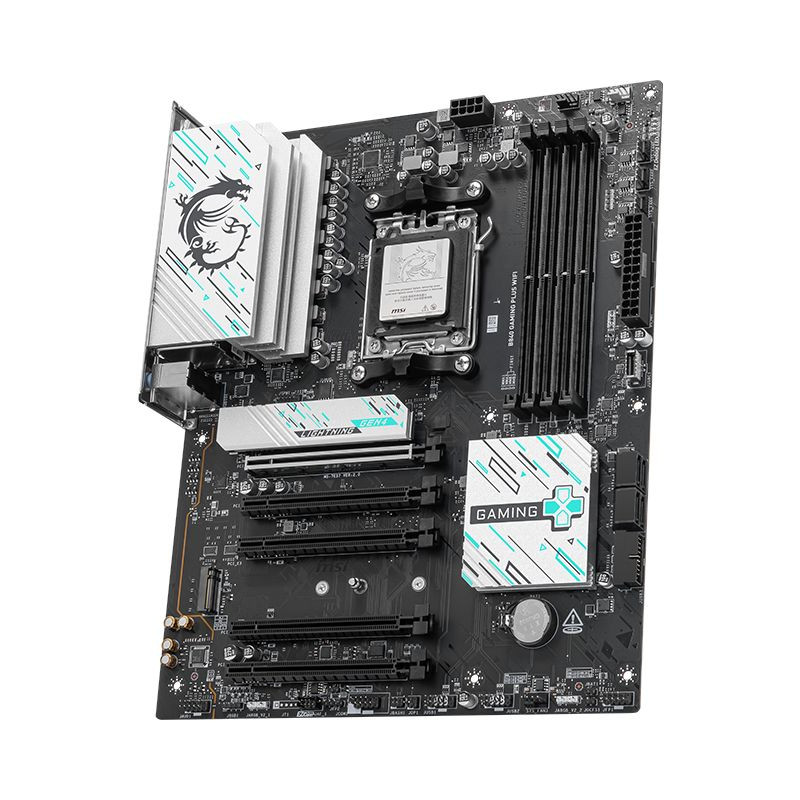

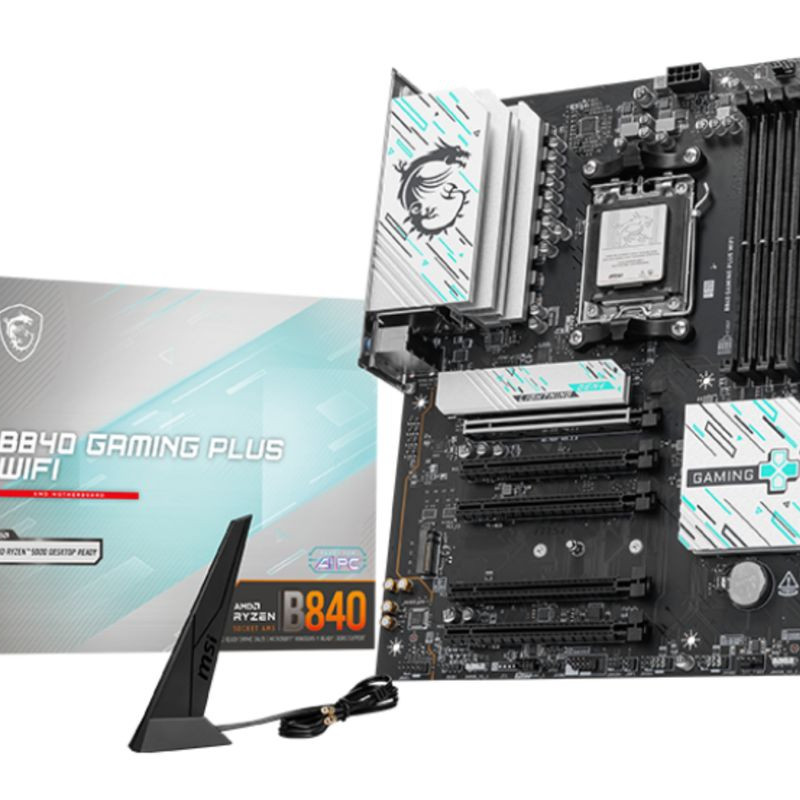

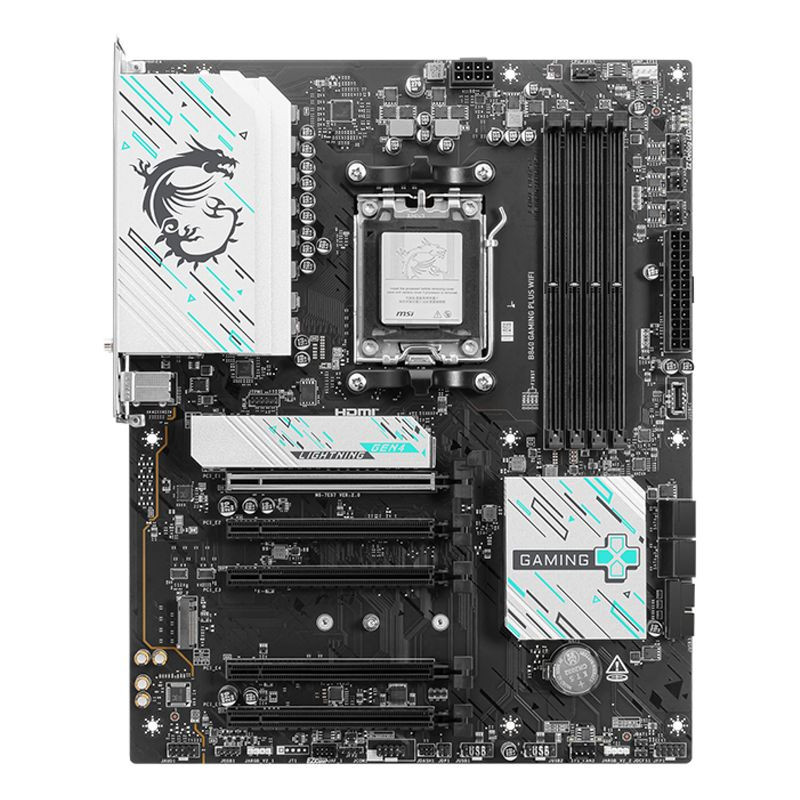

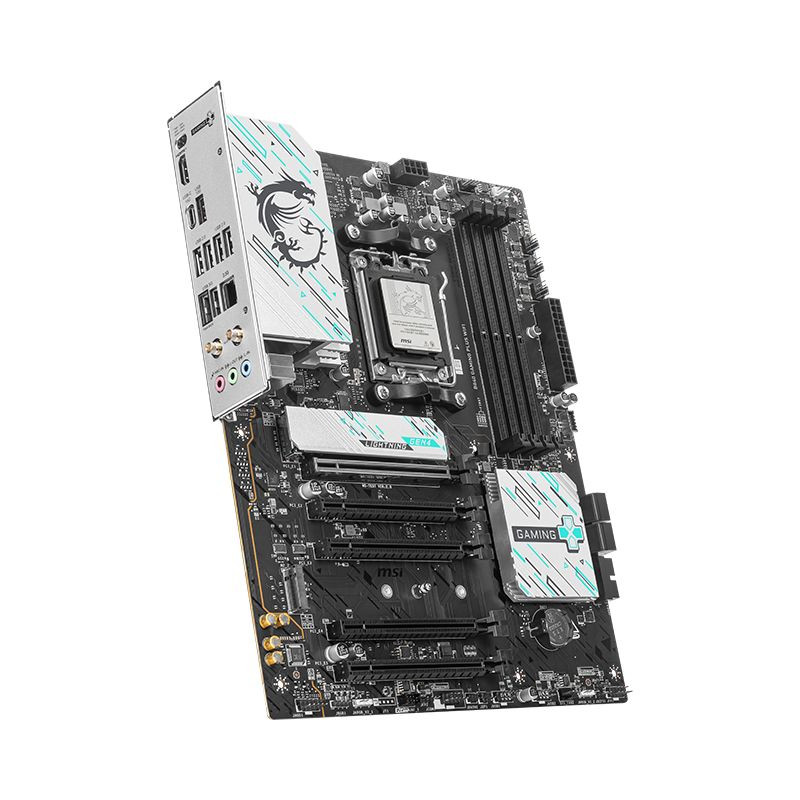

MSI B840 Gaming Plus Wifi (B840,AM5,ATX,DDR5)

Processor
Compatible Processors
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Sockets
Socket AM5
Maximum Internal Memory Supported by Processor
256 GB
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Memory
ECC Compatibility
Non-ECC
Memory Type
DIMM
Memory Channels
Dual Channel
Supported Memory Speeds
4800, 5600, 8000 MHz
Maximum Memory Clock Speed
8000 MHz
Supported Memory Types
DDR5 SDRAM
Maximum RAM Capacity
256 GB
Number of Memory Slots
4
Storage Controllers
Maximum Supported Number of HDDs
4
Supported Storage Drives
HDD & SSD
Number of Supported Storage Drives
6
RAID Levels
0, 1, 10
Supported Storage Drive Interfaces
M.2, Micro SATA III
RAID Support
Yes
Graphics
Built-in Graphics Adapter
No
Internal I/O Ports
Number of Water Pump Ports
1
Number of RGB LED Headers
3
USB 3.2 Gen 2 (3.1 Gen 2) Ports
1
SATA Ports
0
Number of CPU Fan Headers
1
USB 3.2 Gen 1 (3.1 Gen 1) Ports
2
SATA III Ports
4
Number of USB 2.0 Ports
4
SATA II Ports
0
RGB LED Header
Yes
Total Number of SATA Ports
4
Number of Chassis Fan Connectors
5

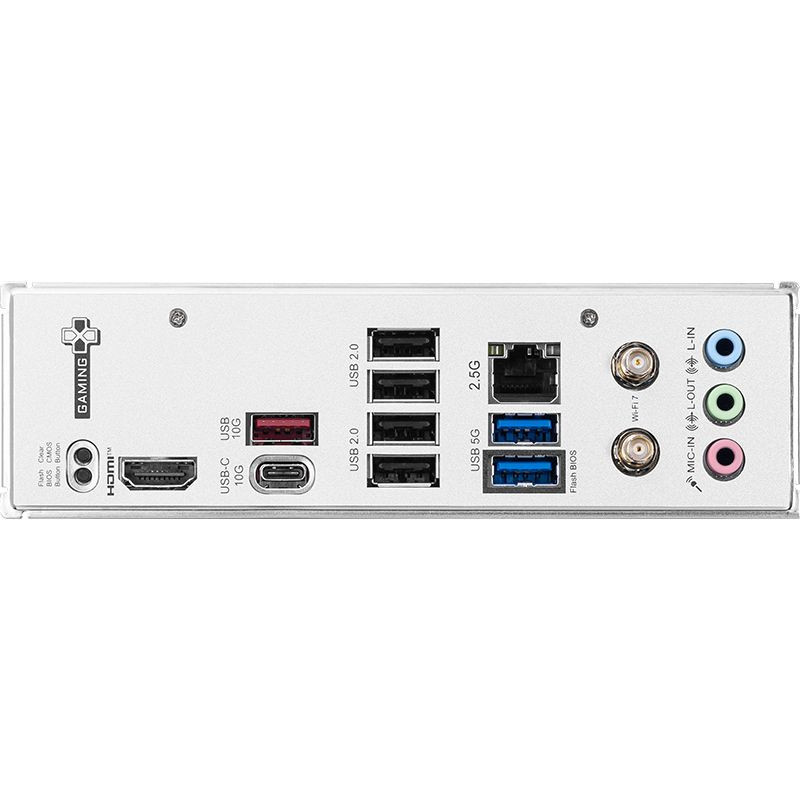

Rear I/O Ports
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C Ports
0
HDMI Version
2.1
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C Ports A
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports
1
VGA (D-Sub) ports
0
DVI-D ports
0
HDMI ports
1
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports
4
Network
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet Interface Type
2.5 Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Ethernet/LAN
Yes
Bluetooth Version
5.4
Bluetooth
Yes
WLAN
Yes
Features
Product Color
Black
Motherboard Chipset Family
AMD
Audio Channels
7.1 Channels
Component for
PC
Motherboard Chipset
AMD B840
PC Health Monitoring
CPU, Fan, Temperature, Voltage
Motherboard Form Factor
ATX
Supports Windows Operating Systems
Windows 11 x64
Audio Chip
Realtek ALC897
Expansion Slots
PCI Express x16 Slots (Gen 4.x)
1
1. M.2 Highest PCI Express Generation
4.0
1. M.2 Largest Key Size
2280
2. M.2 Largest Key Size
22110
Number of M.2 (M) Slots
2
2. M.2 Highest PCI Express Generation
4.0
PCI Express x16 (Gen 3.x) ports
4
BIOS
BIOS Type
UEFI AMI
ACPI Version
6.5
Weight and Dimensions
Width
243.8 mm
Depth
304.8 mm
Other Features
Number of mSATA ports
0
