MSI MAG A750GL PCIE5 750Watt

Energy
Efficiency
90%
Combined Current (+5Vsb)
12.5 W
Combined Current (+12V)
744 W
AC Input Frequency
47 - 63 Hz
Power Factor Correction (PFC) Filter
Active
Combined Current (-12V)
3.6 W
Combined Current (+3.3V)
110 W
Maximum Input Current (at 220V)
4 A
AC Input Voltage
100 - 240 V
Maximum Output Current (-12V)
0.3 A
Maximum Input Current (at 110V)
8 A
Maximum Output Current (+12V)
62 A
Total Power
750 W
Maximum Output Current (+5V)
20 A
Combined Current (+5V)
110 W
Energy Protection Features
Overcurrent, Overload, Overvoltage, Overheating, Short Circuit
Maximum Output Current (+3.3V)
20 A
Max. Output Current (+5Vsb)
2.5 A

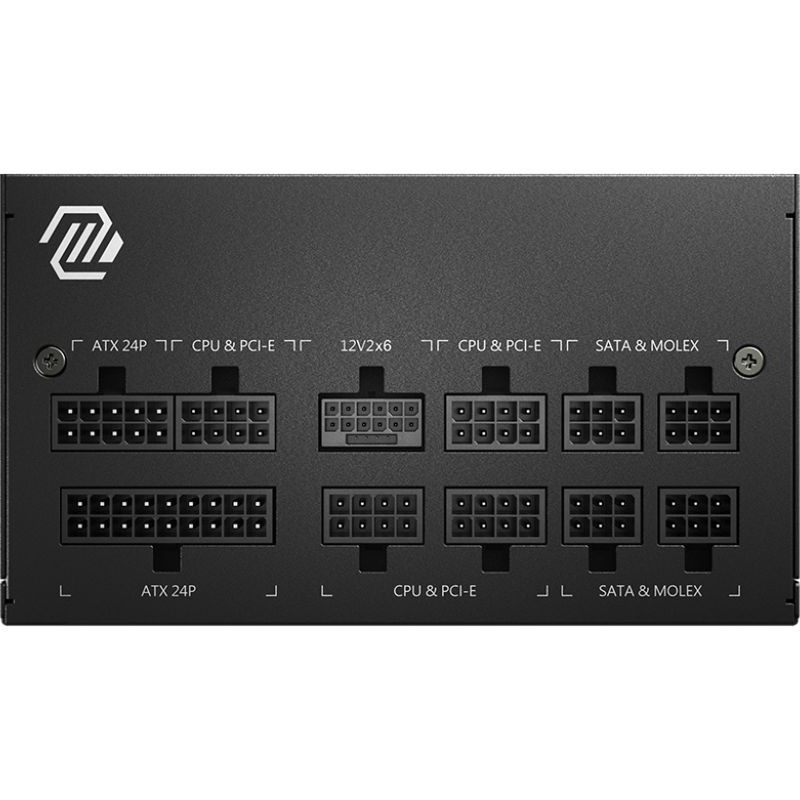

Connectors and Interfaces
Number of PCI Express Power Connectors (6+2 pin)
3
Number of Molex Connectors (4 pin)
4
CPU Connector (4+4 pin)
Yes
EPS Power Connector (8 pin)
No
ATX Power Connector (24 pin)
No
ATX Power Connector (20+4 pin)
No
Motherboard Power Cable Length
45 cm
Cable Type
Fully Modular
Motherboard Connector
20+4 pin ATX
EPS Power Connector (4+4 pin)
Yes
Number of SATA Power Connectors
8
PCI Express Power Connectors (12 pin)
0
PCI Express Power Connectors (12+4 pin)
0
Number of PCI Express Power Connectors (6 pin)
0
Number of PCI Express Power Connectors (8 pin)
0
PCI Express Connector
Yes
Performance
Purpose
PC
80 Plus Certification
80 PLUS Gold
Power Supply Unit (PSU) Form Factor
ATX
ATX Version
3.1
Design
Lighting
No
Product Color
Black
On/Off Switch
Yes
Fan Diameter
12 cm
Cooling
Active
Number of Fans
1 Fan
Weight and Dimensions
Width
150 mm
Height
86 mm
Depth
140 mm
Packaging Information
Packaging Type
Box
Logistics Information
Commodity Tariff Number (HS)
84733020
