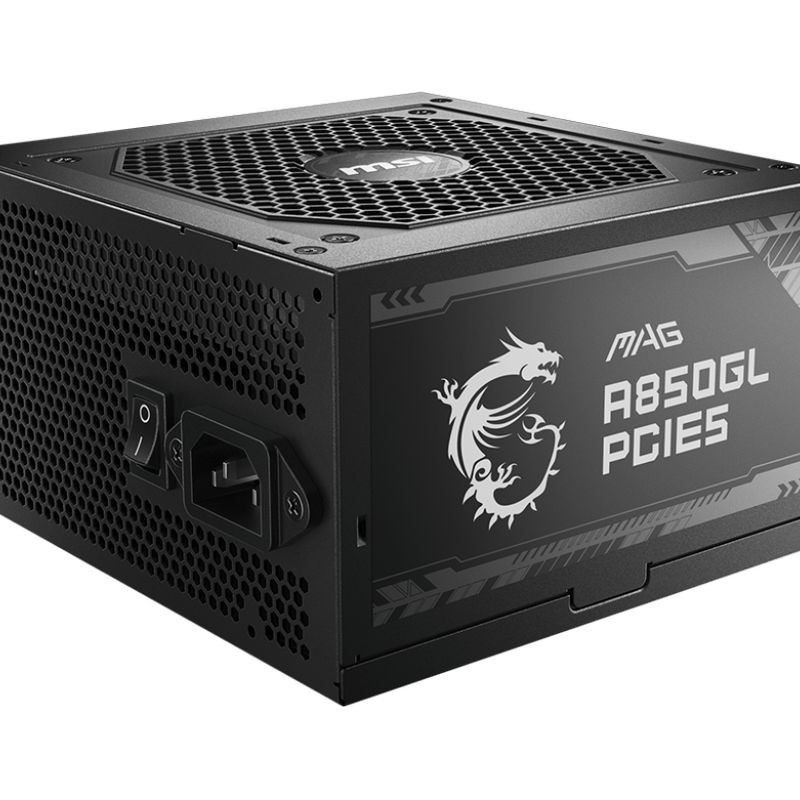

MSI MAG A850GL PCIE5 850Watt

Energy
AC Input Frequency
47 - 63 Hz
Max. Output Current (+3.3V)
20 A
Efficiency
90%
Combined Current (+12V)
846 W
Max. Output Current (+5Vsb)
2.5 A
Max. Output Current (+12V)
70.5 A
Combined Current (+5Vsb)
12.5 W
Combined Current (+3.3V)
110 W
Maximum Input Current (at 220V)
4 A
Combined Current (-12V)
3.6 W
AC Input Voltage
100 - 240 V
Combined Current (+5V)
110 W
Max. Output Current (+5V)
20 A
Power Factor Correction (PFC) Filter
Active
Total Power
850 W
Energy Protection Features
Overcurrent, Overload, Overvoltage, Overheating, Short Circuit
Maximum Input Current (at 110V)
8 A
Max. Output Current (-12V)
0.3 A

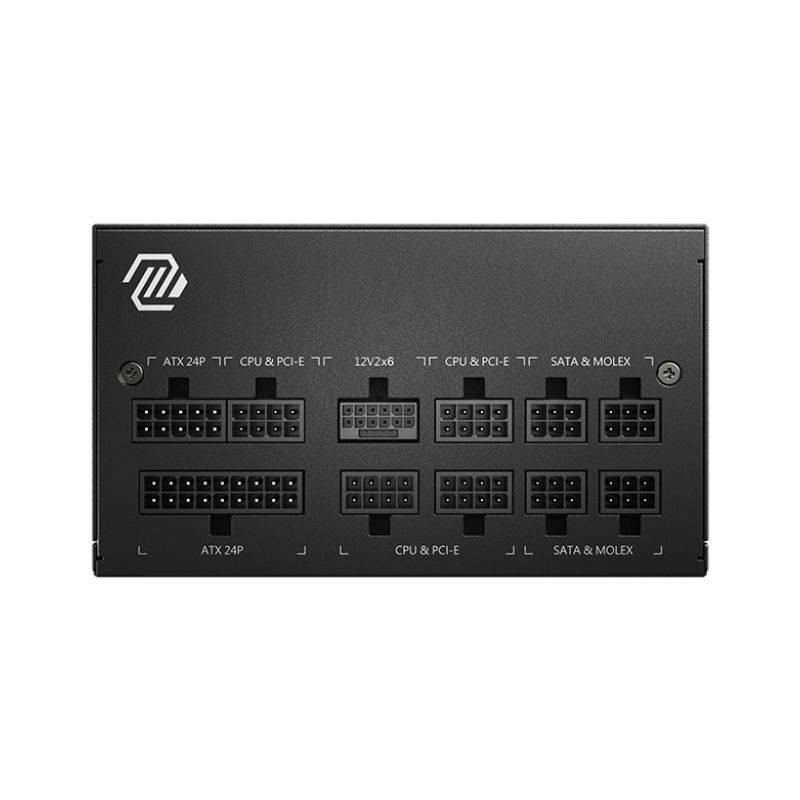

Connections and Interfaces
Motherboard Power Cable Length
60 cm
Number of PCI Express 6-pin Power Connectors
0
Motherboard Connectors
20+4 pin ATX
CPU Connector (4+4 pin)
Yes
Number of Molex 4-pin Connectors
4
Number of SATA Power Connectors
8
EPS Power Connector (8-pin)
No
Cable Type
Fully Modular
Number of PCI Express 6+2-pin Power Connectors
4
EPS Power Connector (4+4 pin)
Yes
Number of PCI Express 8-pin Power Connectors
0
ATX Power Connector (20+4 pin)
No
PCI Express Power Connectors (12-pin)
0
PCI Express Power Connectors (12+4 pin)
0
ATX Power Connector (24-pin)
No
PCI Express Connector
Yes
Power Supply Unit (PSU) Form Factor
ATX
80 Plus Certification
80 PLUS Gold
Purpose
PC
ATX Version
3.1
Design
Product Color
Black

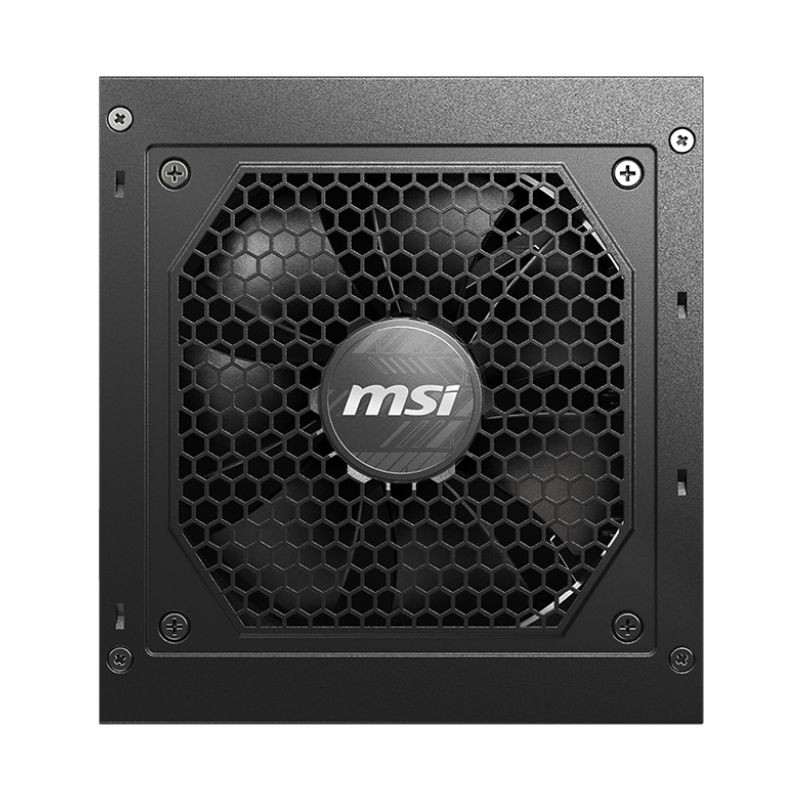

Cooling
Active
Number of Fans
1 Fan
On/Off Switch
Yes
Fan Diameter
12 cm
Lighting
No
Weight and Dimensions
Width
150 mm
Height
86 mm
Depth
140 mm
Packaging Information
Packaging Type
Box
Logistics Information
Commodity Tariff Number (HS)
84733020
