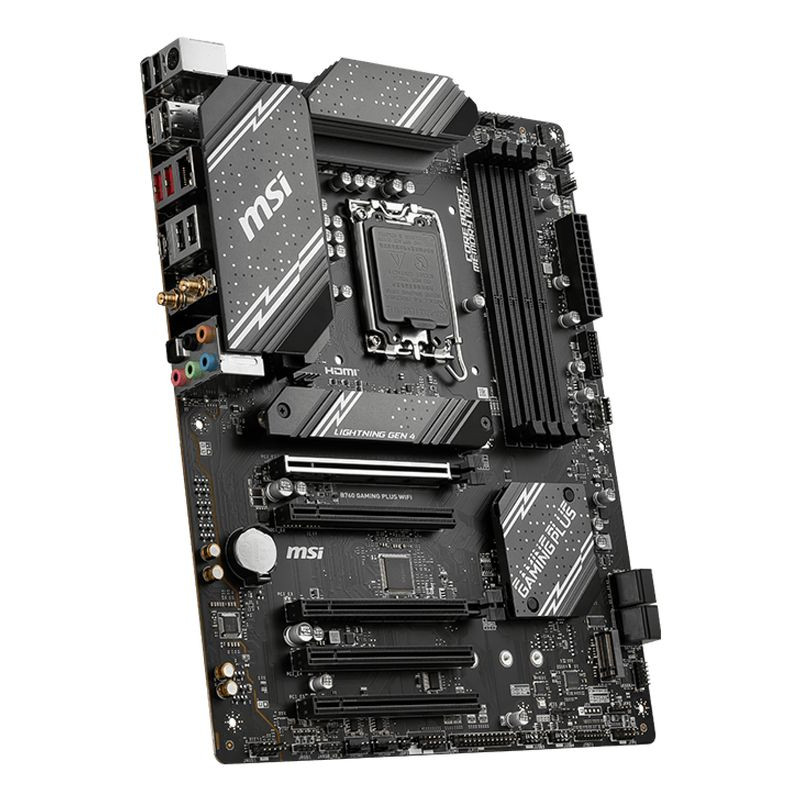

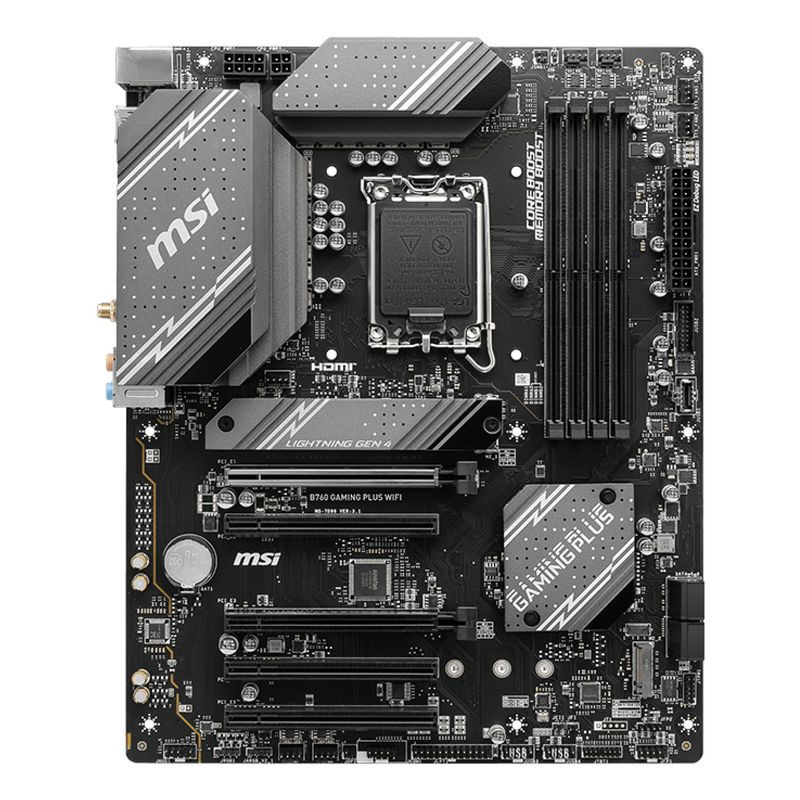

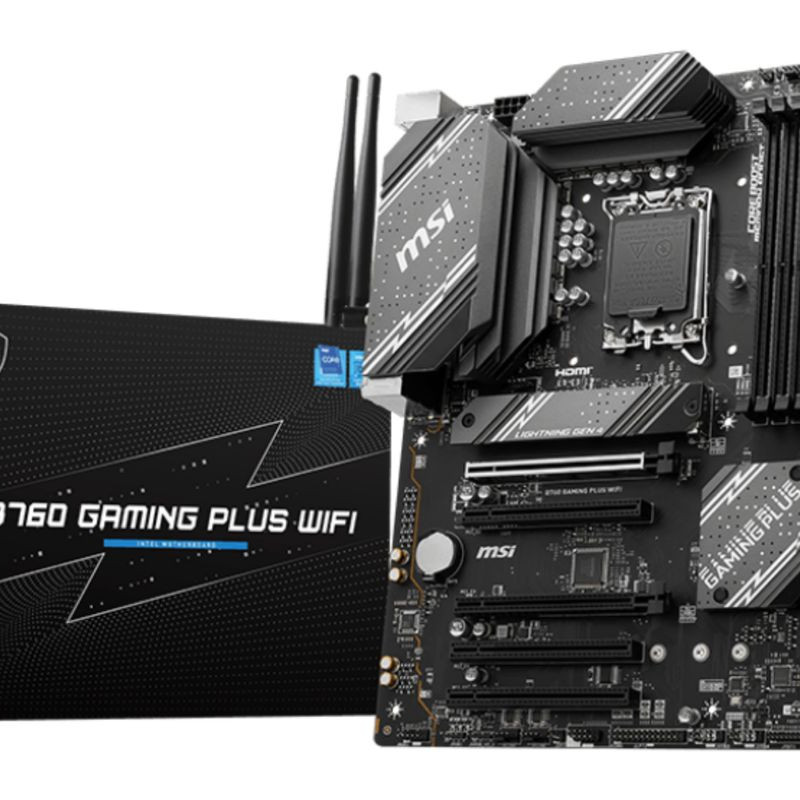

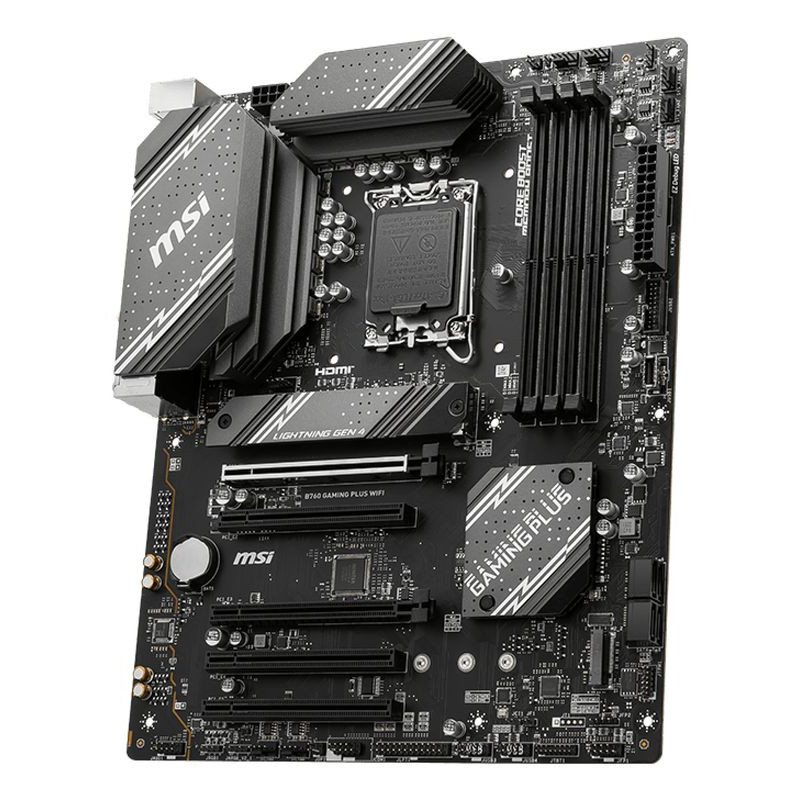

MSI MAG B760 Gaming Plus Wifi (B760,S1700,ATX,DDR5)

Processor
Processor Socket
LGA 1700
Compatible Processors
Intel® Celeron®, Intel® Pentium® Gold
Processor Manufacturer
Intel
Memory
Maximum RAM
192 GB
Memory Channels
Dual Channel
ECC Compatibility
Non-ECC
Supported Memory Types
DDR5 SDRAM
Number of Memory Slots
4
Memory Type
DIMM
Memory Controller
RAID Level
0, 1, 5, 10
Supported Storage Interfaces
M.2, SATA
RAID Support
Yes
Graphics
Built-in Graphics Adapter
No
Internal I/O Ports
USB 3.2 Gen 1 (3.1 Gen 1) Ports
3
SATA III Ports
4
Number of USB 2.0 Ports
4
SATA Ports
0
SATA II Ports
0
TPM Port
Yes
S/PDIF Out Connector
Yes

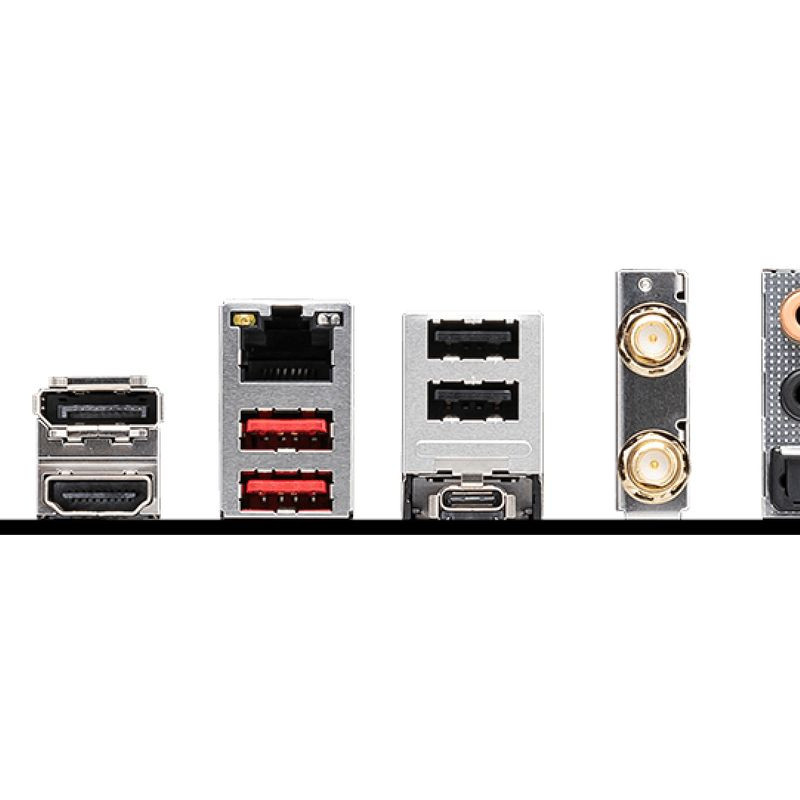

I/O Ports on the Rear Panel
HDMI Version
2.1
Number of Ethernet LAN Ports (RJ-45)
1
Number of DisplayPort Ports
1
DisplayPort Version
1.4
Number of USB 2.0 Ports
4
Number of HDMI Ports
1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C Ports
1
S/PDIF Output
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-A Ports
2
Network
Wi-Fi
Yes
LAN Controller
Dragon RTL8125BG
Bluetooth Version
5.3
Bluetooth
Yes
Top WLAN Standard
Wi-Fi 6E (802.11ax)
Ethernet Interface Type
2.5 Gigabit Ethernet
Ethernet/LAN
Yes
Features
Product Color
Black
Audio Channels
7.1 Channels
Supported Windows Operating Systems
Windows 10 x64, Windows 11 x64
Audio Chip
Realtek ALC897
Motherboard Chipset
Intel B760
Motherboard Form Factor
ATX
Motherboard Chipset Family
Intel
Component for
PC
Expansion Slots
PCI Express x1 (Gen 3.x) Ports
3
PCI Express x1 Slots
3
PCI Express x16 Slots (Gen 4.x)
2
PCI Express x16 Slots
2
Number of M.2 (M) Slots
2
Weight and Dimensions
Width
243.8 mm
Depth
304.8 mm
Other Features
Number of mSATA Ports
0
