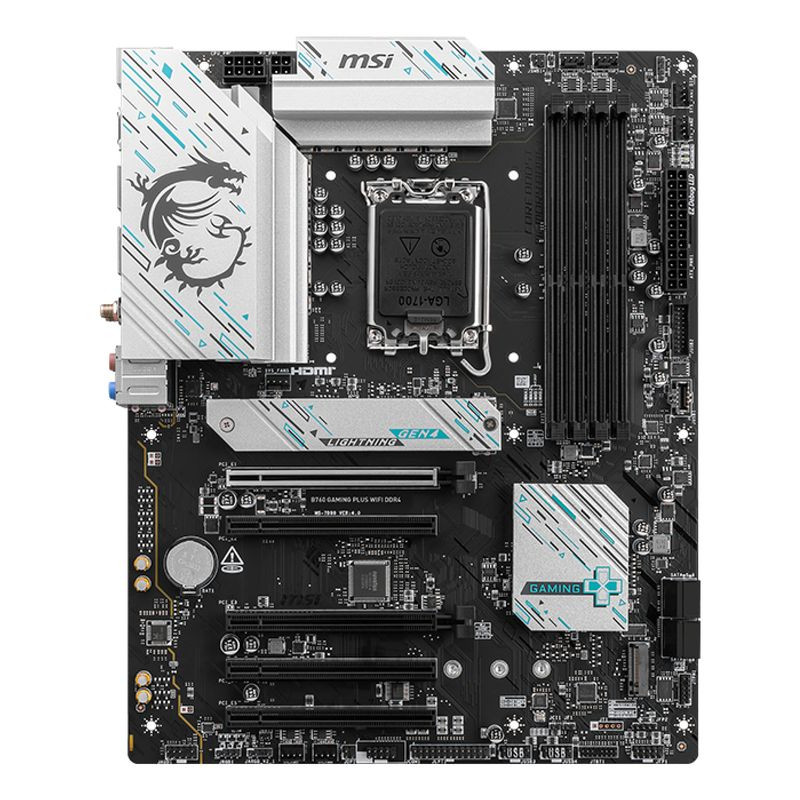

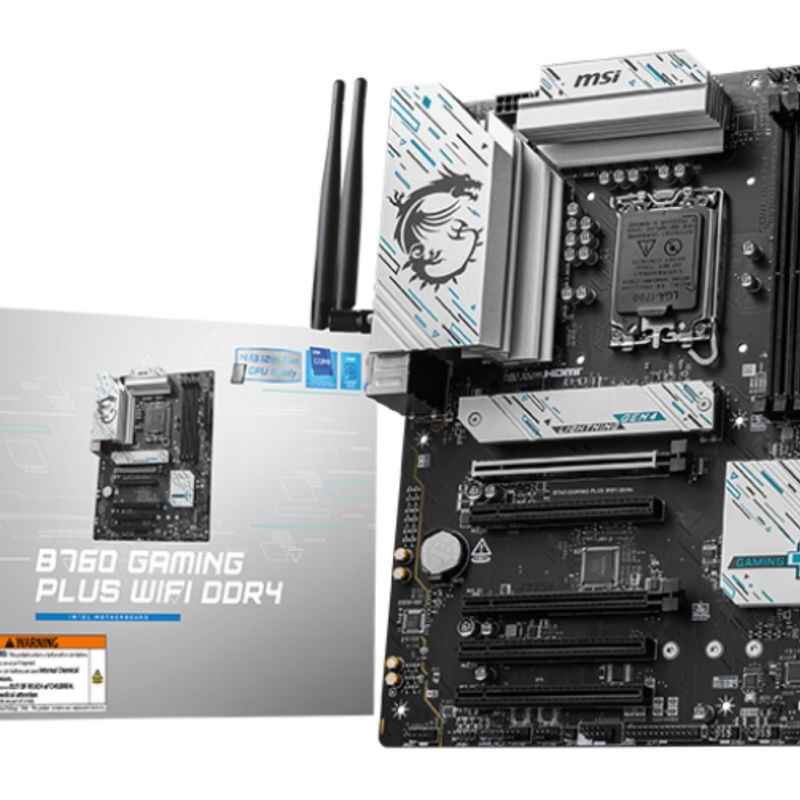

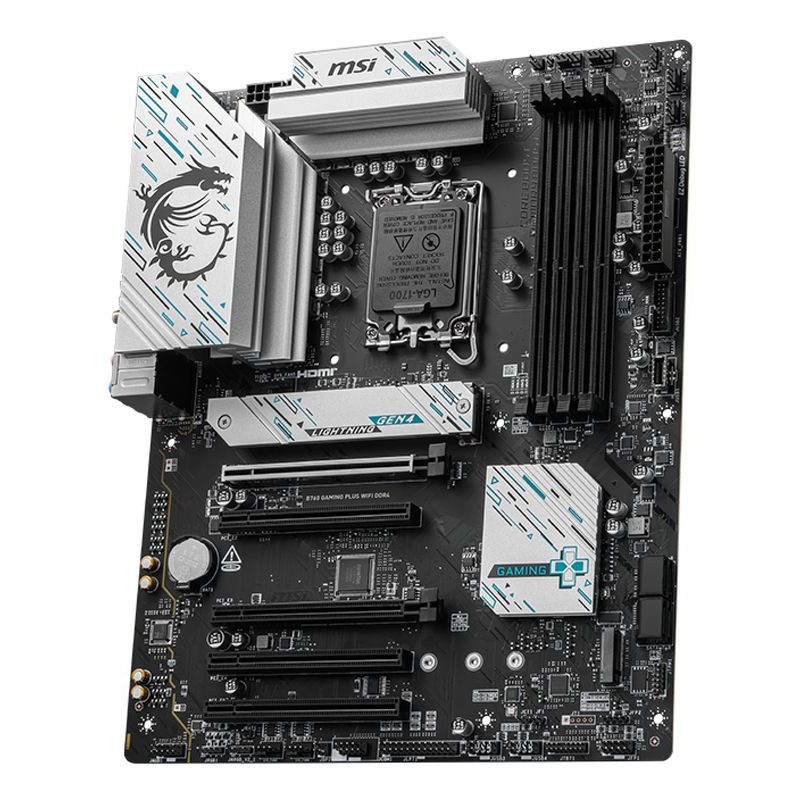

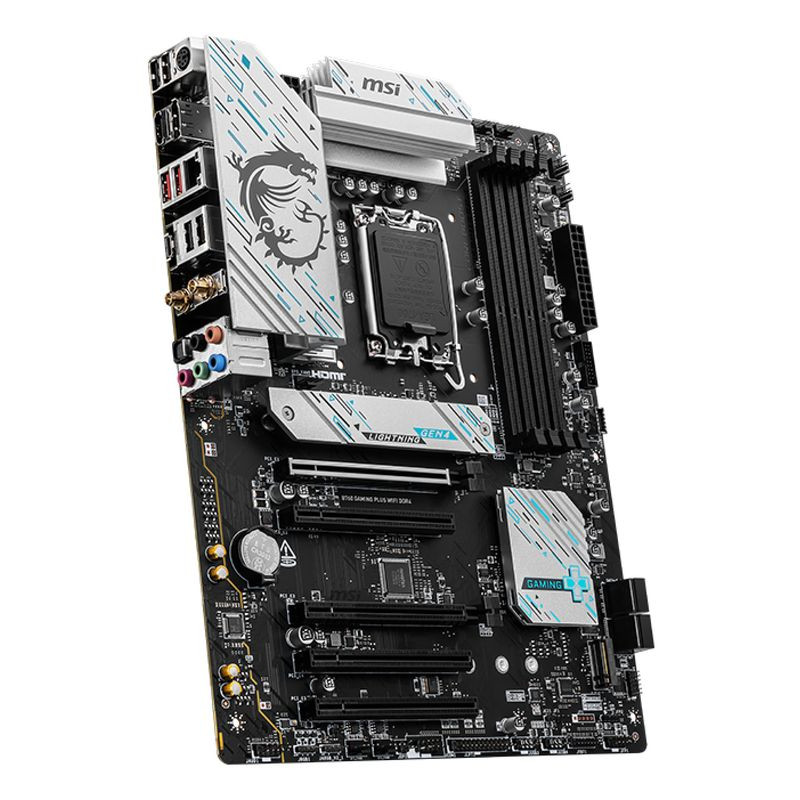

MSI MAG B760 Gaming Plus Wifi DDR4 (B760,S1700,ATX,DDR4)

Processor
Compatible Processors
Intel® Celeron®, Intel® Pentium® Gold
Processor Socket
LGA 1700
Supported Processor Slots
LGA 1700
Maximum Internal Memory Supported by Processor
128 GB
Processor Manufacturer
Intel
Memory
Maximum RAM
128 GB
ECC Compatibility
Non-ECC
Number of Memory Slots
4
Memory Type
DIMM
Memory Channels
Dual Channel
Supported Memory Types
DDR4 SDRAM
Supported Memory Speed
2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800, 5000, 5066, 5200, 5333 MHz
Memory Controller
Supported Storage Drive Interfaces
M.2, SATA
Number of Supported Storage Drives
6
RAID Level
0, 1, 5, 10
Maximum Supported Number of HDDs
4
RAID Support
Yes
Internal I/O Ports
USB 3.2 Gen 1 (3.1 Gen 1) Ports
3
USB 3.2 Gen 2 (3.1 Gen 2) Ports
0
RGB LED Header
Yes
Total Number of SATA ports
4
SATA III ports
4
Number of USB 2.0 ports
4
S/PDIF output
Yes
TPM port
Yes

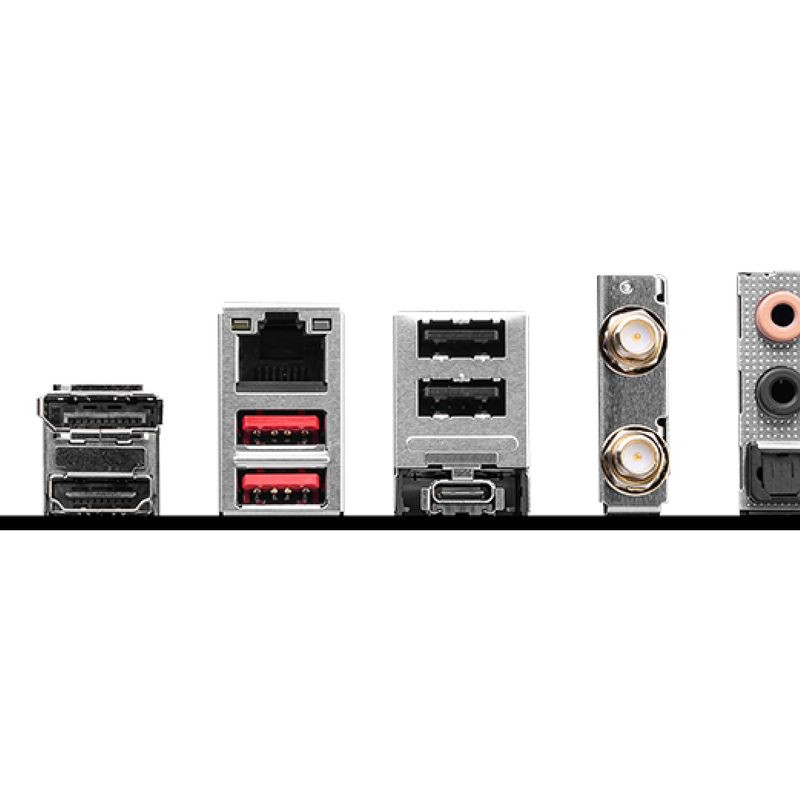

Rear I/O ports
Number of VGA (D-Sub) ports
0
Number of DisplayPort ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports
1
DisplayPort version
1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports
2
Number of USB 2.0 ports
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports
0
Number of Ethernet LAN ports (RJ-45)
1
Number of HDMI ports
1
S/PDIF output
Yes
HDMI version
2.1
Number DVI-D ports
0
Network
LAN controller
Dragon RTL8125BG
Bluetooth version
5.3
Ethernet interface type
2.5 Gigabit Ethernet
Top WLAN standard
Wi-Fi 6 (802.11ax)
Bluetooth
Yes
WLAN
Yes
WLAN standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet/LAN
Yes
Features
Motherboard chipset family
Intel
Audio channels
7.1 channels
Audio chip
Realtek ALC897
Motherboard form factor
ATX
Component for
PC
Motherboard chipset
Intel B760
Supports Windows operating systems
Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 slots
3
Number of M.2 (M) slots
2
PCI Express x16 slots (Gen 4.x)
2
PCI Express x16 slots
2
PCI Express x1 (Gen 3.x) connectors
3
BIOS
BIOS memory size
256 Mbit
ACPI version
6.4
BIOS type
UEFI AMI
Weight and dimensions
Depth
304.8 mm
Width
243.8 mm
