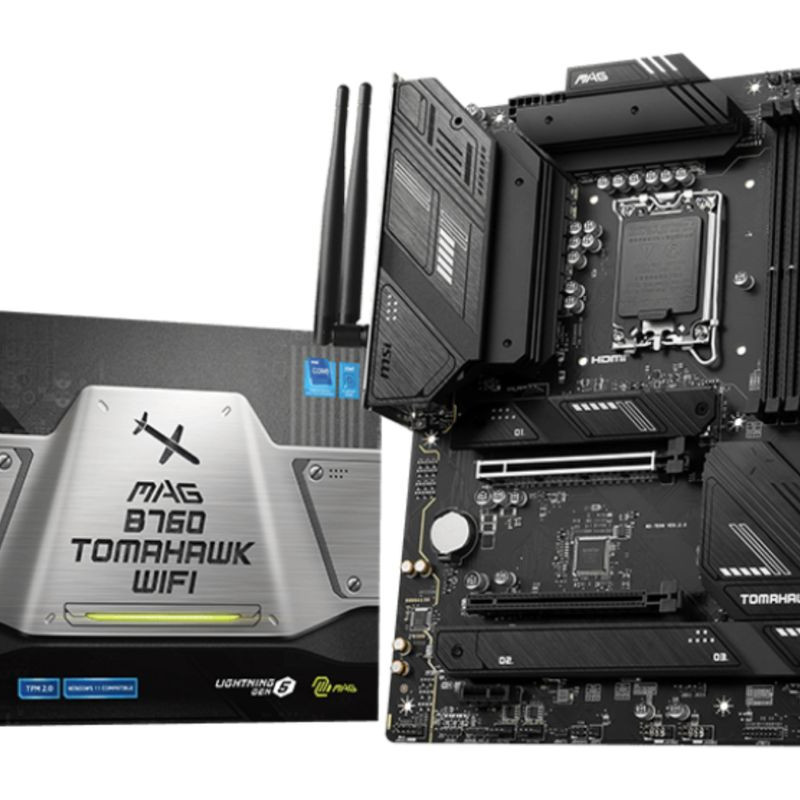

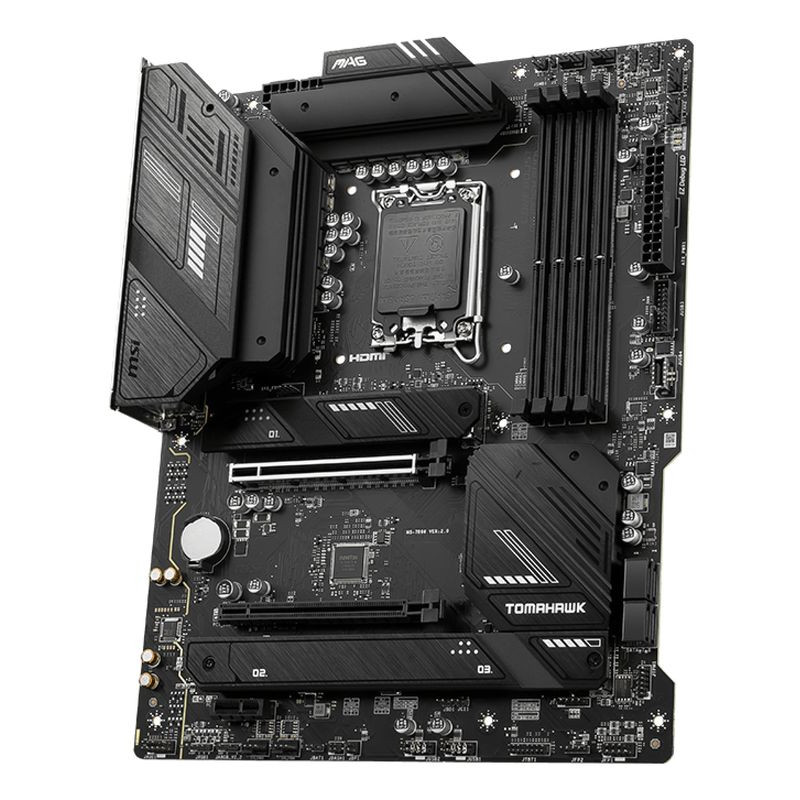

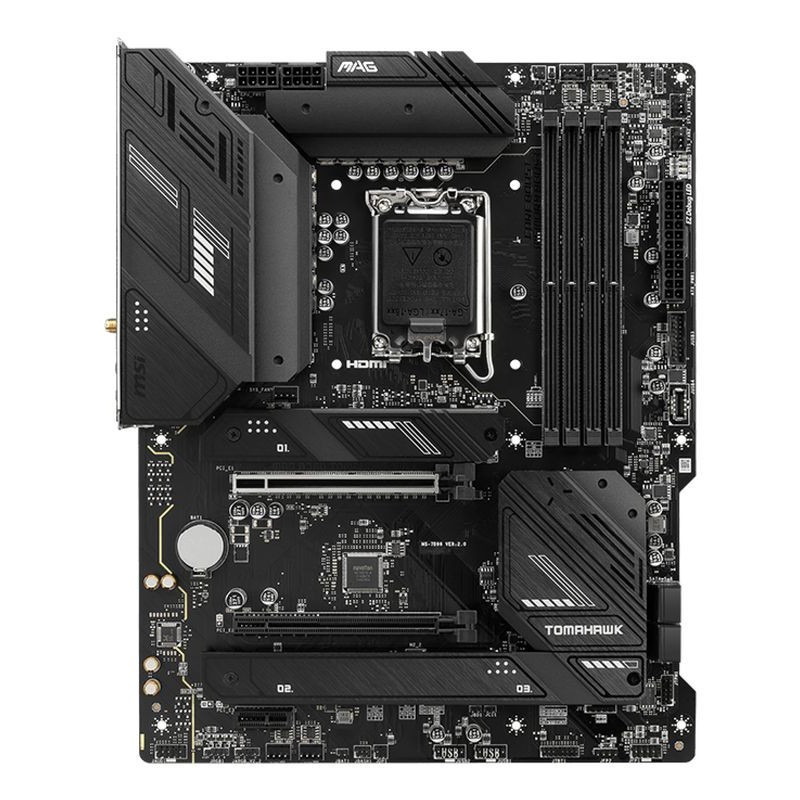

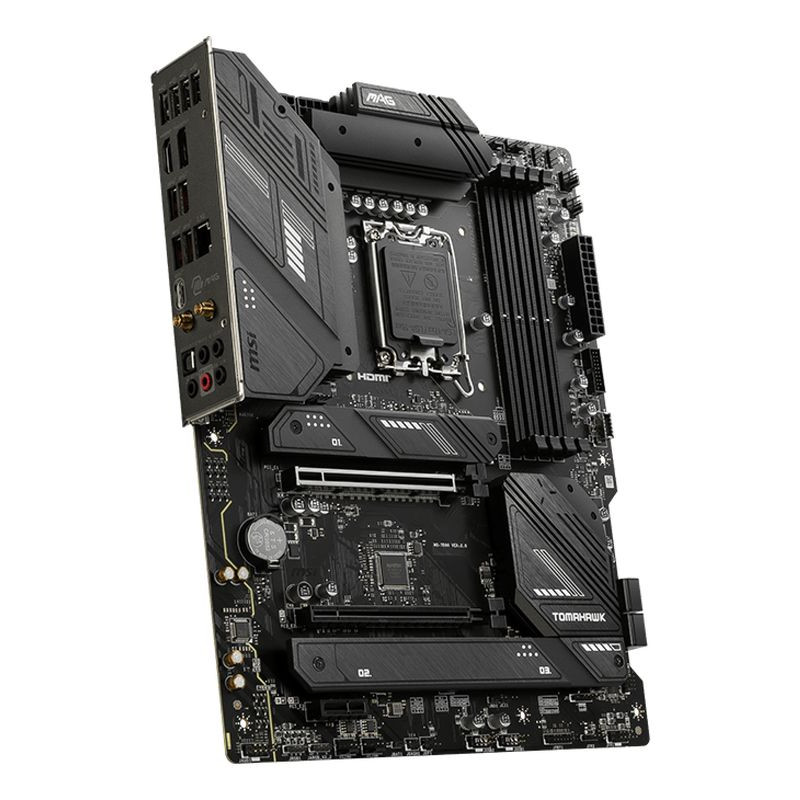

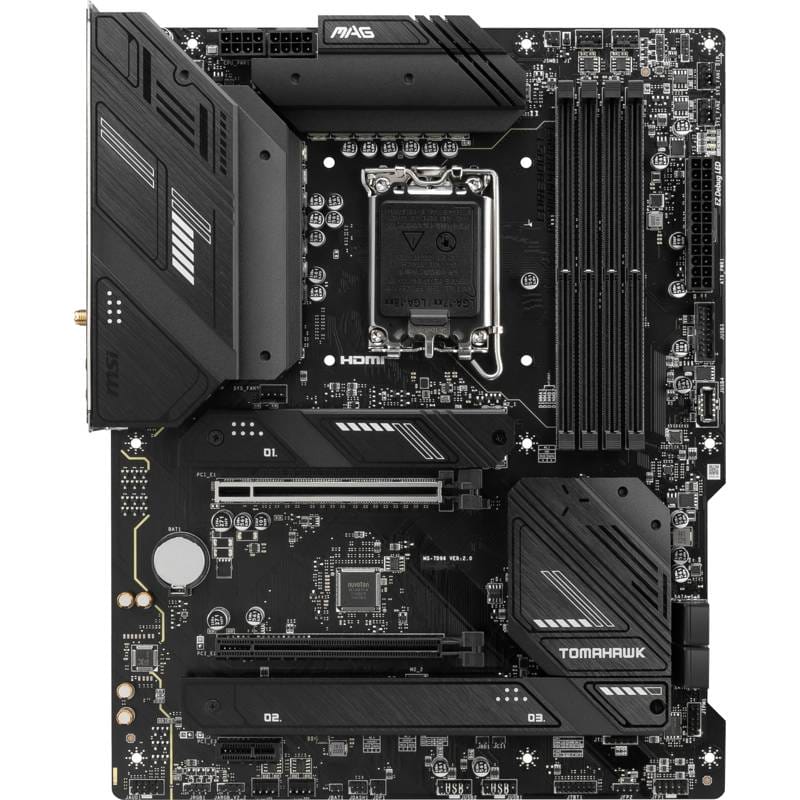

MSI MAG B760 TOMAHAWK WIFI (B760,S1700,mATX,DDR5)

Processor
Processor Manufacturer
Intel
Supported Processor Slots
LGA 1700
Processor Socket
LGA 1700
Maximum Number of SMP Processors
1
Compatible Processors
Intel® Celeron®, Intel® Pentium® Gold
Memory
Supported Memory Speeds
7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
ECC Compatibility
Non-ECC
Memory Type
DIMM
Supported Memory Types
DDR5 SDRAM
Maximum Memory Clock Speed
7000 MHz
Maximum RAM Capacity
128 GB
Number of Memory Slots
4
Memory Channels
Dual Channel
Memory Controller
Supported Storage Drive Interfaces
M.2, SATA III
RAID Support
Yes
RAID Level
0, 1, 5, 10
Graphics
Built-in Graphics Adapter
No
Internal I/O Ports
Front Panel Connector
Yes
S/PDIF Out Connector
Yes
ATX Power Connector (24-pin)
Yes
SATA III Ports
4
USB 3.2 Gen 1 (3.1 Gen 1) Ports
2
SATA Ports
0
CPU Fan Connector
Yes
RGB LED Header
Yes
Number of USB 2.0 Ports
4
USB 3.2 Gen 2 (3.1 Gen 2) Ports
1
SATA II Ports
0
TPM Connector
Yes
Front Panel Audio Connector
Yes

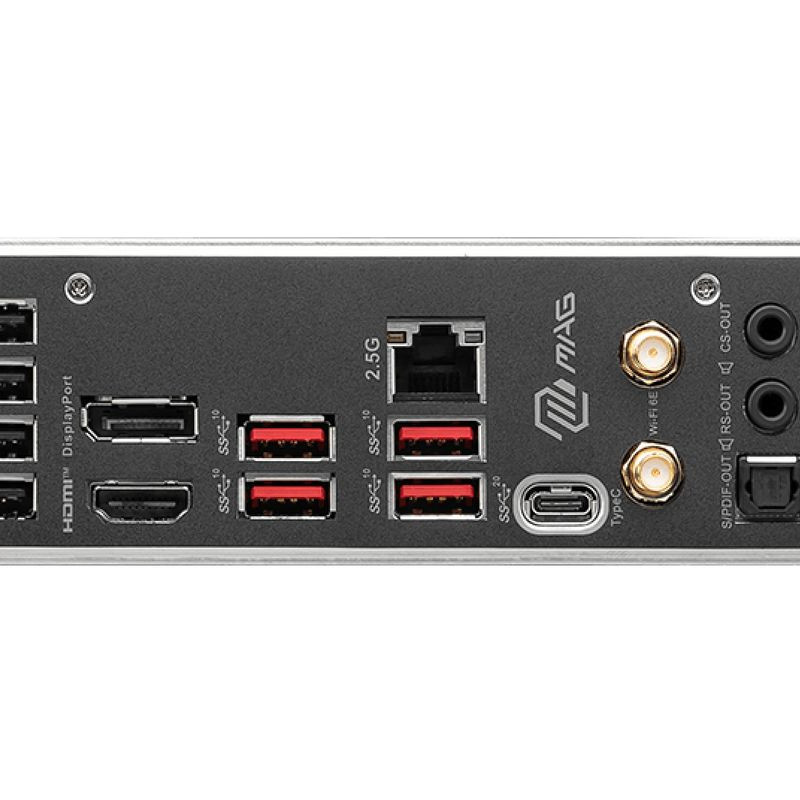

Rear I/O Ports
Number of DVI-D Ports
0
Number of USB 2.0 Ports
4
Number of VGA (D-Sub) Ports Ports
0
DisplayPort version
1.4
HDMI version
2.1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports
0
USB 3.2 Gen 2x2 Type-C ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports
0
DisplayPort ports
1
HDMI ports
1
Ethernet LAN ports (RJ-45)
1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-A ports
4
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-A ports
0
Network
Bluetooth version
5.3
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet/LAN
Yes
Ethernet Interface Type
2.5 Gigabit Ethernet
Bluetooth
Yes
Top WLAN Standard
Wi-Fi 6E (802.11ax)
Features
Motherboard Chipset Family
Intel
Component for
PC
Power Source
ATX
Product Color
Black
Supported Windows Operating Systems
Windows 10, Windows 11
Audio Channels
7.1 Channels
Motherboard Form Factor
ATX
Audio Chip
Realtek ALC897
Expansion Slots
Number of M.2 (M) Slots
3
PCI Express x1 (Gen 3.x) Ports
1
PCI Express x16 Slots
2
BIOS
BIOS Memory Size
256 MB Mbit
ACPI Version
6.4
System Management BIOS (SMBIOS) Version
3.5
BIOS Type
UEFI AMI
Weight and Dimensions
Depth
304.8 mm
Width
243.8 mm
Other Features
Number of mSATA Ports
0
