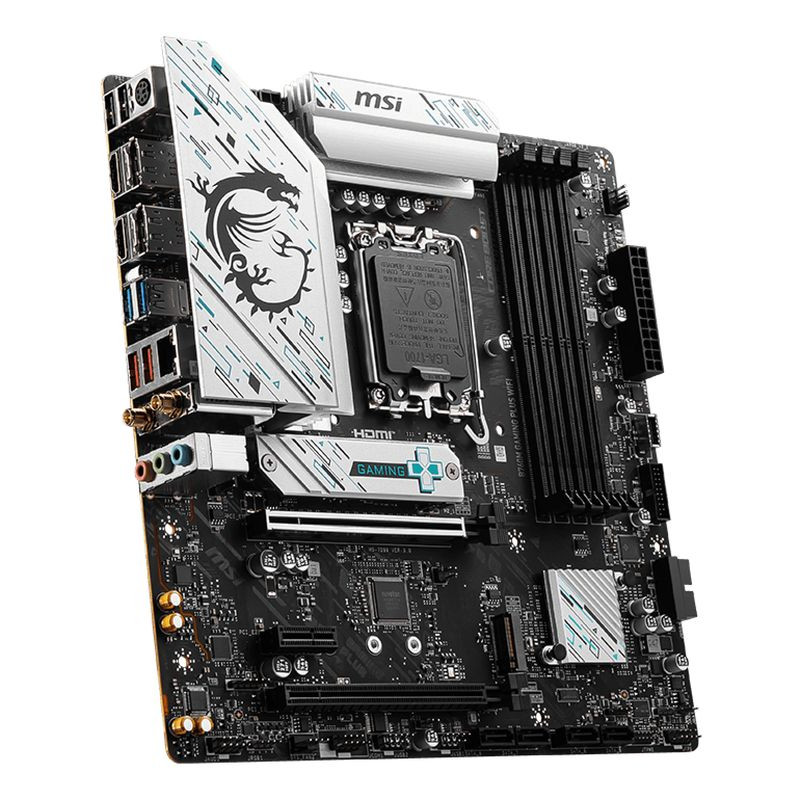

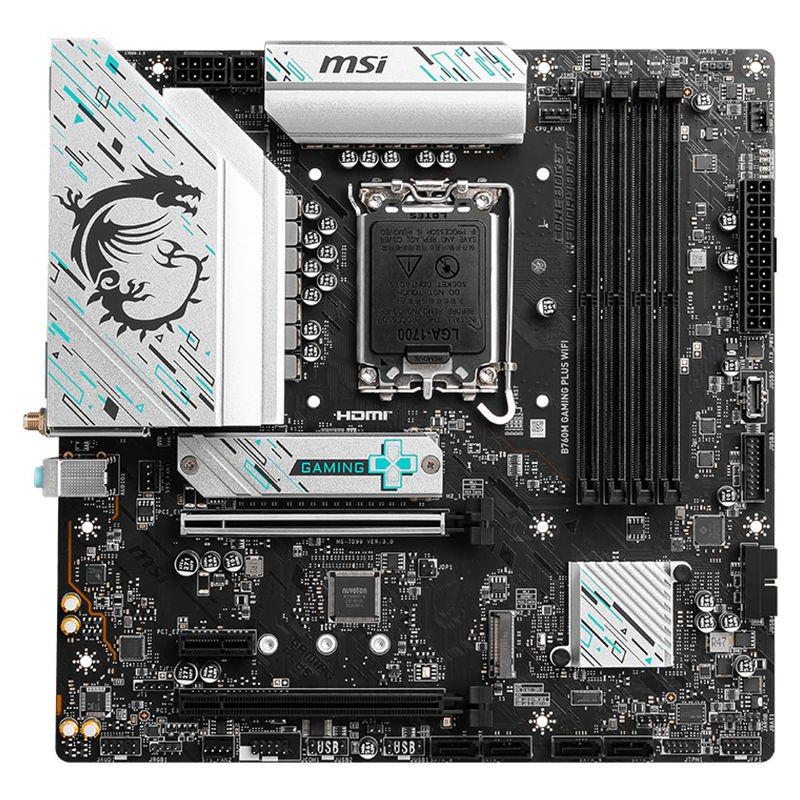

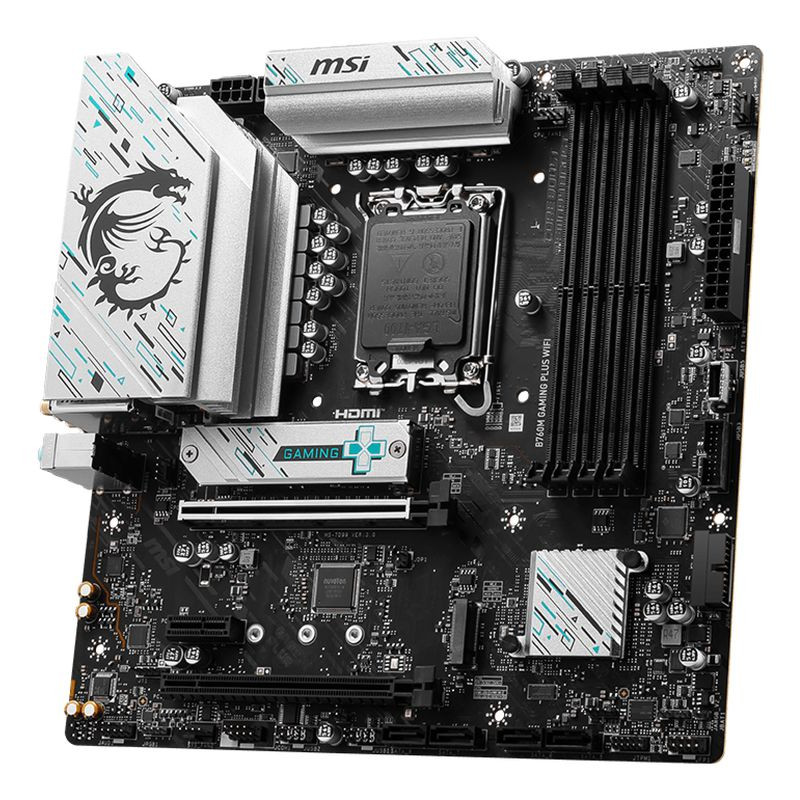

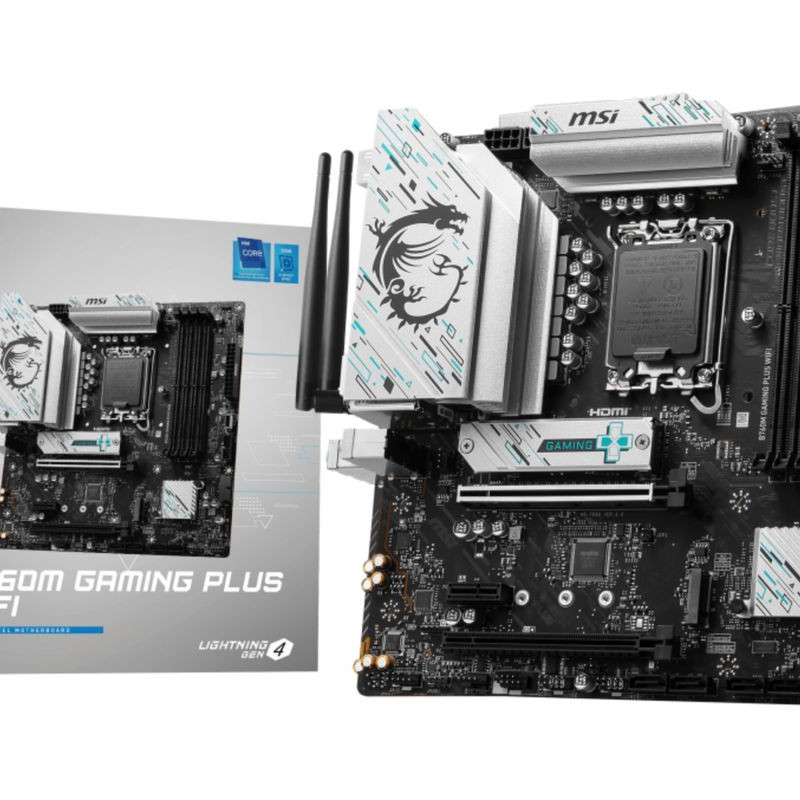

MSI MAG B760M Gaming Plus Wifi (B760,S1700,mATX,DDR5)

Processor
Compatible Processors
Intel® Celeron®, Intel® Pentium® Gold
Supported Processor Slots
LGA 1700
Processor Socket
LGA 1700
Maximum Number of SMP Processors
1
Processor Manufacturer
Intel
Memory
Supported Memory Speeds
6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
ECC Compatibility
Non-ECC
Memory Channels
Dual Channel
Number of Memory Slots
4
Memory Type
DIMM
Maximum RAM Capacity
192 GB
Supported Memory Types
DDR5 SDRAM
Maximum Memory Clock Speed
6800 MHz
Memory Controller
Supported Storage Drive Interfaces
M.2, SATA III
RAID Support
Yes
RAID Level
0, 1, 5, 10
Internal I/O Ports
Number of USB 2.0 Ports
4
Front Panel Connectors
Yes
CPU Fan Connector
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Ports
1
TPM Connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Ports
4
Front Panel Audio Connectors
Yes
SATA III Ports
4
ATX Power Connector (24-pin)
Yes
RGB LED Header
Yes

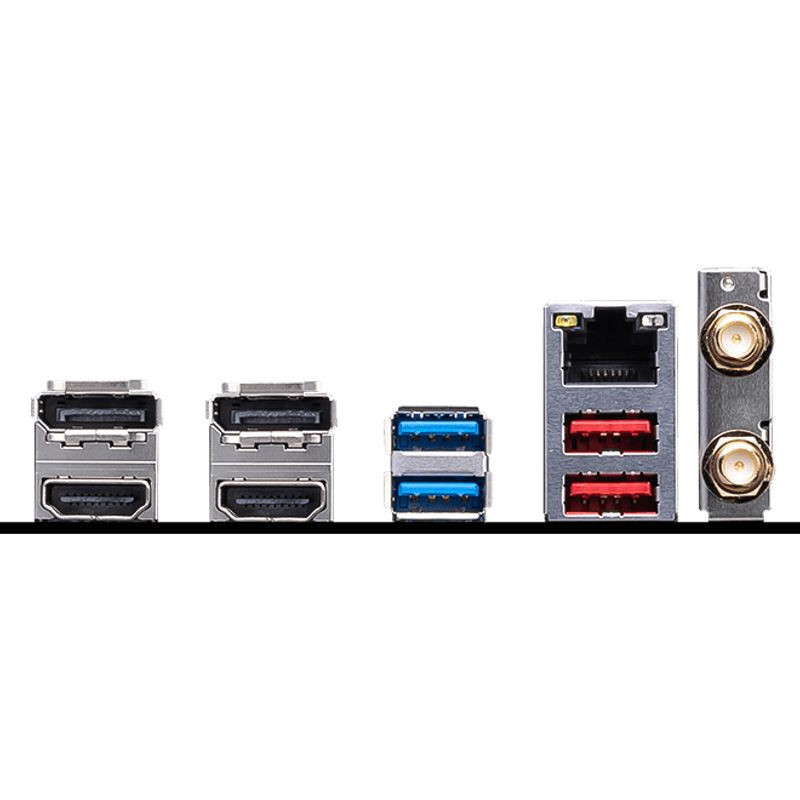

Rear I/O Ports
HDMI Version
2.1
Number of HDMI Ports
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports
2
Number of DisplayPort Ports
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C Ports
0
DisplayPort Version
1.4
Number Ethernet LAN ports (RJ-45)
1
Number of DVI-D ports
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports
0
Number of VGA (D-Sub) ports
0
Number of USB 2.0 ports
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports
2
Network
Bluetooth
Yes
Bluetooth version
5.3
Ethernet/LAN
Yes
Top WLAN standard
Wi-Fi 6E (802.11ax)
WLAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
WLAN standards
802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Features
Motherboard Chipset Family
Intel
Supports Windows Operating Systems
Windows 10, Windows 11
Power Source
ATX
Component for
PC
Audio Channels
7.1 Channels
Audio Chip
Realtek ALC897
Motherboard Chipset
Intel B760
Motherboard Form Factor
micro ATX
Expansion Slots
PCI Express x1 (Gen 3.x) Connectors
2
BIOS
ACPI Version
6.4
BIOS Type
UEFI AMI
System Management BIOS (SMBIOS) Version
3.5
Clear CMOS Jumper
Yes
BIOS Memory Size
256 Mbit
Weight and Dimensions
Width
243.8 mm
Depth
243.8 mm
