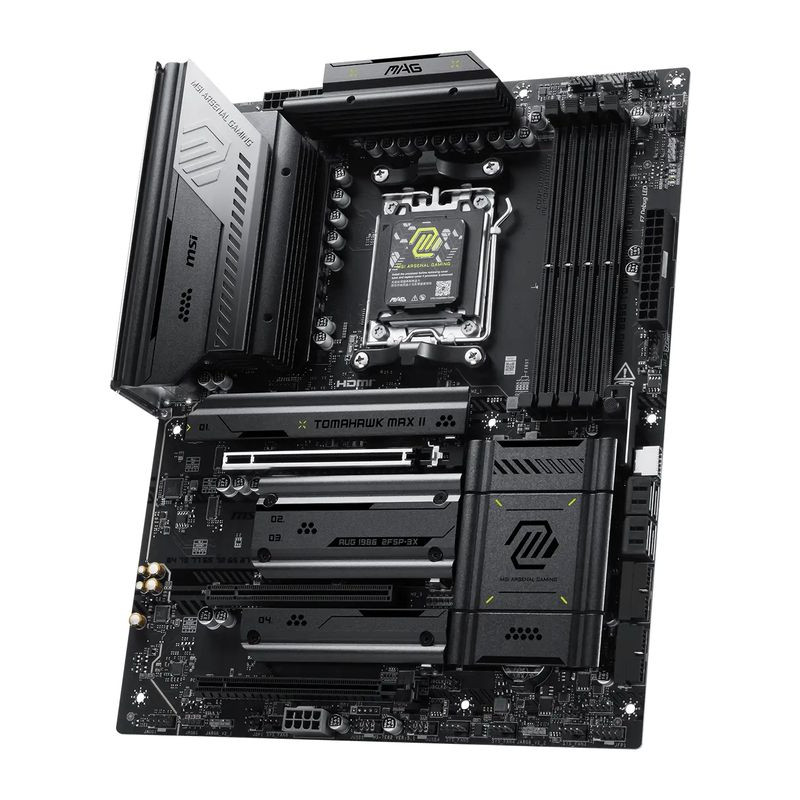

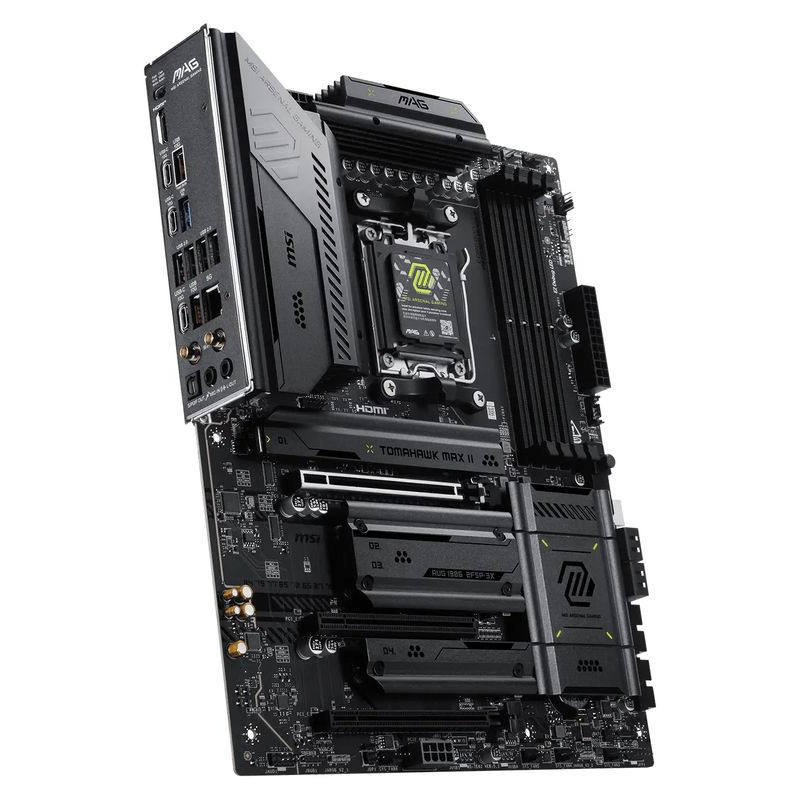

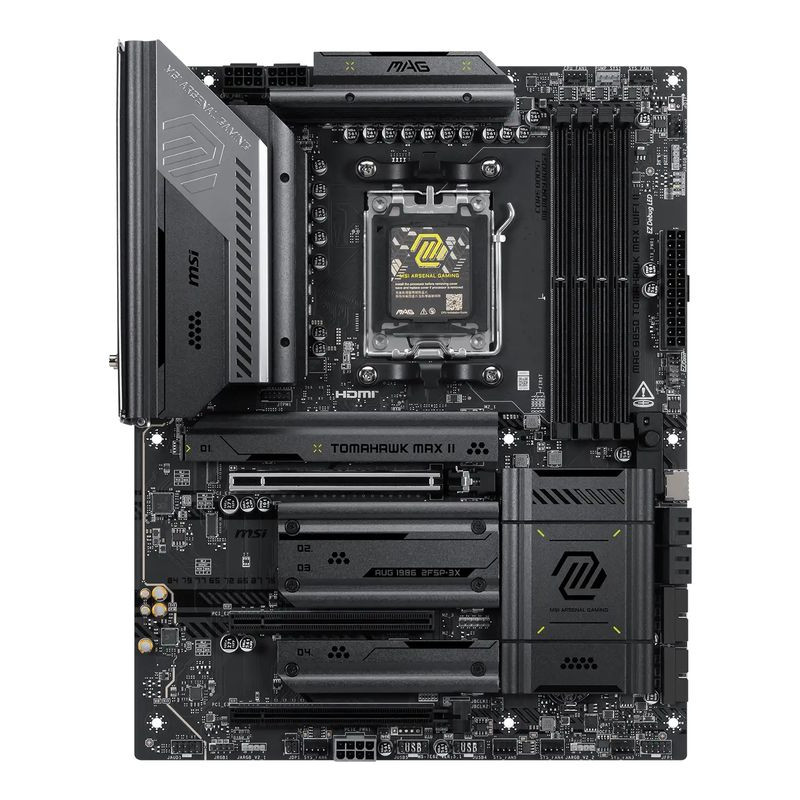

MSI MAG B850 TOMAHAWK MAX Wifi II (B850,AM5,ATX,DDR5)

Processor
Processor Manufacturer
AMD
Supported Processor Sockets
Socket AM5
Processor Socket
Socket AM5
Compatible Processors
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memory
Number of Memory Slots
4
Memory Type
DIMM
Supported Memory Clock Speed ​​(max.)
8400 MHz
Supported Memory Types
DDR5 SDRAM
ECC Compatibility
Non-ECC
Memory Channels
Dual Channel
Supported Memory Speeds
4800, 5600, 8400 MHz
Maximum RAM Capacity
256 GB
Storage Controller
Supported Storage Drive Interfaces
M.2, Micro SATA III
Supported Storage Drives
HDD & SSD
RAID Support
Yes
RAID Level
0, 1, 10
Number of Supported Storage Drives
8
Maximum Supported Number of HDD
4
Graphics
Built-in graphics adapter
No
Internal I/O ports
RGB LED header
Yes
Number of USB 2.0 ports
4
SATA ports
0
Number of RGB LED headers
3
SATA III ports
4
Total number of SATA ports
4
USB 3.2 Gen 2 (3.1 Gen 2) ports
1
Number of CPU fan headers
6
SATA II ports
0
CPU fan headers
Yes
Number of water pump headers
1
USB 3.2 Gen 1 (3.1 Gen 1) ports
4

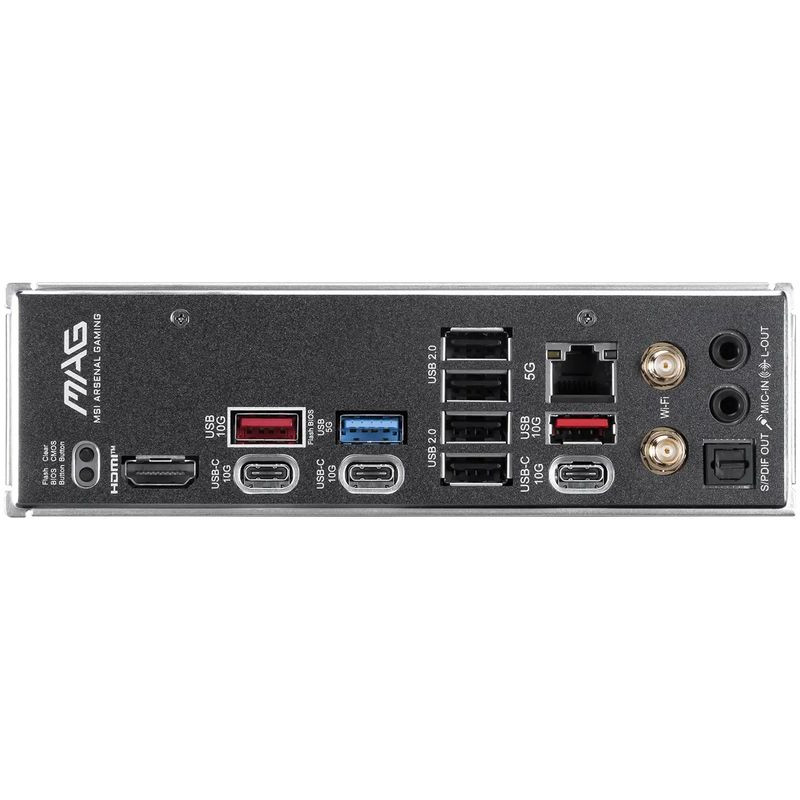

Rear I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports
2
Number of DVI-D ports
0
HDMI version
2.1
Number of VGA (D-Sub) ports
0
Number of HDMI ports
1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports
3
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports
0
Number of Ethernet LAN ports (RJ-45)
1
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-A ports
1
Number of USB 2.0 ports
4
Network
Top WLAN standard
Wi-Fi 7 (802.11be)
Ethernet/LAN
Yes
Ethernet interface type
5 Gigabit Ethernet
WLAN
Yes
Bluetooth version
5.4
Bluetooth
Yes
WLAN standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Features
Motherboard Chipset
AMD B850
Component for
PC
Motherboard Chipset Family
AMD
Motherboard Form Factor
ATX
Audio Chip
Realtek ALC4080
Product Color
Black
Audio Channels
7.1 Channels
Supported Windows Operating Systems
Windows 11 x64
Expansion Slots
PCI Express x16 (Gen 3.x) Connectors
1
2. M.2 Largest Key Size
2280
3. M.2 Highest PCI Express Generation
4.0
4. M.2 Highest PCI Express Generation
4.0
4. M.2 Largest Key Size
2280
1. M.2 Largest Key Size
22110
PCI Express x16 Slots (Gen 4.x)
1
1. M.2 Highest PCI Express Generation
5.0
Number of M.2 (M) slots
4
2. M.2 highest PCI Express generation
5.0
PCI Express x16 slots (Gen 5.x)
1
3. M.2 largest key size
2280
BIOS
BIOS memory size
256 Mbit
ACPI version
6.5
BIOS type
UEFI AMI
System management BIOS (SMBIOS) version
3.7
Weight and dimensions
Depth
304.8 mm
Width
243.8 mm
Other features
Number of mSATA ports
0
