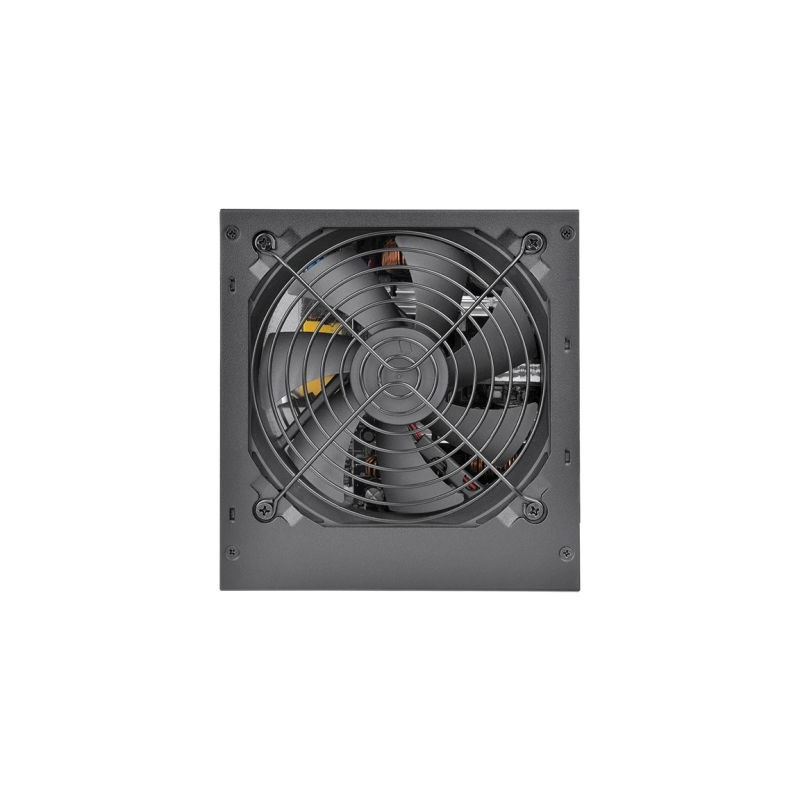

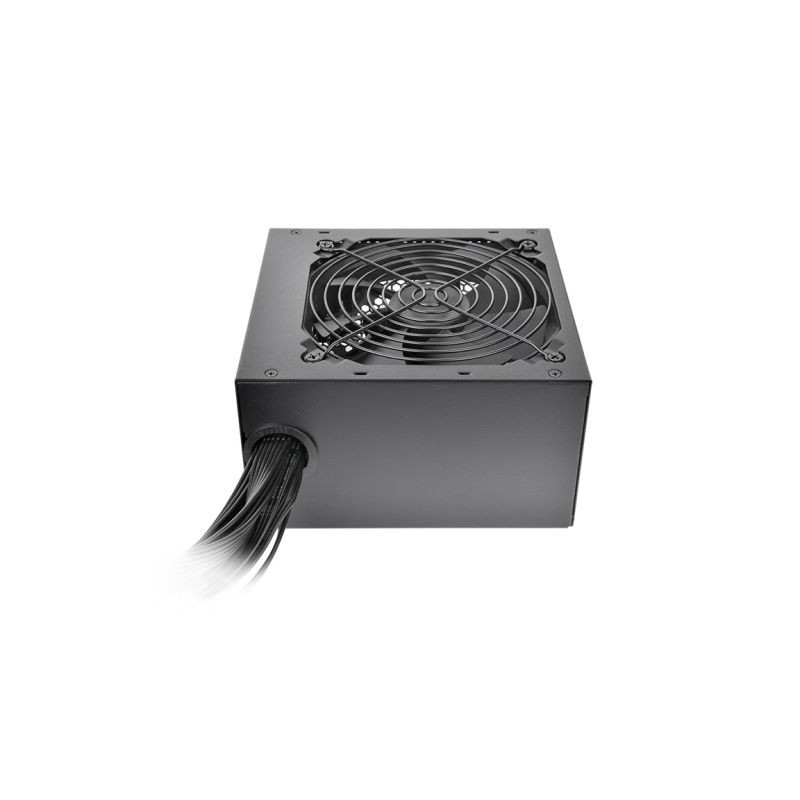

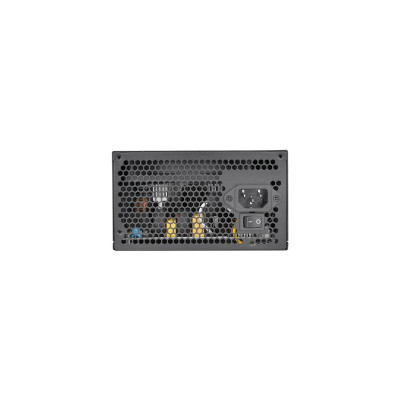

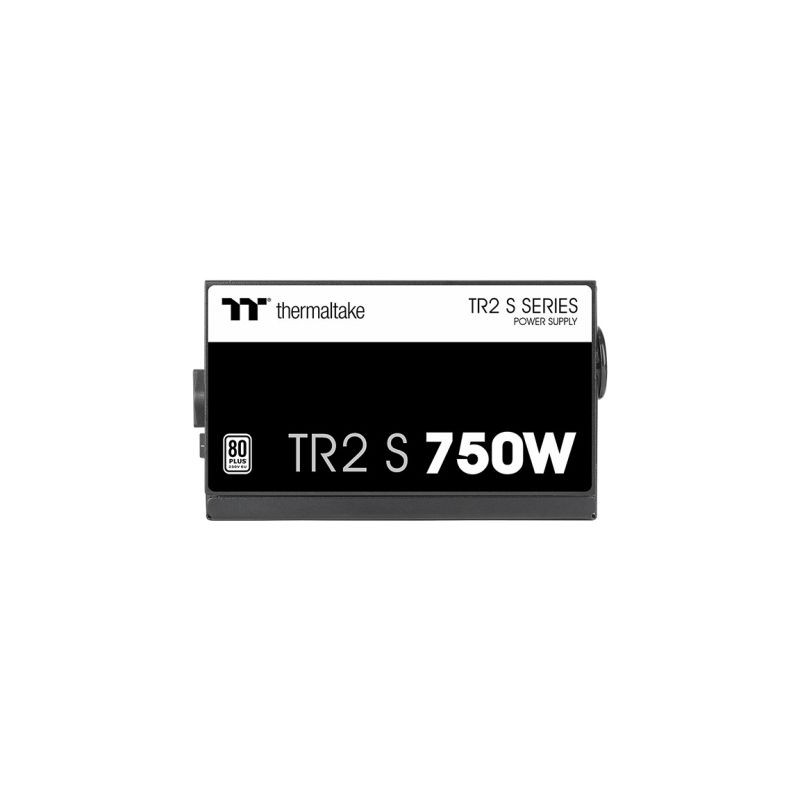

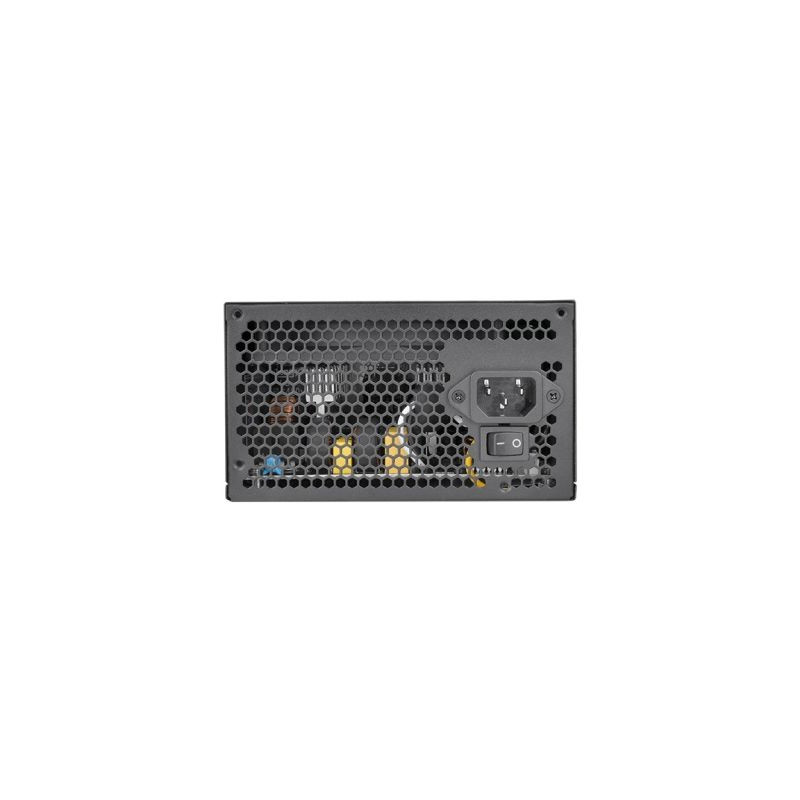

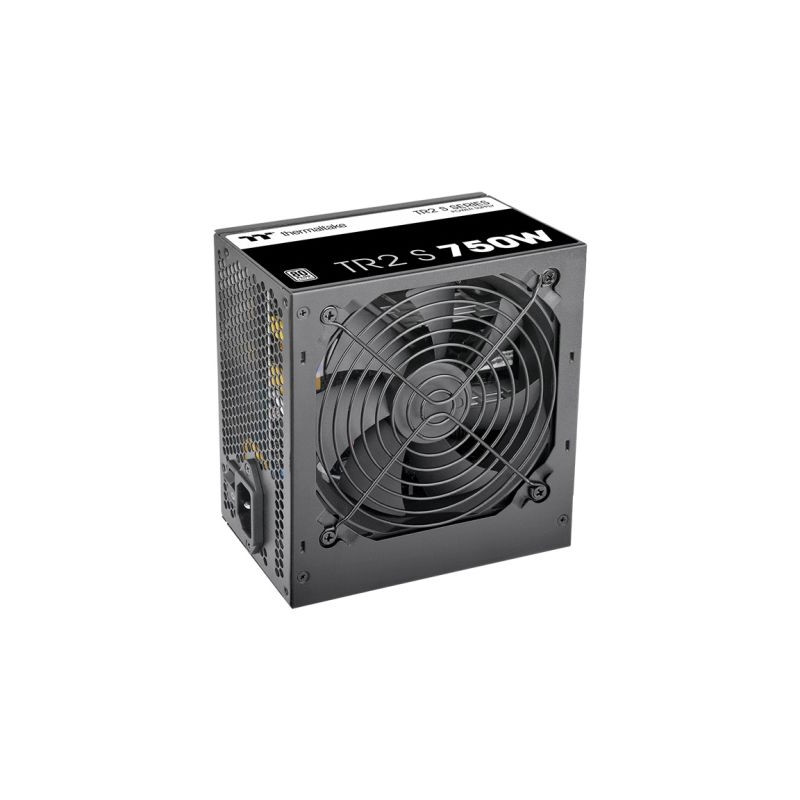

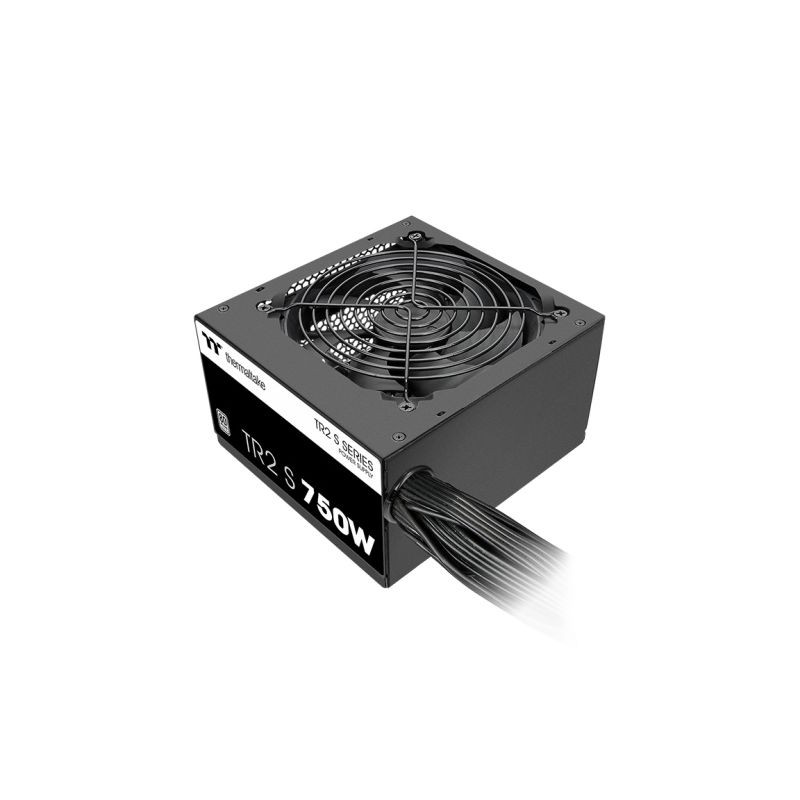

Thermaltake TR2 S 750W ATX 80+ Black

Power
Combined Current (+5V)
100 W
Combined Current (+5Vsb)
12.5 W
Power Factor Correction (PFC) Filter
Active
Combined Current (+12V)
750 W
Max. Output Current (+5Vsb)
2.5 A
AC Input Voltage
220 - 240 V
Hold Time
17 ms
Combined Current (+3.3V)
100 W
Max. Output Current (+5V)
18 A
Total Power
750 W
Max. Output Current (+12V)
62.5 A
Input Current
8 A
Energy Protection Features
Overcurrent, Overload, Overvoltage, Overheating, Short Circuit, Undervoltage
Max. Output Current (+3.3V)
18 A
Combined Current (-12V)
3.6 W
Max. Output Current (-12V)
0.3 A
AC Input Frequency
50 Hz
Connections and Interfaces
Cable Type
Non-modular
CPU Connector (4+4 pin)
Yes
Motherboard Connector
20+4 pin ATX
PCI Express Power Cable Length
50 cm
Number of PCI Express Power Connectors 6+2 pin
2
CPU Power Cable Length
65 cm
SATA Power Cable Length
500 mm
Number of SATA Power Connectors
4
Number of Molex Connectors 4 pin
4
Motherboard Power Cable Length
60 cm
Peripheral (Molex) Power Cable Length
500 mm
Performance
Bearing Type
Hydraulic
80 Plus Certification
80 PLUS
Power Supply Unit (PSU) Form Factor
ATX
Mean Time Between Failures (MTBF)
100,000 h
Purpose
PC / Server
Design
Number of Fans
1 Fan
Cooling
Active
Fan Diameter
12 cm
Product Color
Black
On/Off Switch
Yes
Operating Conditions
Operating Temperature
5 - 40 °C
Storage temperature range
-40 - 55 °C
Operating relative humidity
10 - 95%
Weight and dimensions
Height
86 mm
Width
150 mm
Depth
140 mm
Packaging information
Packaging type
Box
