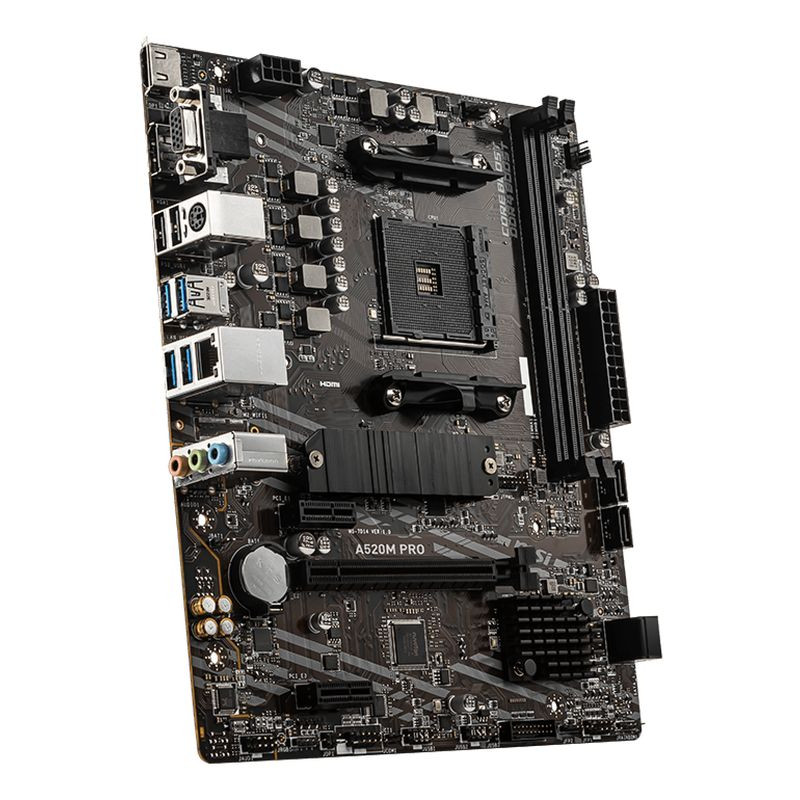

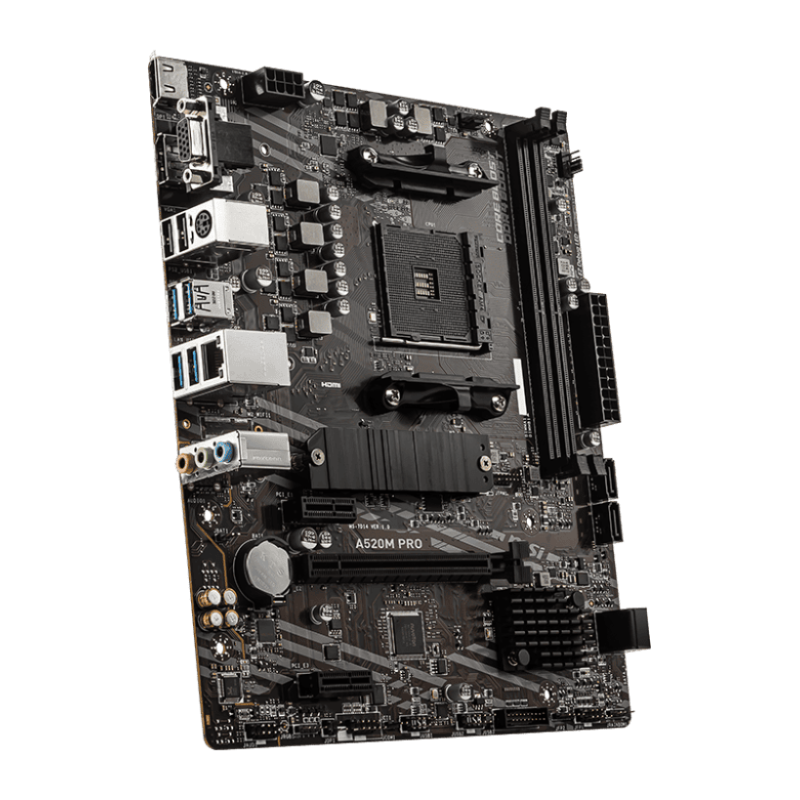

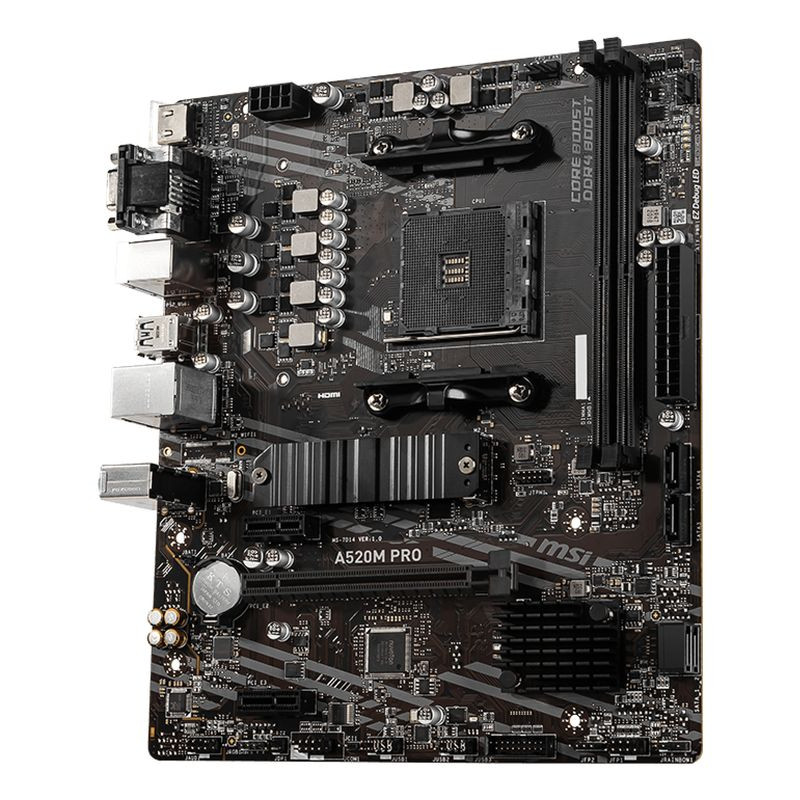

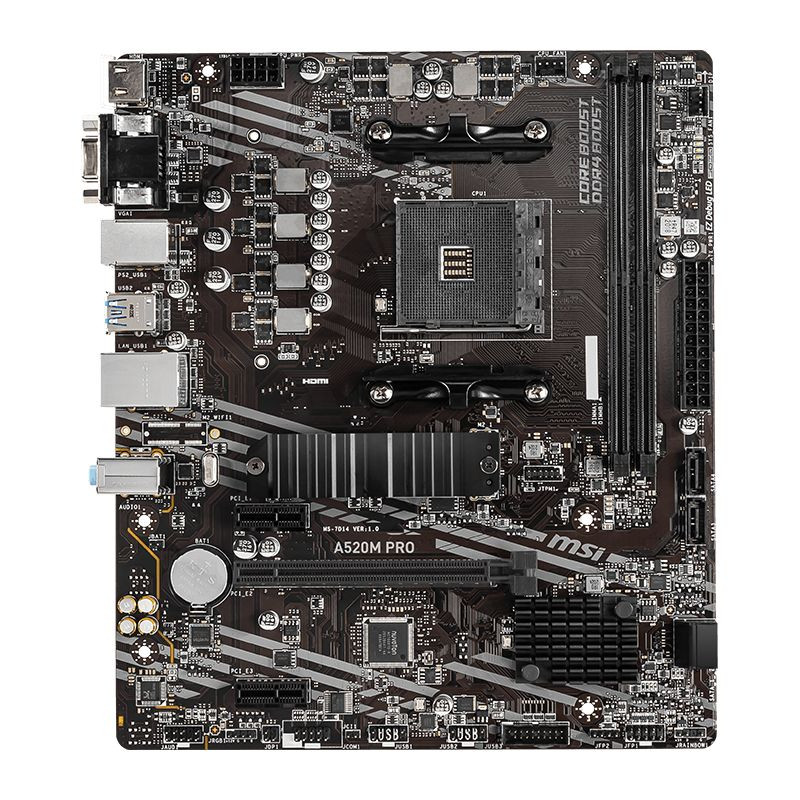

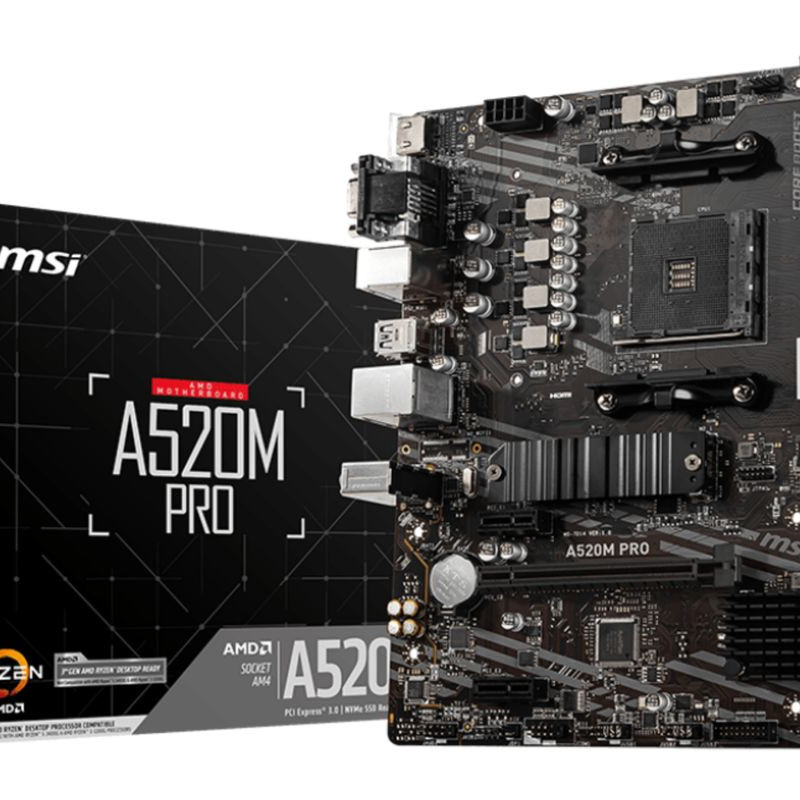

MSI A520M Pro (A520,AM4,mATX,DDR4)

Processor
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processors
AMD Ryzen 3000 Series
Maximum Number of SMP Processors
1
Memory
Supported Memory Speeds
1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4466 MHz
Maximum RAM
64 GB
Unbuffered Memory
No
Memory Type
DIMM
Supported Memory Types
DDR4 SDRAM
Number of Memory Slots
2
Memory Channels
Dual Channel
ECC Compatibility
ECC & Non-ECC
Memory Controller
Supported Storage Drive Interfaces
PCI Express 3.0, SATA
Supported Storage Drives
HDD & SSD
RAID Level
0, 1, 10
Graphics
Maximum Resolution
4096 x 2160 pixels
Internal I/O Ports
Total Number of SATA Ports
4
Chassis Intrusion Connector
Yes
Number of Parallel ATA Connectors
0
ATX Power Connector (24-pin)
Yes
SATA III Ports
4
Number of USB 2.0 Ports
2
SATA II Ports
0
Front Panel Connectors
Yes
Number of Chassis Fan Connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Ports
1
USB 3.2 Gen 2 (3.1 Gen 2) Ports
0
Front Panel Audio Connectors
Yes
CPU Fan Connectors
Yes

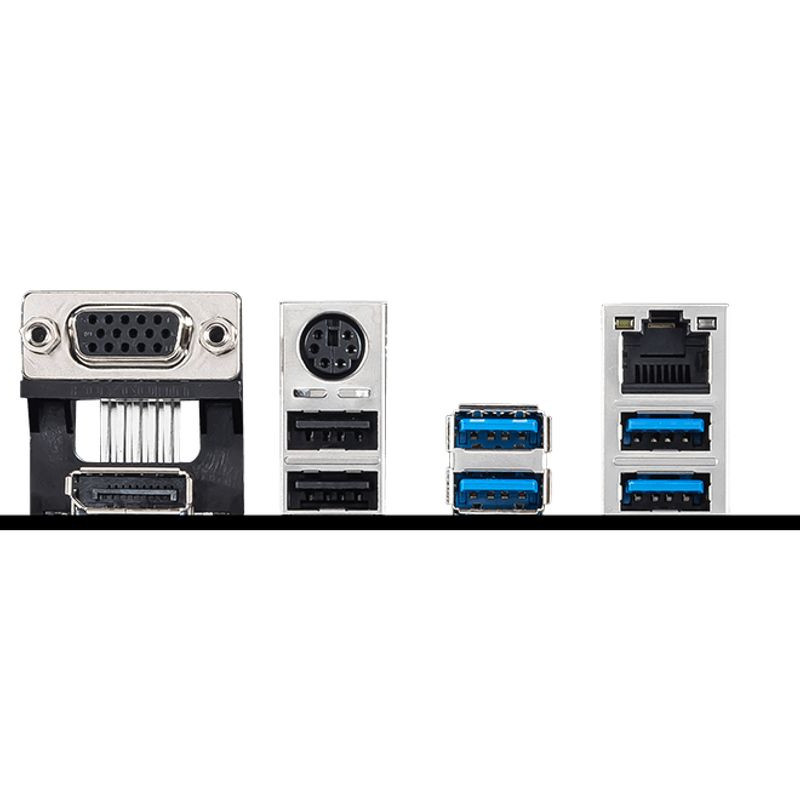

Rear I/O Ports
Microphone Input
Yes
Number of eSATA Ports
0
USB 3.2 Gen 2 (3.1 Gen 2) Ports C
0
Number of DVI-D ports
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports
0
Number of Ethernet LAN ports (RJ-45)
1
Number of HDMI ports
1
Number of USB 2.0 ports
2
Number of PS/2 ports
1
Number of VGA (D-Sub) ports
1
Number of DisplayPort ports
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports
4
Network
Ethernet interface type
Gigabit Ethernet
WLAN
No
LAN controller
Realtek 8111H
Ethernet/LAN
Yes
Features
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Component for
PC
Number of mounting holes
6
Audio chip
Realtek ALC892
Audio Channels
7.1 Channels
Power Source
ATX
Motherboard Chipset
AMD A520
Expansion Slots
PCI Express x16 Slots
1
Number of M.2 (M) Slots
1
PCI Express x1 (Gen 3.x) Ports
2
Logistics Data
Commodity Tariff Number (HS)
84733020
Weight and Dimensions
Height
65 mm
Width
244 mm
Depth
210 mm
Other Features
Weight
698 g
